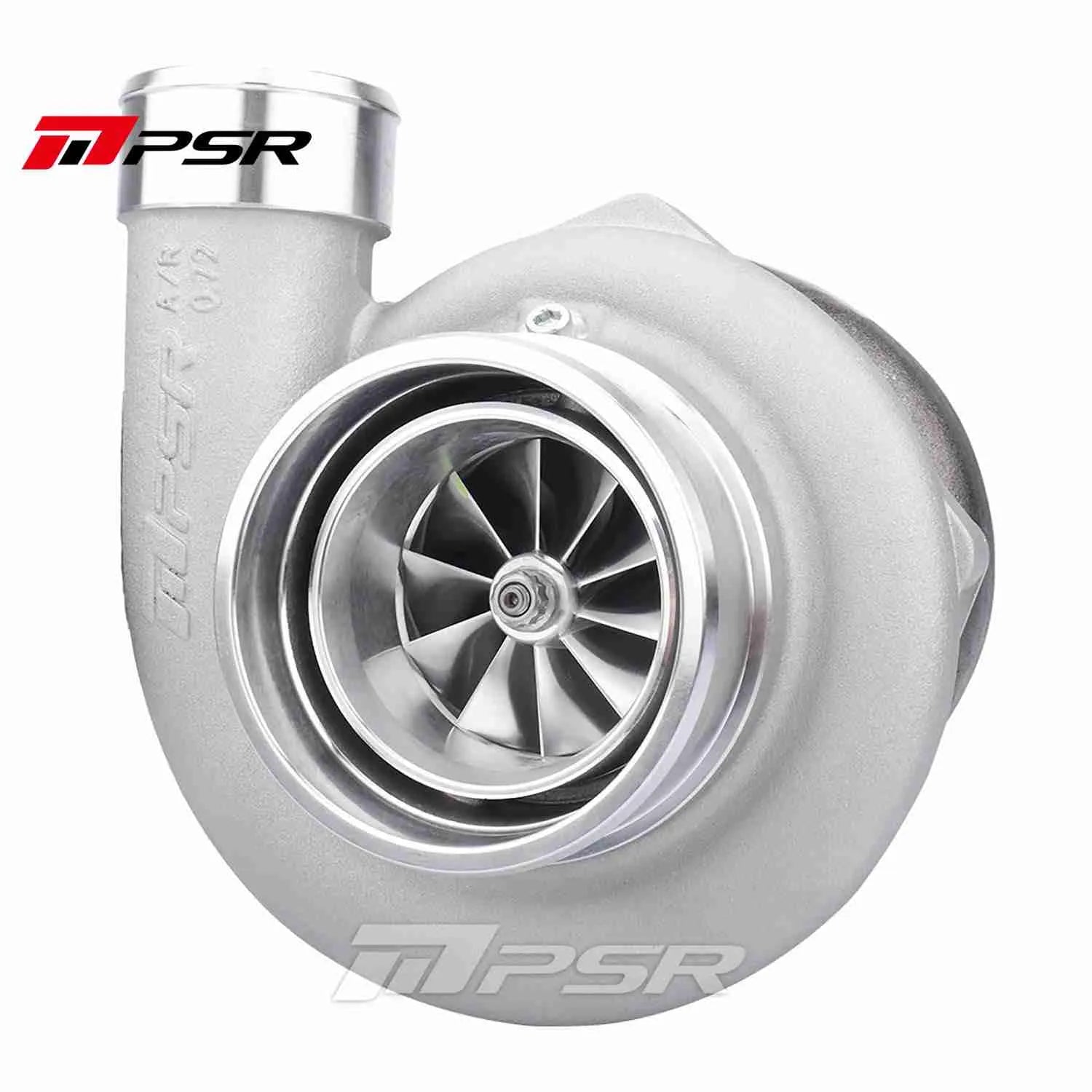

Pulsar PSR3582 Gen2 Dual Ball Bearing Turbo T4 0.82 A/R

Pulsar Turbo Systems PSR3582 Gen2 is a universal performance turbocharger featuring a rebuildable dual ceramic ball bearing system, billet compressor wheel, and Inconel turbine wheel. This exact configuration is rated at approximately 880 FWHP with a maximum airflow of ~85 lb/min.

Product Specifications

• Manufacturer: Pulsar Turbo Systems
• Manufacturer Part Number: 102135272
• Series: PTX Gen2
• Turbo Model: PSR3582 Gen2
• Bearing System: Dual Ceramic Ball Bearing
• Power Rating: 880 FWHP
• Maximum Airflow: ~85 lb/min
• Compressor Wheel: 66 x 82 mm
• Compressor Wheel Design: 10-blade Gen2 billet compressor wheel with extended tapered tip
• Turbine Wheel: 68 x 62 mm
• Turbine Wheel Design: Inconel 713C Gen2 9-blade turbine wheel
• Compressor Inlet: 4" hose
• Compressor Outlet: 2.5" hose
• Turbine Inlet: T4 open
• Turbine Outlet: 3" V-band (3.55" OD)
• Turbine Housing: 0.82 A/R
• Wastegate: External wastegate configuration
• Oil Feed: -4 AN to oil restrictor
• Oil Drain: Standard T3 flange
• Water Ports: M14 x 1.5

Fitment: Universal performance application. Professional installation and supporting fuel, engine-management, oil/coolant and exhaust-system modifications may be required. Verify flange, A/R, inlet/outlet dimensions and wastegate configuration before ordering.

Pulsar recommends water cooling for improved turbocharger durability.
