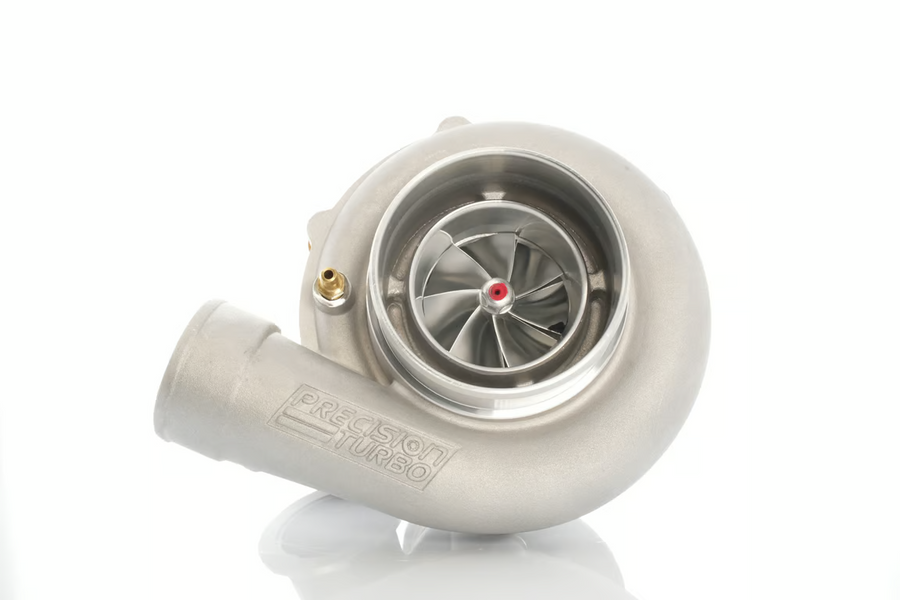

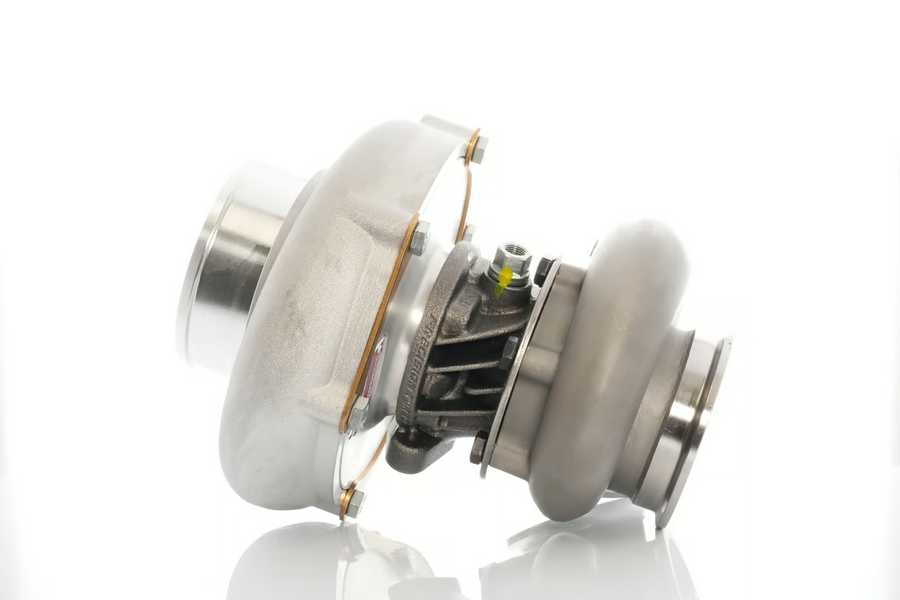

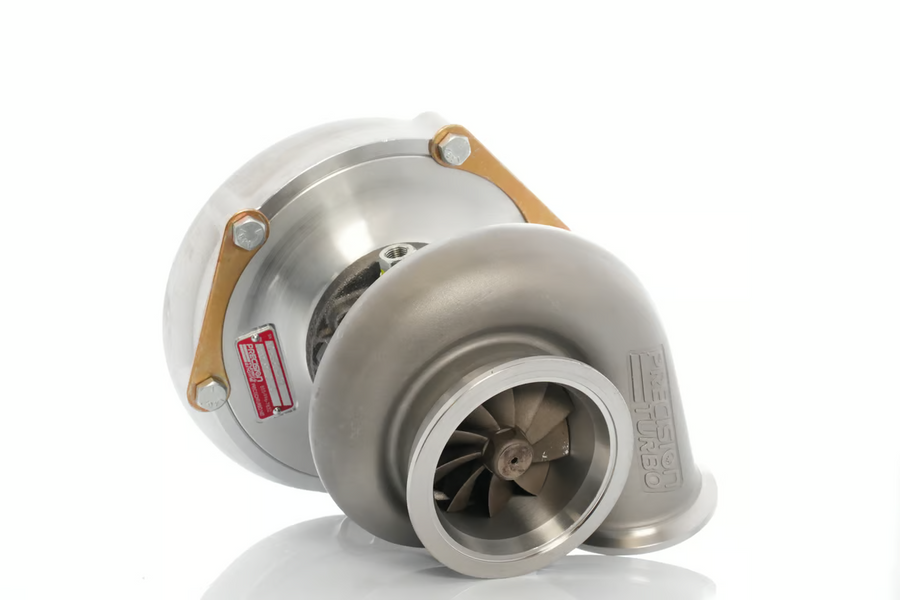

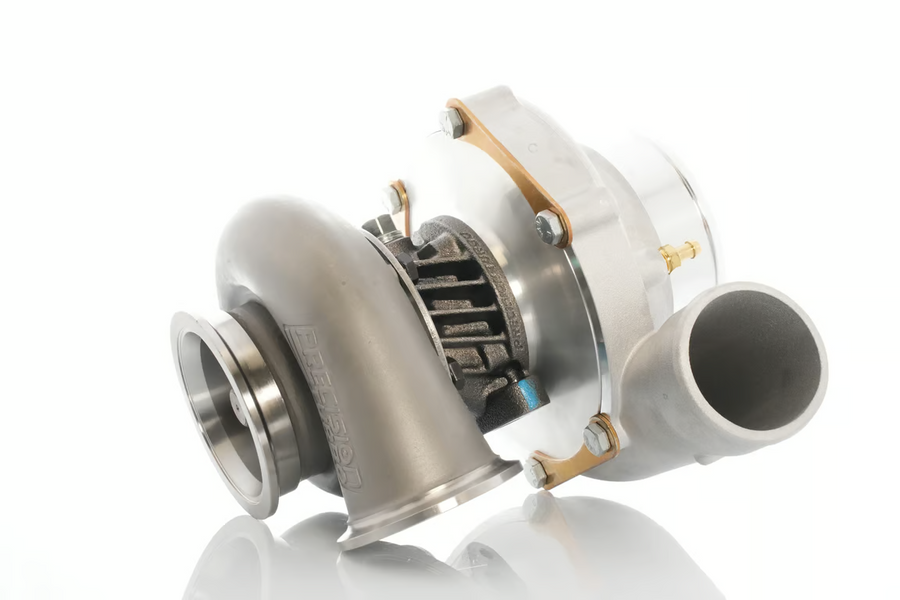

Precision Turbo & Engine (PTE) PT5658 .58 A/R Next Gen Turbo is engineered to deliver up to 770 horsepower making it an excellent choice for high-performance street and race applications
Next Gen SCP Cover
Part # 50605406199
The Next GEN 56mm turbo is set to replace the GEN 2 55 and Gen 2 58 turbos. With a state-of-art 56mm Next GEN compressor wheel machined from a 2618 aluminum forging, the Next GEN 56 will be available in 5658 and 5662 standard rotation configurations. We are also offering a Next GEN 5658 reverse rotation version. The Next GEN 56 is proven to provide exceptional performance
hp rating: 770 HP
generation: T4 OPEN 4-BOLT
cover style: SCP-COVER
Turbine housing outlet: v-band
compressor inducer: 56.0 MM
Exclusive NEXT GEN 56mm CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
Compressor cover enhancements provide 10% more flow over the previous GEN 2 cover
Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
High flow/ highly efficient 58mm & 62mm CEA turbine wheel
5658 turbo also available in Reverse Rotation
FEATURES
New Compressor Wheel Inducer: 55.98 mm
New Compressor Wheel Exducer: 76.20 mm
New Compressor Wheel Tip: 80.40 mm
Max Shaft Speed: 180,460 rpm
