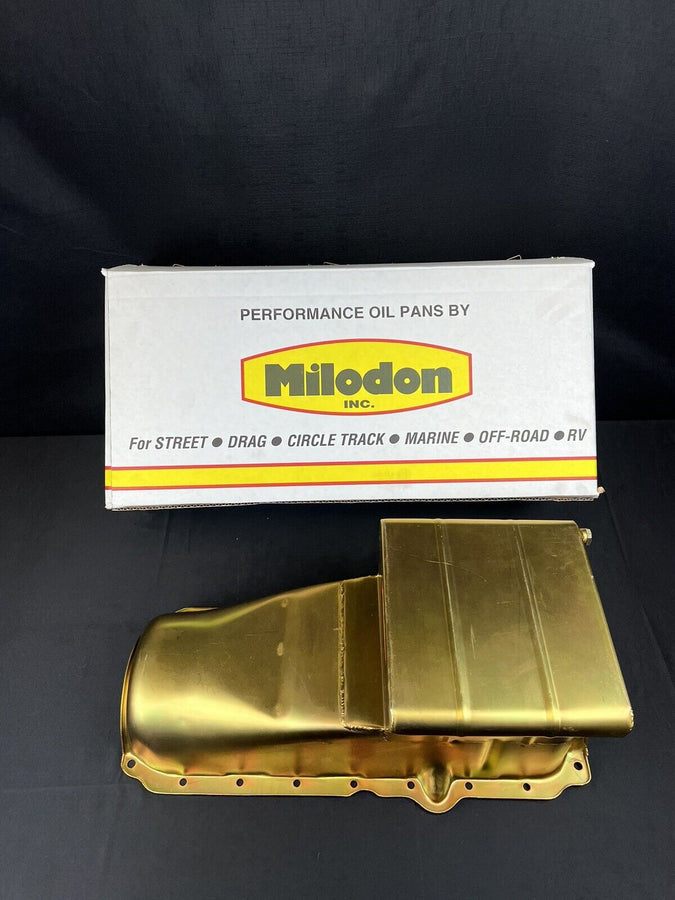

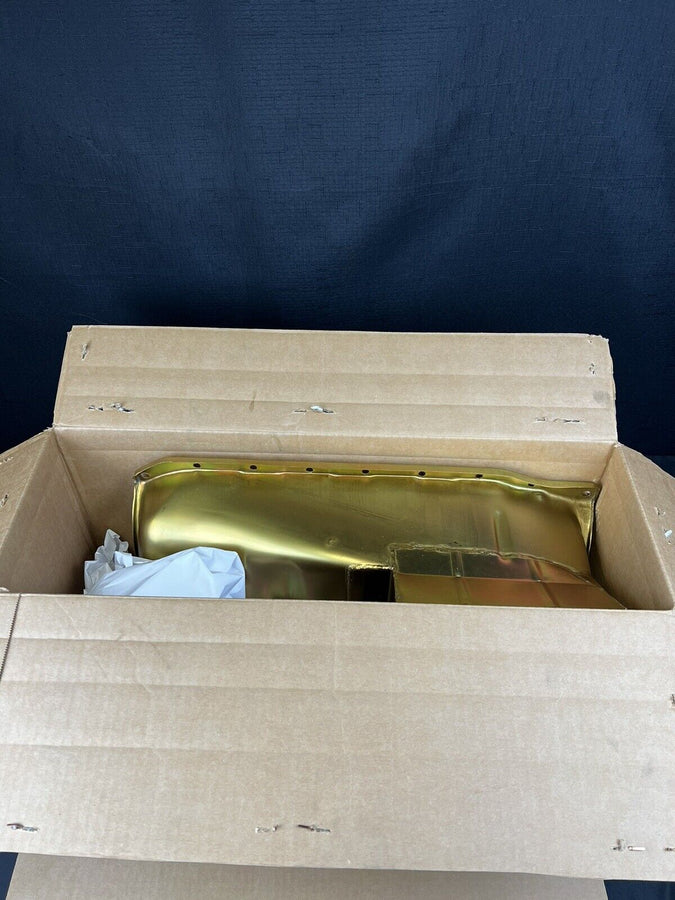

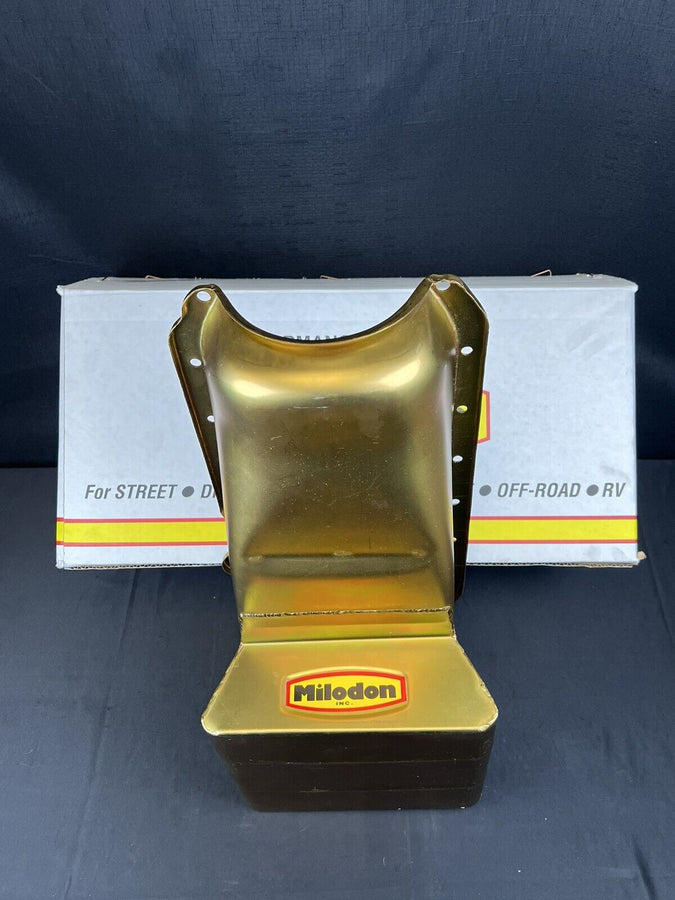

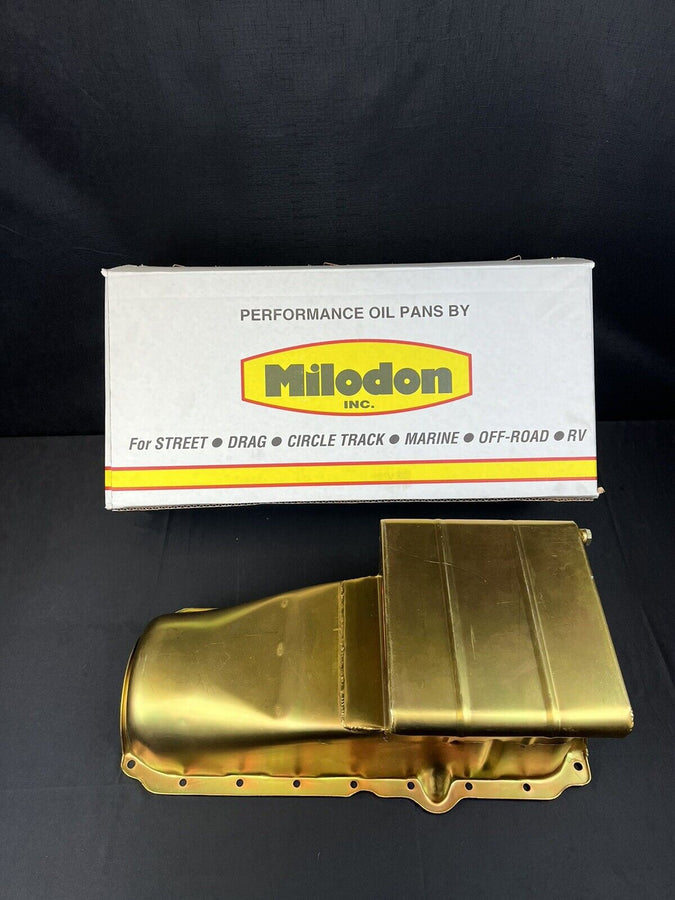

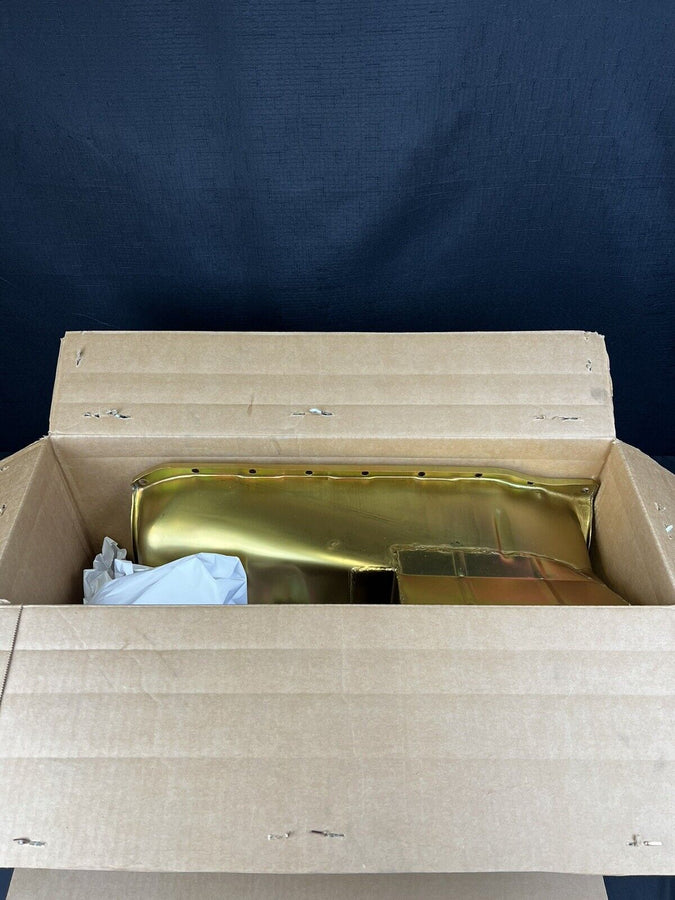

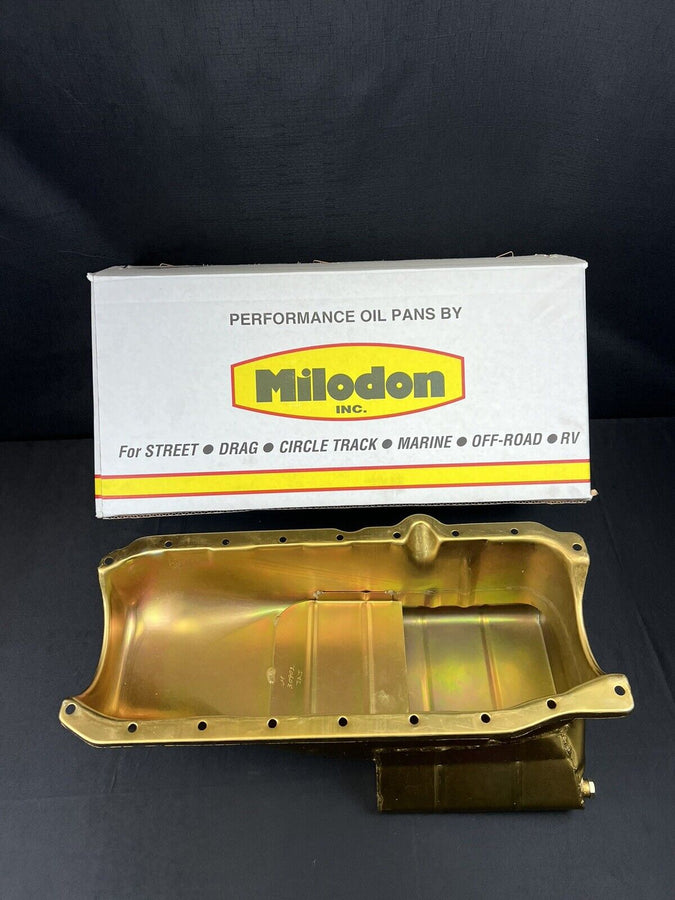

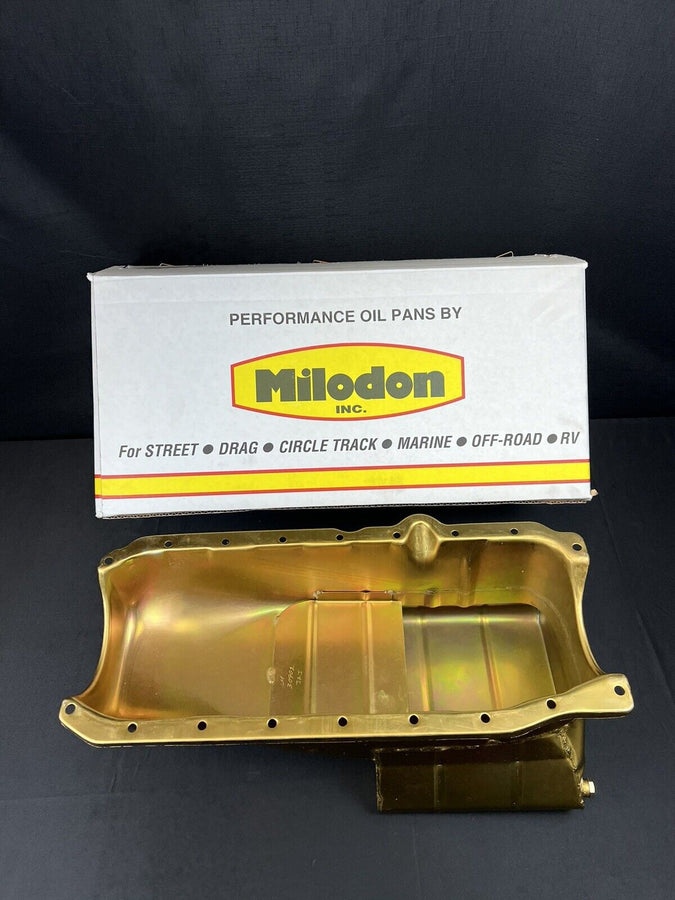

Milodon 30902 Small Block Chevy Oil Pan
$299.99
Small Block Chevy Oil Pan 1986-Up Small Block Low Profile Right Hand Dipstick 7-Quart Capacity Plus Filter 8-1/4'' Deep Sump - The Low Profile ''triangulated'' sump design that was originally developed by Milodon over two decades ago gives both adequate ground clearance, as well as sufficient oil capacity for any kind of high performance use. This pan is equally...
Tags:
Small Block Chevy Oil Pan
1986-Up Small Block
Low Profile
Right Hand Dipstick
7-Quart Capacity Plus Filter

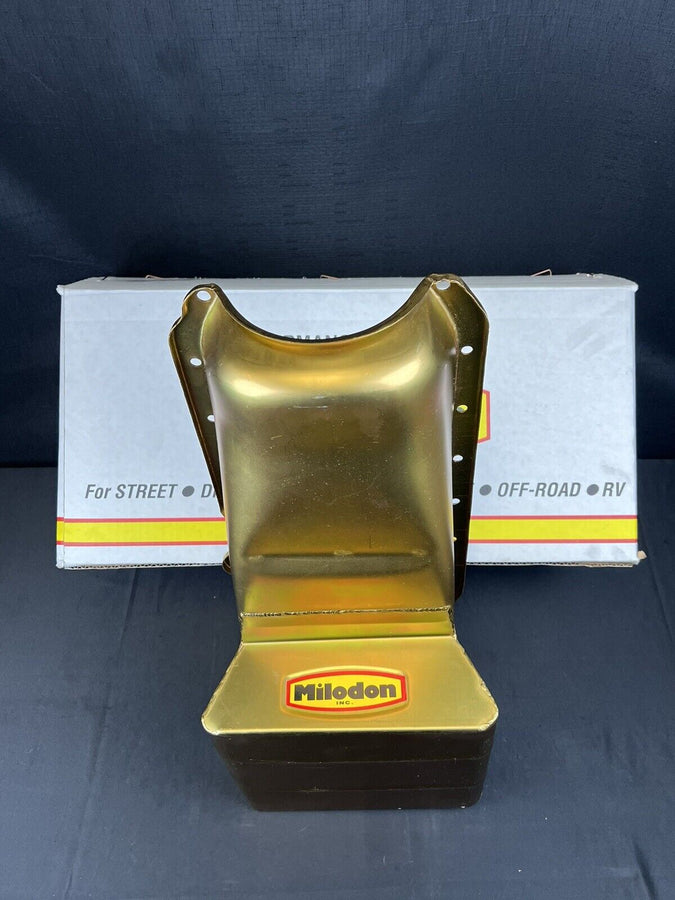

8-1/4'' Deep Sump - The Low Profile ''triangulated'' sump design that was originally developed by Milodon over two decades ago gives both adequate ground clearance, as well as sufficient oil capacity for any kind of high performance use.
This pan is equally suited for use on the street or strip. It will fit all Chevy chassis, except 1962-67 Nova. Oil control baffles 100 subdue oil movement and provides increased horsepower.
Use oil pump pickup 697-18311 with stock Chevy, Melling 689-M55 or Milodon oil pump pickup 697-18314 with 697-18750 pump,
Oil pump shaft 697-23050,
Oil pan gasket 697-40100,
Rear pan baffle 697-32500
Windage tray 697-32100 (solid louvered tray) or 697-32250 (diamond mesh tray),
Windage tray install kit 697-81150,
Dipstick 697-22000.
