Manley Toyota 3.0L 2JZ-GTE Set of 6 Platinum Series Pistons 86.5mm 609105C-6

$1,044.99

  • Brand: Manley
  • Availability: 1 In Stock
  • SKU: IF_E26968C6
  • Barcode:

In Stock & Ready to Ship!Up for sale is a Set of 6 Manley Toyota 3.0L 2JZ-GTE Flat Top Platinum Series Pistons.SET INCLUDES:6 - Piston 6 - Piston Ring Set 6 - Wrist Pin 6 - Spiral Lock SPECS: Bore Diameter 86.50 MM Compression Height 1.338 IN Piston Volume -2.50 CC Weight 354 GR Piston Series Platinum Series Product Type...

Tags:

In Stock & Ready to Ship!

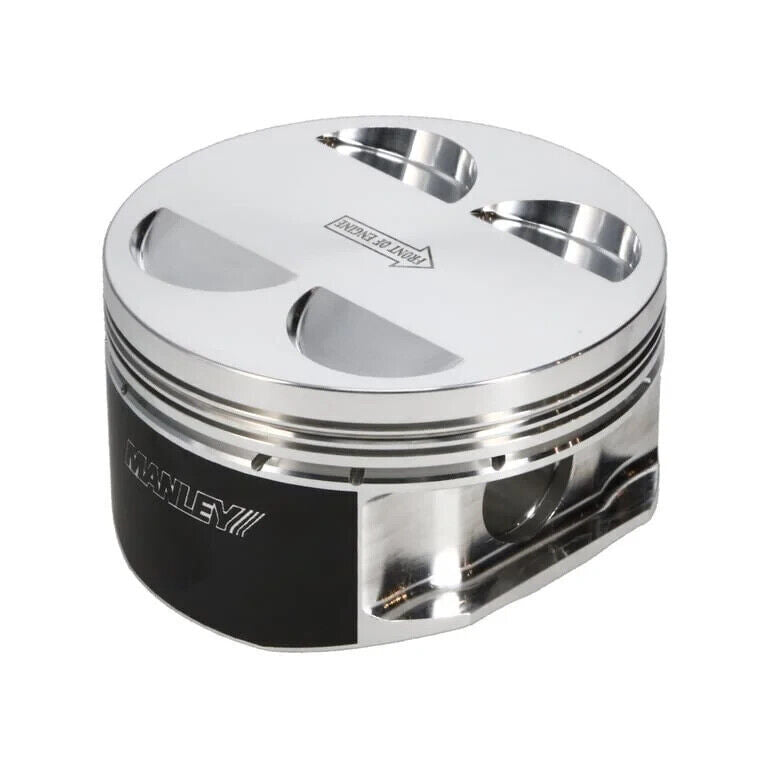

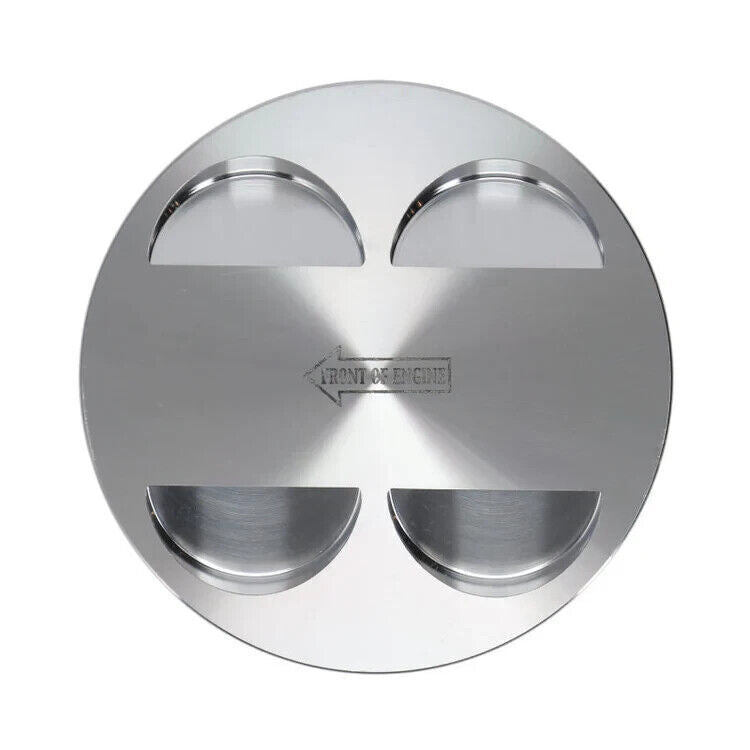

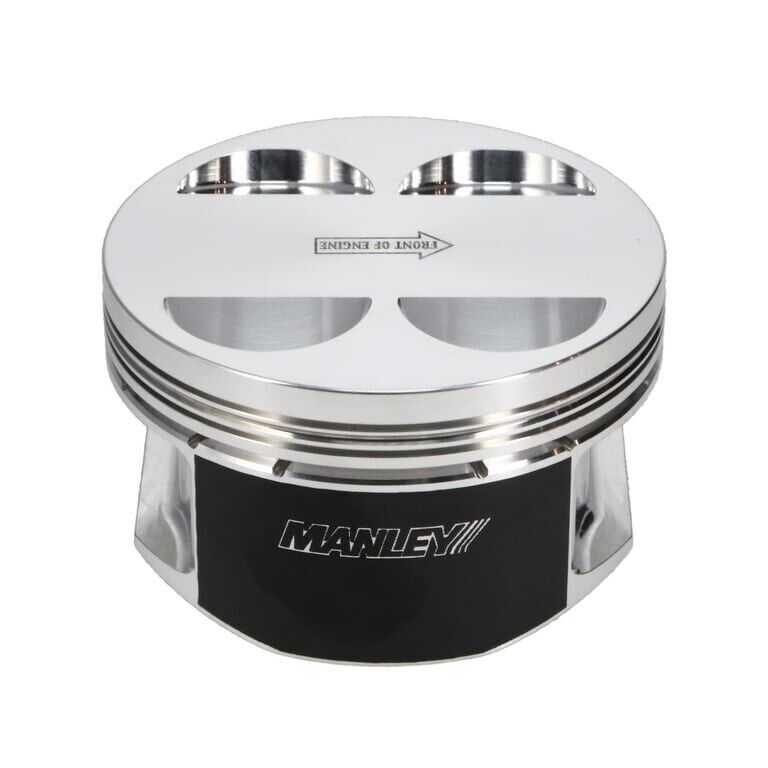

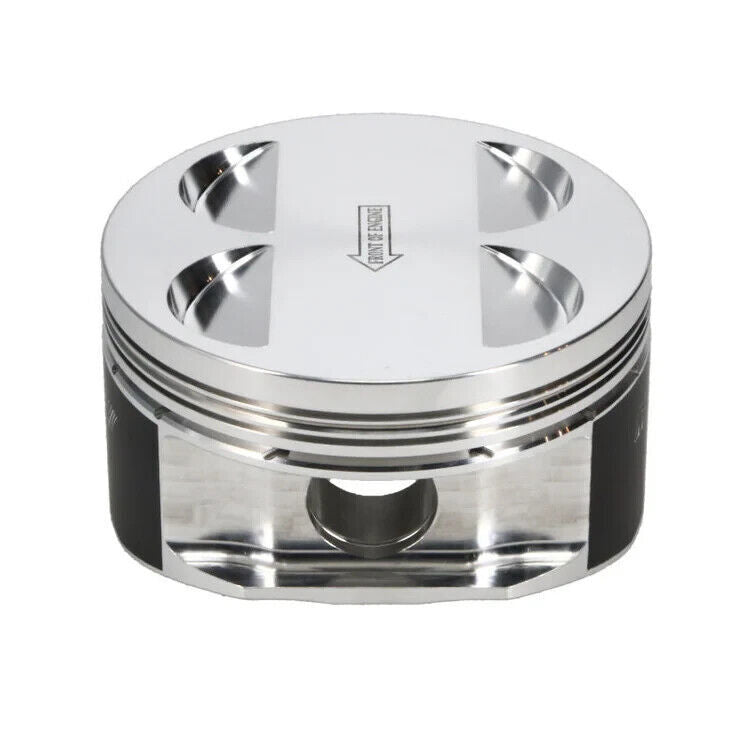

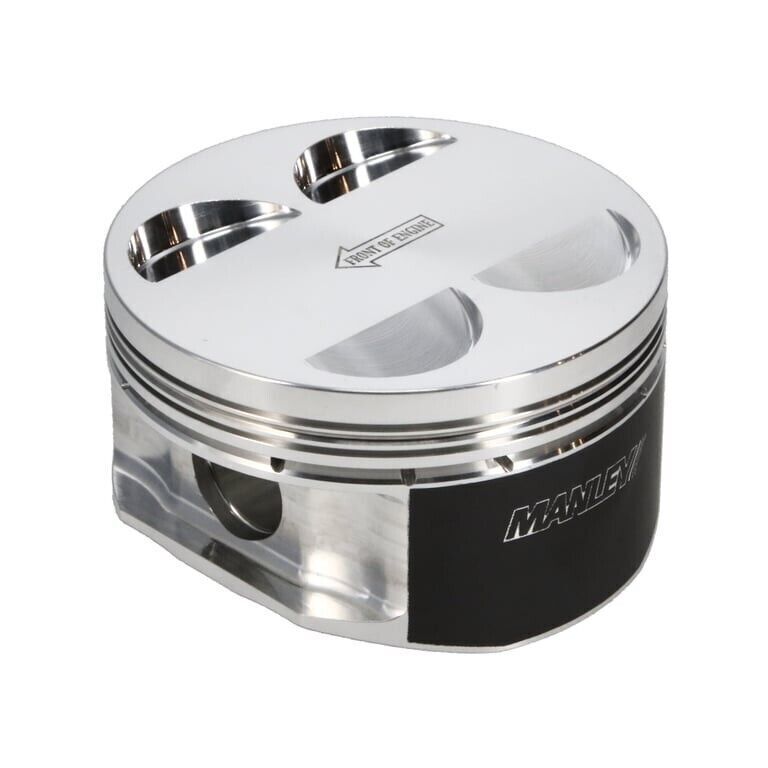

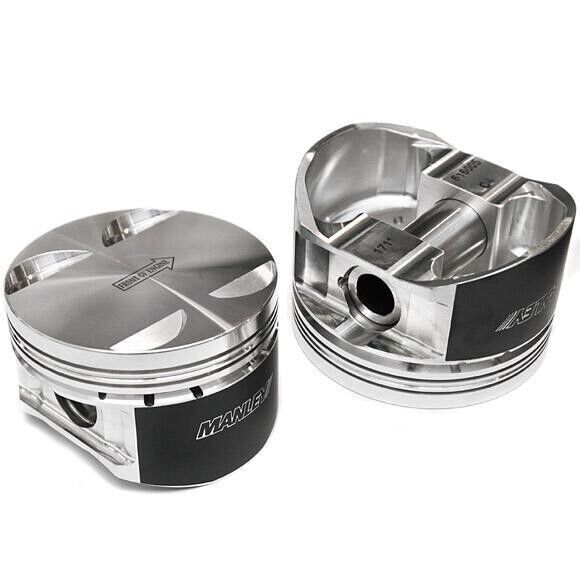

Up for sale is a Set of 6 Manley Toyota 3.0L 2JZ-GTE Flat Top Platinum Series Pistons.

SET INCLUDES:
6 - Piston
6 - Piston Ring Set
6 - Wrist Pin
6 - Spiral Lock

SPECS:
Bore Diameter 86.50 MM
Compression Height 1.338 IN
Piston Volume -2.50 CC
Weight 354 GR
Piston Series Platinum Series
Product Type Engine Piston Kit
Piston Quantity    6
Engine Stroke 86.00 MM
Bore Oversize +0.50 MM
Piston Head Type Flat Top
Compression Ratio 10.00:1 CC
Piston Sub-Series Standard
Engine Fitment     3.0L 2JZ-GTE

Manley’s signature “Platinum Series” pistons are crafted from high-strength 2618 alloy forgings and feature precision-engineered cam and barrel skirt profiles. Select part numbers also include moly skirt coatings and tool steel wrist pins. Professional engine builders and tuners trust Manley pistons for their exceptional durability and performance.

The pistons utilize domestic 2618 alloy forgings, ensuring maximum strength and reliability. Standard Series pistons are equipped with premium chrome moly wrist pins, with select options offering upgrades to 9310 and Turbo Tuff/DLC alloys for enhanced durability. Piston ring lands and grooves are machined to exacting specifications, promoting superior ring seal and increased power output.

Manley pistons are designed with advanced cam and barrel profiles, optimizing power generation while minimizing wear on cylinder walls. Unique fixturing processes enable precise skirt turning and ring groove machining in one operation, ensuring perfect alignment between the skirt and ring grooves.
