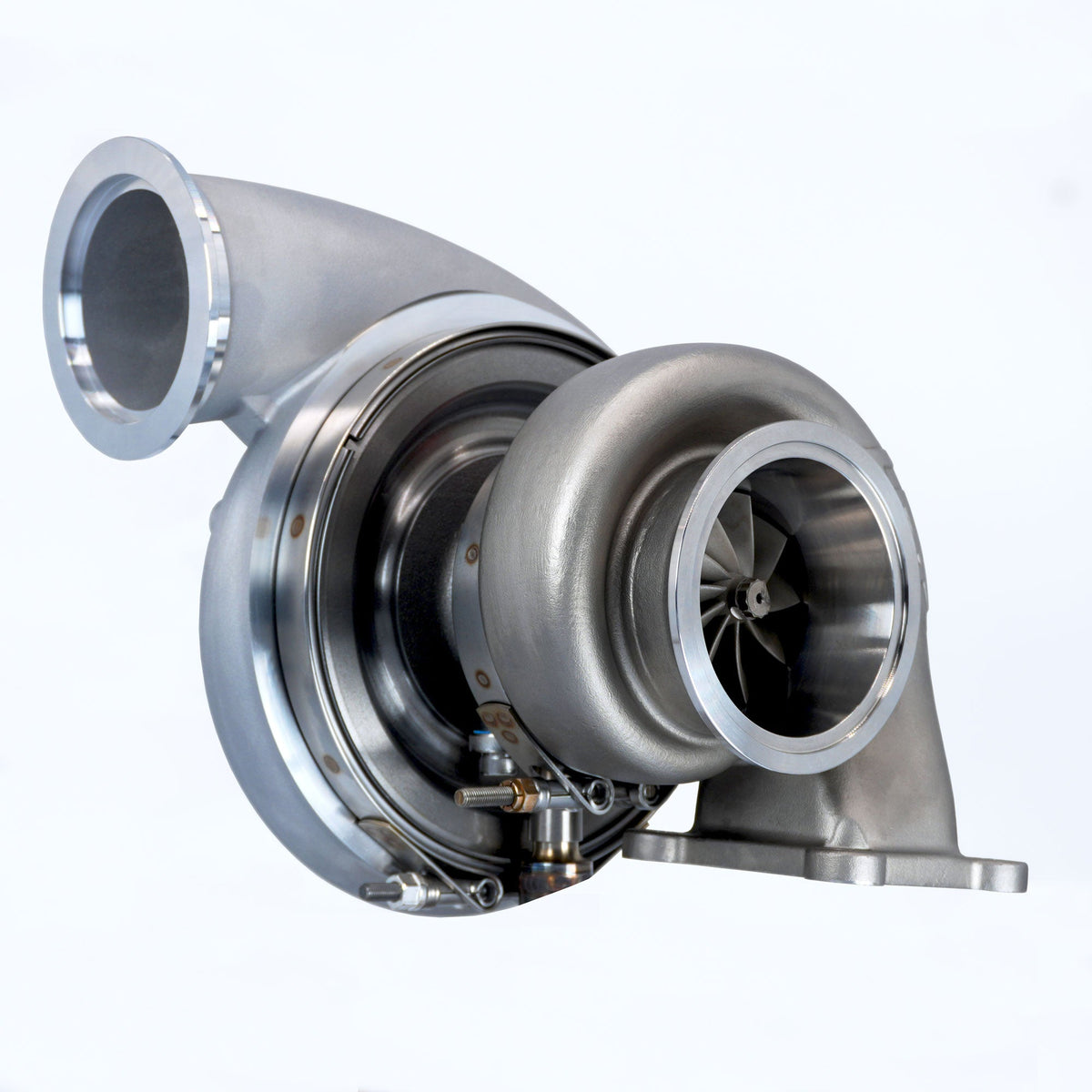

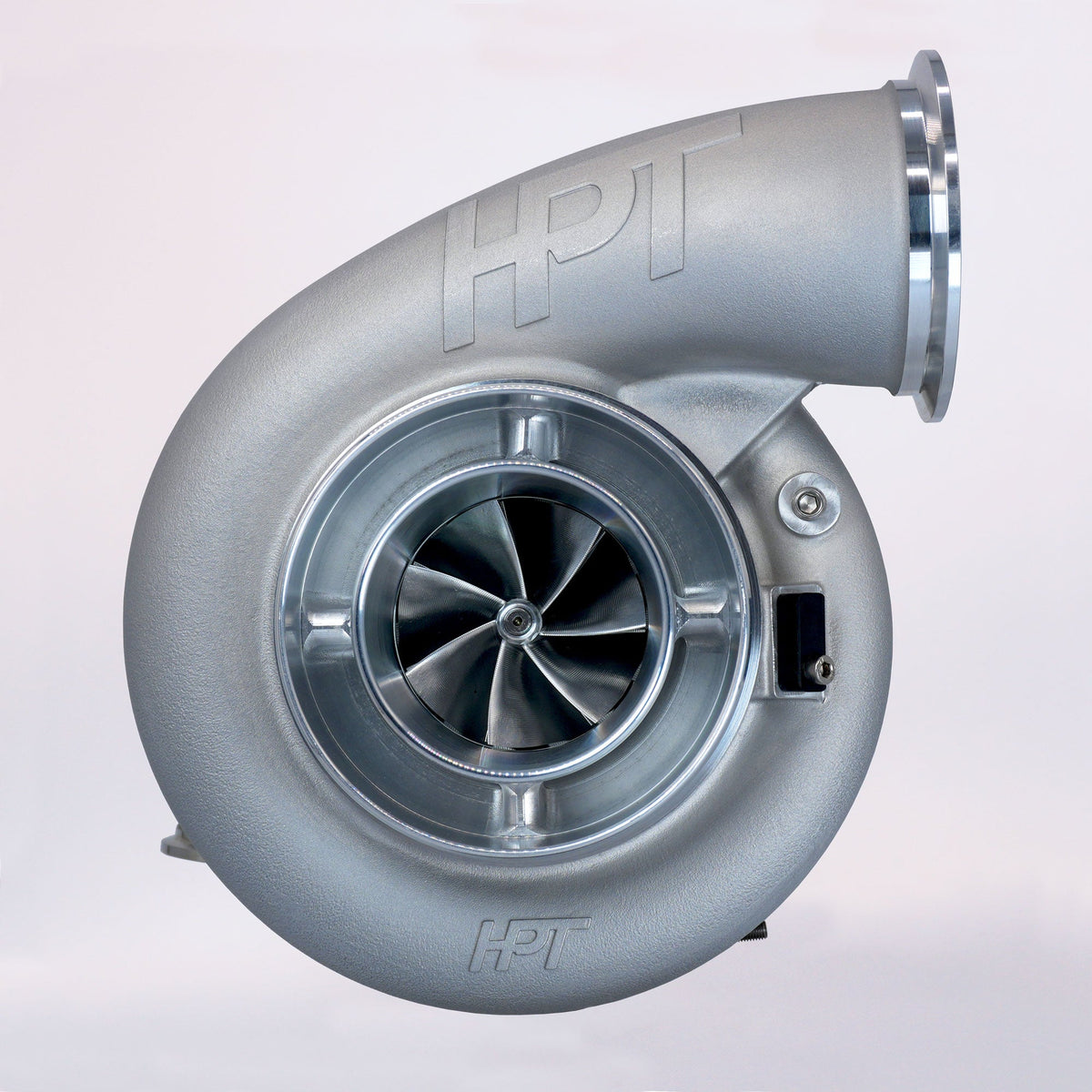

HPT F3R 7880 Reverse Rotation Turbocharger

HPT F3R 7880 Reverse Rotation Turbocharger is part of HPT Turbo's F3R performance turbocharger lineup and is engineered for high-output street, drag, and competition builds.

Manufacturer Part Number: F3R-7880-96VS-RR

HPT combines its Quick Spool Technology with a lightweight rotating assembly and low-resistance ceramic dual ball bearing system to improve transient response without sacrificing high-flow capability.

Key Features

• Series: HPT F3R
• Model: 7880
• Power Capability: Up to approximately 1425 HP
• Rotation: Reverse Rotation
• Bearing System: Ceramic dual ball bearing
• Compressor Wheel: Lightweight 2618 aluminum
• Turbine Wheel: 713C Inconel
• Compressor Cover: Ported-shroud F3R cover
• Compressor Connection: 5" inlet with V-band discharge

Configuration Notes

Reverse-rotation turbine housing configuration.

Application

Universal high-performance turbocharger. Verify manifold flange, turbine housing A/R, compressor inlet/outlet dimensions, exhaust outlet, oiling requirements, and available engine/fuel-system support before ordering.

Racing Use Only: HP Race Brands identifies these turbochargers as racing-use products and not legal for road use.
