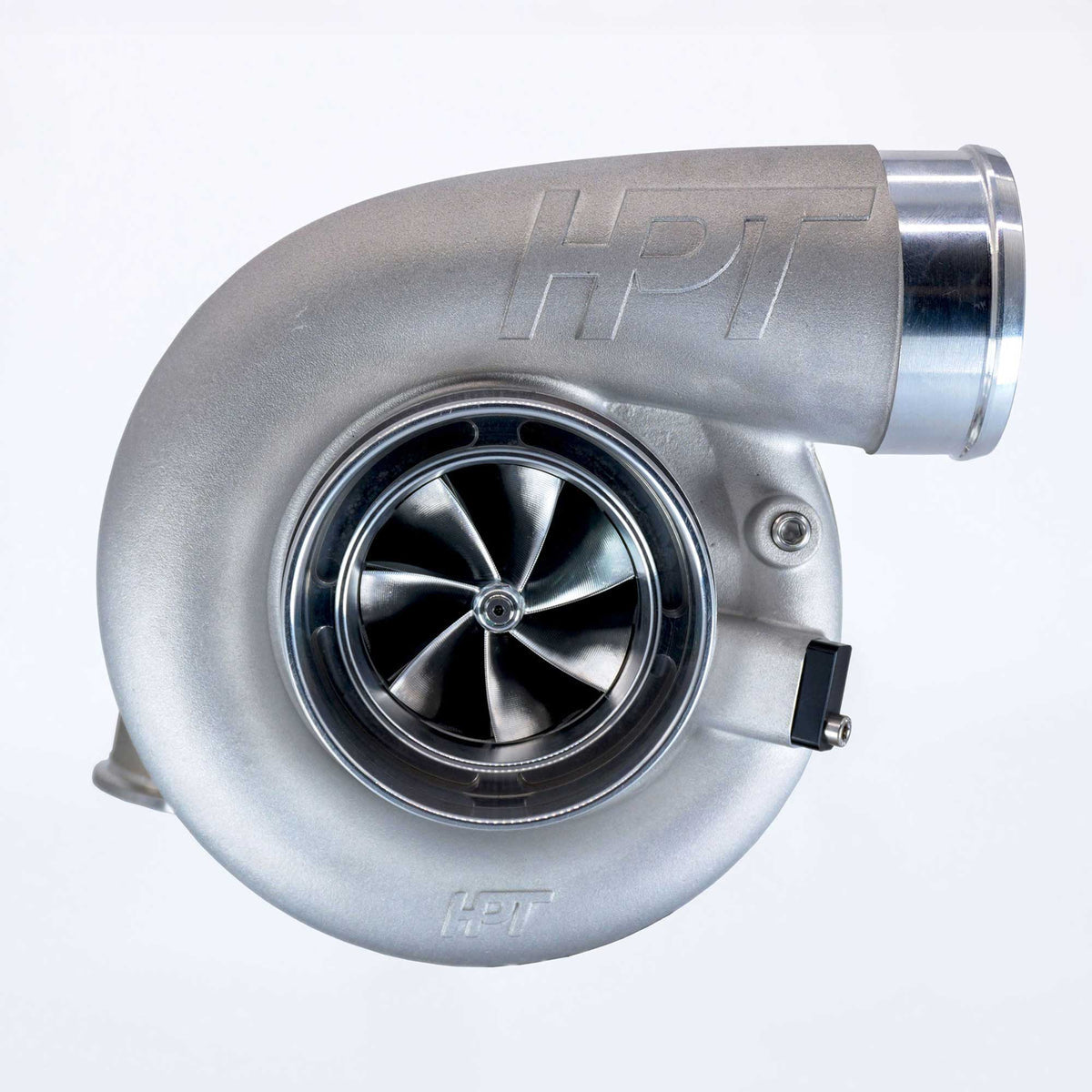

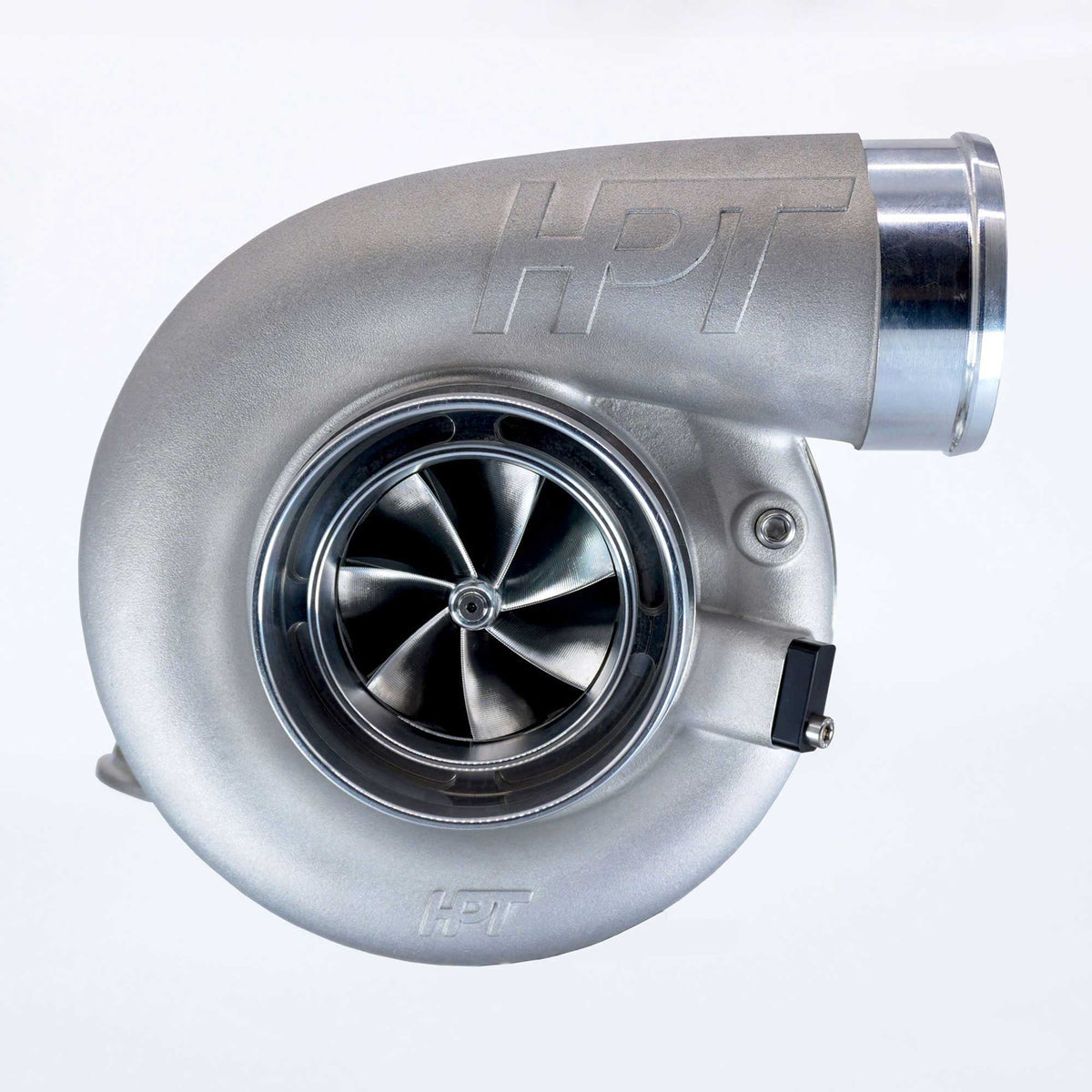

HPT F3 7175 Turbocharger

HPT F3 7175 Turbocharger is part of HPT Turbo's F3 performance turbocharger lineup and is engineered for high-output street, drag, and competition builds.

Manufacturer Part Number: F3-7175-96T4S

HPT combines its Quick Spool Technology with a lightweight rotating assembly and low-resistance ceramic dual ball bearing system to improve transient response without sacrificing high-flow capability.

Key Features

• Series: HPT F3
• Model: 7175
• Power Capability: Up to approximately 1275 HP
• Rotation: Standard Rotation
• Bearing System: Ceramic dual ball bearing
• Compressor Wheel: Lightweight 2618 aluminum
• Turbine Wheel: 713C Inconel
• Compressor Cover: Ported-shroud F3 cover
• Compressor Connection: 4" inlet with 3" discharge
• Turbine Housing: 310 investment-cast stainless steel on F3 configurations

Configuration Notes

Multiple turbine-housing configurations are available from HPT; confirm the desired flange and A/R before ordering.

Application

Universal high-performance turbocharger. Verify manifold flange, turbine housing A/R, compressor inlet/outlet dimensions, exhaust outlet, oiling requirements, and available engine/fuel-system support before ordering.

Racing Use Only: HP Race Brands identifies these turbochargers as racing-use products and not legal for road use.
