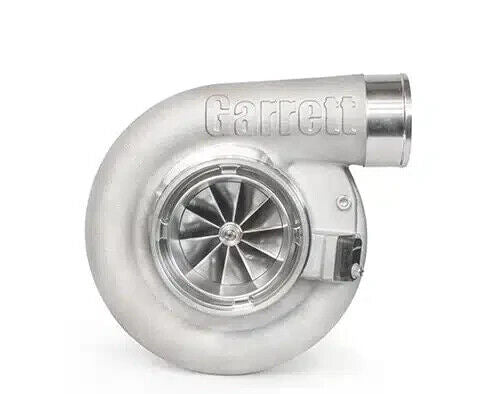

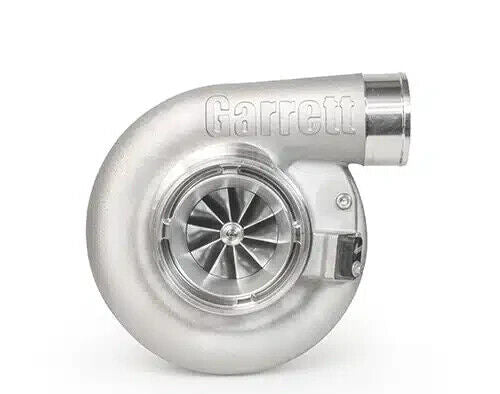

Garrett G-Series G40 Turbochargers 851154-5001S
$2,399.00
Garrett G-Series G40-900 Supercore, with 62mm Inducer Compressor Wheel HP: 500-900 Engine Displacement: 2.0L-6.0L **In stock and Ready to Ship**Compressor: Inducer size 62mm, Exducer size 88mm, Trim 51 A/R 0.80 Turbine: Inducer size 77mm, Exducer 70mm, Trim84 G Series compressor aero increases flow up to 32% (compared to GTX4088R) 62mm compressor inducer size Dual ceramic ball bearing with steel cages G Series turbine aero...
Tags:
Garrett G-Series G40-900 Supercore, with 62mm Inducer Compressor Wheel HP: 500-900 Engine Displacement: 2.0L-6.0L
**In stock and Ready to Ship**
Compressor:
Inducer size 62mm, Exducer size 88mm, Trim 51 A/R 0.80 Turbine: Inducer size 77mm, Exducer 70mm, Trim84
G Series compressor aero increases flow up to 32% (compared to GTX4088R) 62mm compressor inducer size Dual ceramic ball bearing with steel cages
G Series turbine aero increases flow 16% (compared to GTX4088R)
Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
Lightweight aluminum backplate
Fully machined speed sensor and pressure ports
Water fittings included with super core
Stainless steel turbine housings available with T4 twin scroll inlet
T4 turbine housing outlet V-Band dimension (117.4mm | 4.622OD) is equal to existing GTX42, GTX45 and G42 models G40 Turbine Housing Kit Options Part Number A/R Inlet Outlet Wategate Divided 757707-0027 0.85 V-Band V-Band Free Float N 757707-0028 0.95 V-Band V-Band Free Float N 757707-0029 1.06 V-Band V-Band Free Float N 757707-0030 1.19 V-Band V-Band Free Float N 757707-0032 0.85 T4 T4 Free Float Y 757707-0033 0.95 T4 T4 Free Float Y 757707-0034 1.06 T4 T4 Free Float Y 757707-0035 1.19 T4 T4 Free Float Y Super core and turbine kit sold individually.
