$1,162.70

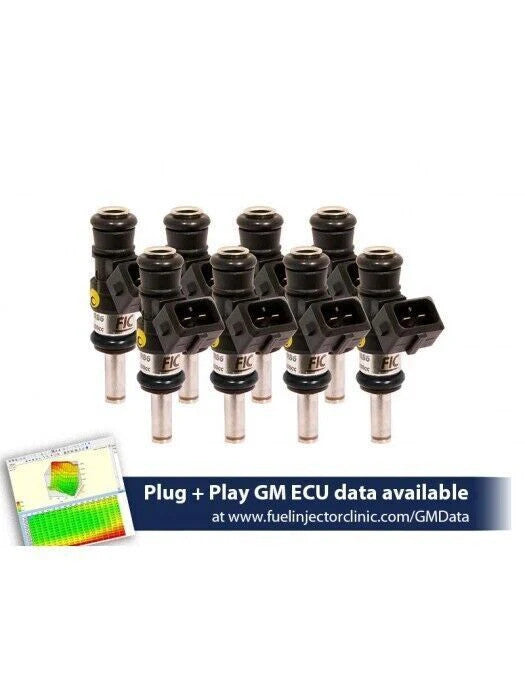

6.2 Truck Motors ('09-'13) Fuel Injector Clinic Injector Set: 8x1200cc/min (110lbs/hr) at 3 bar (43.5psi) fuel pressure and 130lbs/hr (1350cc/min) at OE 58psi (4 bar) fuel pressure. Saturated / High Impedance Injectors. Includes pigtails PGTJETR8 or add Plug & Play adaptors PADPJtoU8. Plug and Play GM ECU Data available on our website.This injector set is precisely matched using Fuel Injector...
Tags:
6.2 Truck Motors ('09-'13) Fuel Injector Clinic Injector Set: 8x1200cc/min (110lbs/hr) at 3 bar (43.5psi) fuel pressure and 130lbs/hr (1350cc/min) at OE 58psi (4 bar) fuel pressure. Saturated / High Impedance Injectors. Includes pigtails PGTJETR8 or add Plug & Play adaptors PADPJtoU8. Plug and Play GM ECU Data available on our website. This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today. This set of injectors requires you to change the injector plug on the wiring harness in your car. This can be done by soldering in the pigtails (included with purchase) to replace the plugs currently on your harness, or you can choose to purchase the optional plug-n-play adaptors which will convert from the type of plugs on these injectors to the plugs on your harness without any need for cutting or soldering.
Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid.
Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.
Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. If you are using aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.
Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.
This plug conversion is made necessary because FIC always chooses to provide brand new, unused injectors for its performance applications. We do not believe that increasing the chance of a failure due to using remanufactured or core program based injectors is ever warranted.
Fitment Specifications
Bottom O-ring Outer Diameter
14mm
Cylinder Quantity
8
Height
38mm
Impedance
High-Z
Plug and Play Adaptor
PADPJtoU8
Top O-ring
14mm
Horsepower supported
Engine Aspiration
NA or supercharged
Fuel Pressure
58
WHP on E85 at 43psi 90%DC NA
1076.04
WHP on E85 at 43psi 90%DC Supercharged
978.22
WHP on E85 at 43psi 90%DC Turbo
896.70
WHP on E85 at 58psi 90%DC NA
1242.83
WHP on E85 at 58psi 90%DC Supercharged
1129.85
WHP on E85 at 58psi 90%DC Turbo
1035.69
WHP on Gas at 43psi 90%DC NA
1398.86
WHP on Gas at 43psi 90%DC Supercharged
1271.69
WHP on Gas at 43psi 90%DC Turbo
1165.71
WHP on Gas at 58psi 90%DC NA
1615.68
WHP on Gas at 58psi 90%DC Supercharged
1468.80
WHP on Gas at 58psi 90%DC Turbo
1346.40
