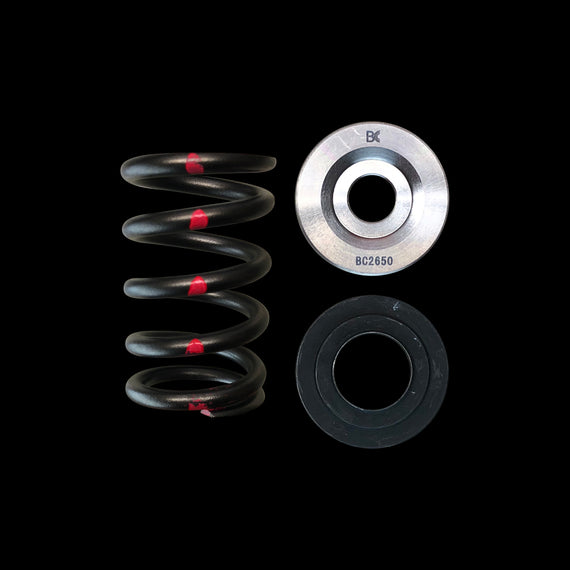

Brian Crower BC0650 Subaru Brz, Scion Fr-S, Toyota GT86 4UGSE Single Valve Spring / Titanium Retainer / Seat Kit

Brian Crower BC0650 is an application-specific valve spring and retainer package for Subaru Brz, Scion Fr-S, Toyota GT86 4UGSE. The matched components are intended to provide controlled spring pressure and stable valvetrain operation in performance applications when installed to the correct height and clearance.

Fitment / Application

Subaru Brz, Scion Fr-S, Toyota GT86 4UGSE

Product Details

• Manufacturer: Brian Crower
• Manufacturer Part Number: BC0650
• Product Type: Valve Spring & Retainer Kit
• Fitment / Application: Subaru Brz, Scion Fr-S, Toyota GT86 4UGSE
• Spring Type: Single
• Spring Part Number: BC1650
• Retainer: BC2650
• Retainer Material: Titanium
• Kit Includes: Valve springs, Retainers, Spring seats

Brian Crower Spring Specifications

• Free Length: 1.607"
• Seat Pressure: 1.350" @ 80 lbs
• Open Pressure: 0.900" @ 220 lbs
• Coil Bind: 0.765"
• Net Cam Lift: 0.500" / 12.7 mm
• Spring Seat: BC2938

Fitment Note

We identify many performance components by engine family rather than by every individual chassis. Verify the engine code, cylinder head/valvetrain configuration, and required supporting components before ordering, especially on engine swaps or modified vehicles.

Always verify installed height, coil-bind clearance, retainer-to-seal/guide clearance, and camshaft lift before final engine assembly.
