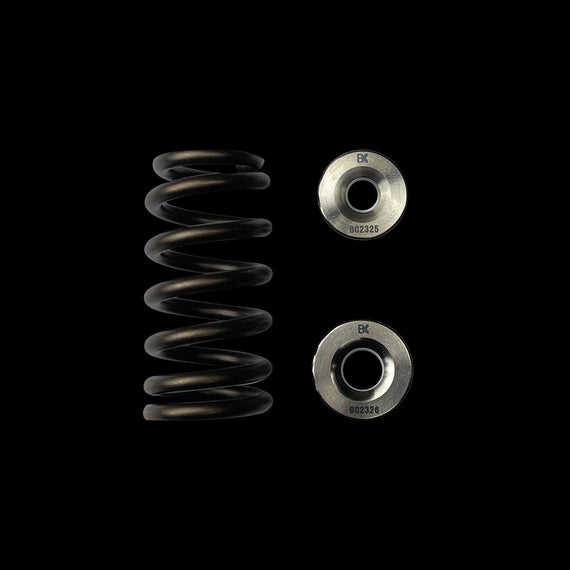

Brian Crower BC0326 Toyota/BMW B58 Single Spring Titanium Retainer Kit

Brian Crower BC0326 Toyota/BMW B58 Single Valve Spring / Titanium Retainer Kit

Brian Crower BC0326 is an application-specific valve spring and retainer package for Toyota/BMW B58. The matched components are intended to provide controlled spring pressure and stable valvetrain operation in performance applications when installed to the correct height and clearance.

Fitment / Application

Toyota/BMW B58

Product Details

• Manufacturer: Brian Crower
• Manufacturer Part Number: BC0326
• Product Type: Valve Spring & Retainer Kit
• Fitment / Application: Toyota/BMW B58
• Spring Type: Single Beehive
• Spring Part Number: BC1326
• Retainer: BC2325 / BC2326
• Retainer Material: Titanium
• Kit Includes: Valve springs, Retainers

Brian Crower Spring Specifications

• Free Length: 1.607"
• Seat Pressure: 1.450" @ 80 lbs
• Open Pressure: 0.950" @ 180 lbs
• Coil Bind: 0.910"
• Net Cam Lift: 0.480" / 12.19 mm
• Spring Seat: Uses OEM spring seat

Fitment Note

We identify many performance components by engine family rather than by every individual chassis. Verify the engine code, cylinder head/valvetrain configuration, and required supporting components before ordering, especially on engine swaps or modified vehicles.

Always verify installed height, coil-bind clearance, retainer-to-seal/guide clearance, and camshaft lift before final engine assembly.
