Brian Crower BC0300SHD Single Spring Steel Retainer Kit (Toyota 2JZ...

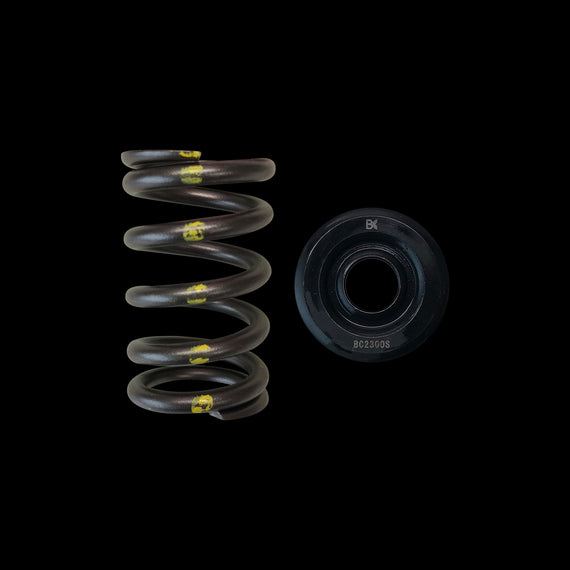

Brian Crower BC0300SHD Single Valve Spring / Steel Retainer Kit (Toyota 2JZGTE/Lexus 2JZGE) - Heavy-Duty

Brian Crower BC0300SHD is an application-specific valve spring and retainer package for Toyota 2JZGTE/Lexus 2JZGE. The matched components are intended to provide controlled spring pressure and stable valvetrain operation in performance applications when installed to the correct height and clearance.

Fitment / Application

Toyota 2JZGTE/Lexus 2JZGE

Product Details

• Manufacturer: Brian Crower
• Manufacturer Part Number: BC0300SHD
• Product Type: Valve Spring & Retainer Kit
• Fitment / Application: Toyota 2JZGTE/Lexus 2JZGE
• Spring Type: Single - Heavy Duty
• Spring Part Number: BC1300 Heavy Duty
• Retainer: BC2300S-24
• Retainer Material: Steel
• Kit Includes: Valve springs, Retainers

Brian Crower Spring Specifications

• Free Length: 1.690"
• Seat Pressure: 1.320" @ 102 lbs
• Open Pressure: 0.900" @ 215 lbs
• Coil Bind: 0.835"
• Net Cam Lift: 0.460" / 11.68 mm
• Spring Seat: Uses OEM spring seat

Installation / Application Notes

Heavy-duty version with increased spring pressure; BC specifies it for applications above 800 whp.

Fitment Note

We identify many performance components by engine family rather than by every individual chassis. Verify the engine code, cylinder head/valvetrain configuration, and required supporting components before ordering, especially on engine swaps or modified vehicles.

Always verify installed height, coil-bind clearance, retainer-to-seal/guide clearance, and camshaft lift before final engine assembly.
