Brian Crower BC0090S Honda C30A/C32B Nsx Dual Spring Steel Retainer...

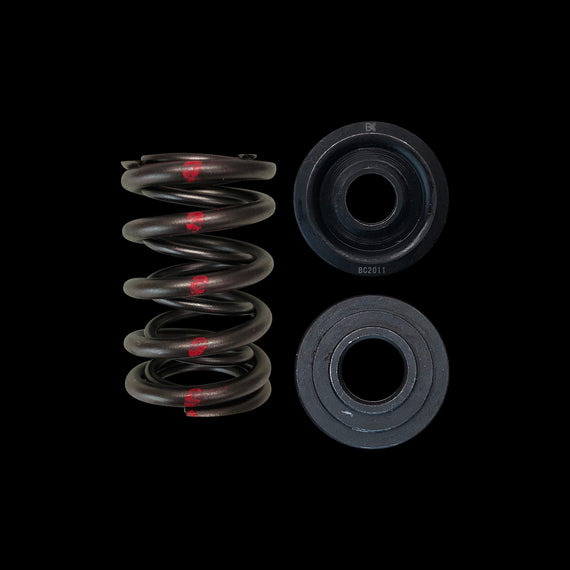

Brian Crower BC0090S Honda C30A/C32B Nsx Dual Valve Spring / Steel Retainer / Seat Kit

Brian Crower BC0090S is an application-specific valve spring and retainer package for Honda C30A/C32B Nsx. The matched components are intended to provide controlled spring pressure and stable valvetrain operation in performance applications when installed to the correct height and clearance.

Fitment / Application

Honda C30A/C32B Nsx

Product Details

• Manufacturer: Brian Crower
• Manufacturer Part Number: BC0090S
• Product Type: Valve Spring & Retainer Kit
• Fitment / Application: Honda C30A/C32B Nsx
• Spring Type: Dual
• Spring Part Number: BC1030
• Retainer: BC2011
• Retainer Material: Steel
• Kit Includes: Valve springs, Retainers, Spring seats

Brian Crower Spring Specifications

• Free Length: 1.815"
• Seat Pressure: 1.400" @ 88 lbs
• Open Pressure: 0.950" @ 220 lbs
• Coil Bind: 0.790"
• Net Cam Lift: 0.510" / 12.95 mm
• Spring Seat: BC2904

Fitment Note

We identify many performance components by engine family rather than by every individual chassis. Verify the engine code, cylinder head/valvetrain configuration, and required supporting components before ordering, especially on engine swaps or modified vehicles.

Always verify installed height, coil-bind clearance, retainer-to-seal/guide clearance, and camshaft lift before final engine assembly.
