In Stock & Ready to Ship!

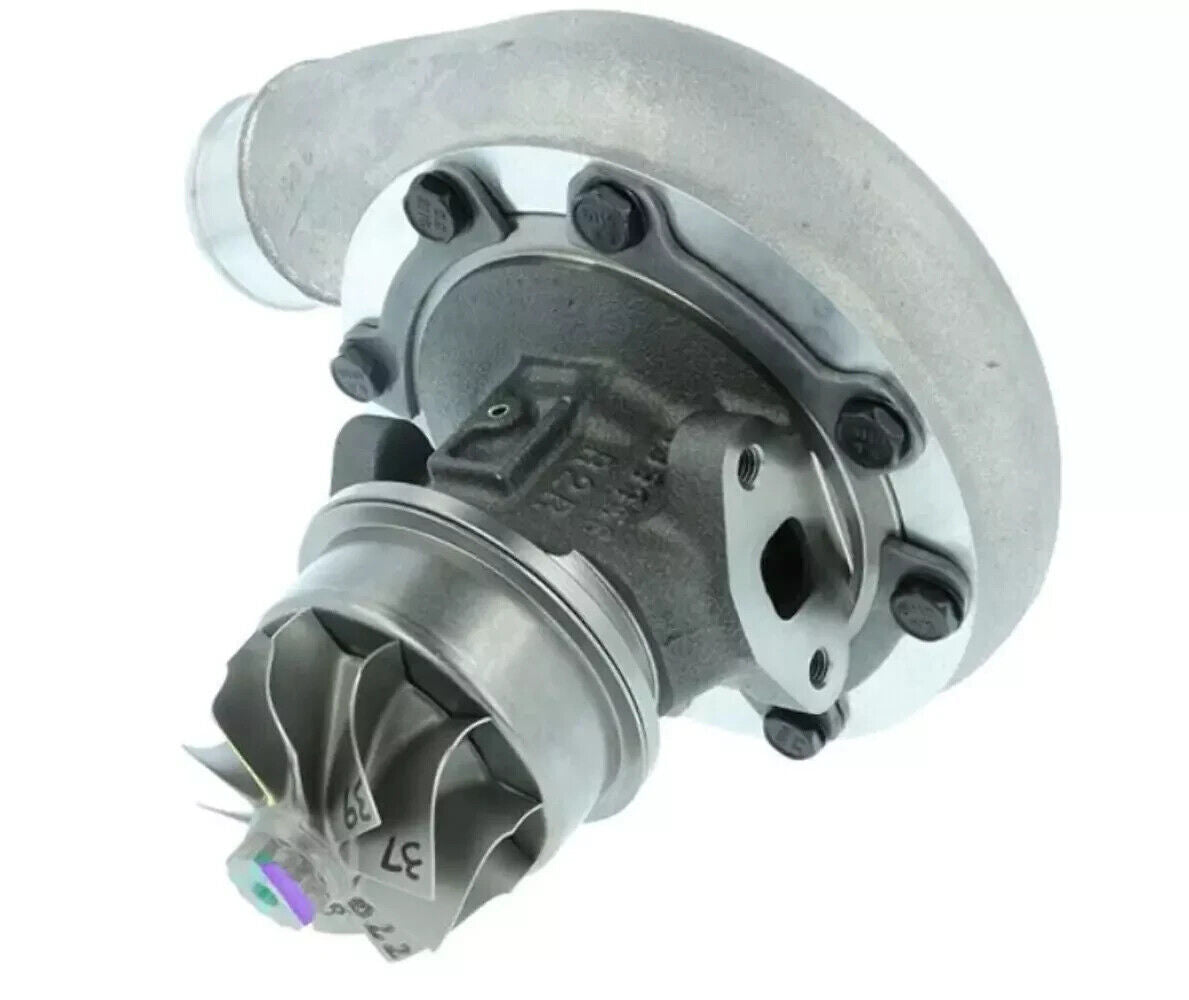

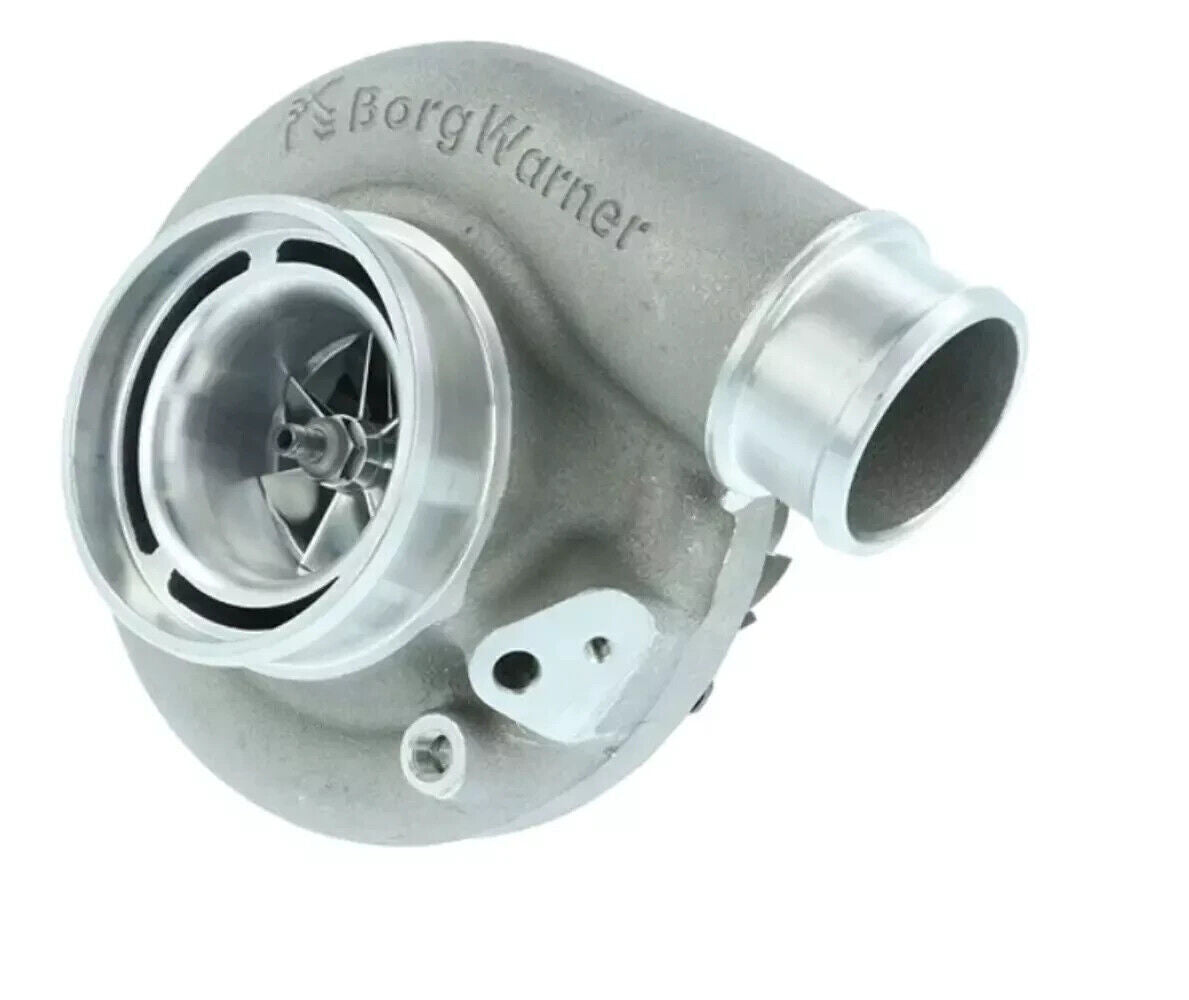

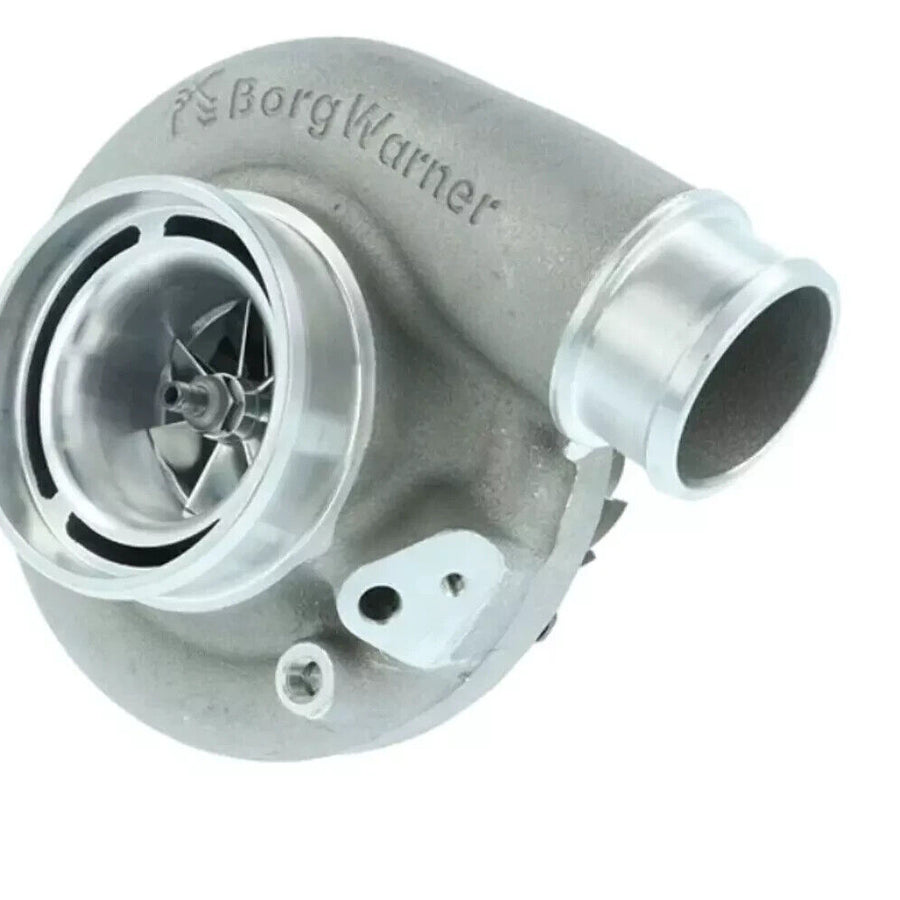

Up for sale is a BorgWarner Turbo Super Core Assembly SX-E S200SX-E 7670 57.15mm
which includes the Super Core & Compressor Cover
Specifications:
Compressor Wheel Exducer: 76mm
Compressor Wheel Inducer: 57.15mm
Max Flow Rate: 64 lbs/min
Max Recommended Turbo Speed: 560 m/s
Turbine Wheel Exducer: 61.43mm
Turbine Wheel Inducer: 70mm
Turbocharger Bearing Style: Journal Bearing
We can include the Turbine Housing of your choice at an additional cost, just message us after you have placed the order.
Housing Size and A/R Ratio:
S257SX-E 7670 is available in (6) different turbine housing configurations:
0.83A/R Divided T4/T3 Twin Scroll Inlet
1.00A/R Divided T4/T3 Twin Scroll Inlet
1.09A/R Divided T4/T3 Twin Scroll Inlet
1.15A/R Divided T4/T3 Twin Scroll Inlet
1.22A/R Divided T4/T3 Twin Scroll Inlet
1.27A/R Divided T4/T3 Twin Scroll Inlet
Please review BorgWarner's turbo systems warranty, they offer a 12 month limited warranty.
AirWerks Turbochargers Overview
AirWerks turbochargers are expertly crafted for motorsport enthusiasts, engine retrofits, and drivers seeking enhanced performance from factory turbocharged vehicles. Designed with a focus on drag racing, pulling, and road racing, they have earned a solid reputation for durability and high-performance capabilities. Whether you need a straightforward replacement, a turbocharger upgrade, or a compact solution for tight spaces, BorgWarner’s AirWerks series offers a reliable choice for various applications.
Performance and Design
Built with twin hydrodynamic journal bearings, AirWerks turbochargers deliver exceptional responsiveness, achieving over 70 PSI of boost. They feature a high-pressure compressor stage, extended-tip technology, and a highly efficient turbine stage, ensuring robust performance and reliability.
Key Features of the AirWerks Series
S200SX Turbochargers:
- Power range: 220–580 HP
- Twin hydrodynamic journal bearings
- Integrated wastegate assembly
- Adjustable housing orientation for compressor and turbine
- Recirculation grooves in specific models (317222 / 317246)
S200SX-E Super Core:
- Power range: 300–650 HP
- Integrated speed sensor port
- Forged milled compressor wheel
- Pre-machined boost port
- Enhanced compressor stage aerodynamics
These turbochargers combine cutting-edge technology and rugged design to meet the diverse needs of motorsports professionals and performance enthusiasts alike.
