Titan Motorsports Stage 3 CNC 2JZ-GTE Non VVTI Cylinder Head Complete W Cams
$8,049.00
The Titan Motorsports Stage 3 Cylinder Head is our most popular cylinder head. It is suggested to run a built or prepped short block for this head package. This is the same cylinder head that was developed in the famous Titan Motorsports Pro Street Tire Supra and pushed it into the 7’s in the ¼ mile to be the fastest...
Tags:
The Titan Motorsports Stage 3 Cylinder Head is our most popular cylinder head. It is suggested to run a built or prepped short block for this head package. This is the same cylinder head that was developed in the famous Titan Motorsports Pro Street Tire Supra and pushed it into the 7’s in the ¼ mile to be the fastest street Supra at the time. Since then, this head has even been used on pro chassis cars to run low 6’s.

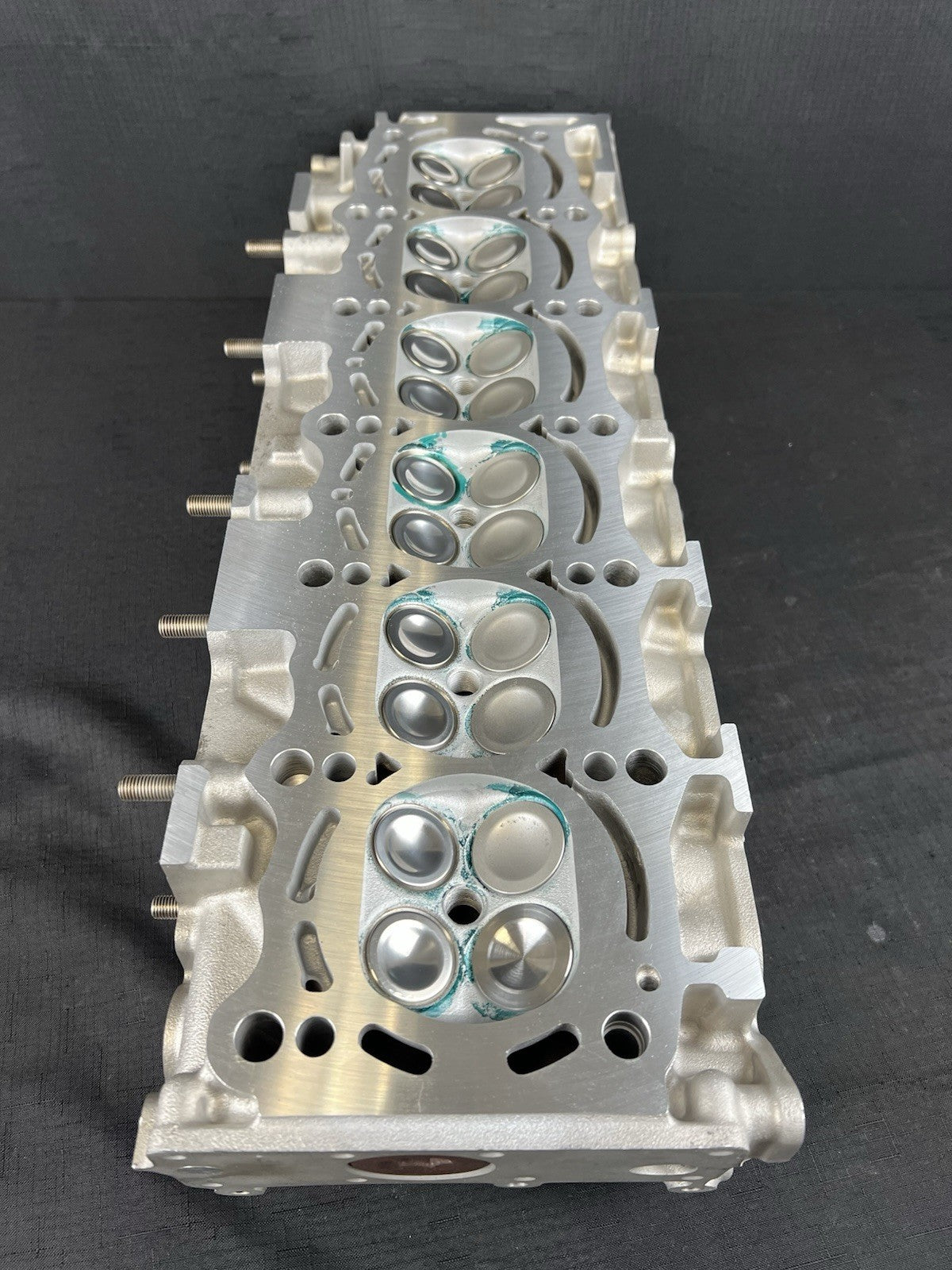

We start by cleaning and pressure checking the core cylinder head, then remove the valve guides and do a full CNC port and polish, including CNC’ing the combustion chambers. We plug the additional water passages that are not needed for a performance head. The valve job is done on a Newen Contour machine that creates the optimal valve seal machining and angle. Then full re-assembly is done with Ferrea Guides, Ferrea Dual springs, Titanium retainers, seals, seats/locks and +1mm valves.
As an option, we can install Supertech shim-under buckets and Supertech shims. These buckets must be installed for the specific cam that you have, cams must be supplied or purchased and will be set and shimmed for each specific head. This allows you to safely rev above 9,000rpm if you so desire. The buckets are half the weight of the stock bucket and prevent the common shim spitting that can occur with high revving engines. These are the same exact buckets and shims we use in our pro car race engine program that has gone deep into the 5 second quarter mile times, as well as 3,000+ HP.
This head is ready for your performance build
This cylinder head is a used Titan 2jz-gte Non VVTi CNC'd Stage 3 cylinder head that was refreshed.
Below is a detailed overview of the procedures performed and the components installed in this cylinder head.
Hot Tanked
Vapor Honed
All Plugs are pulled
Oil Galley are cleaned
Bronze Valve Guides
Head Deburred
Fresh valve job
Polish Cam Jounals

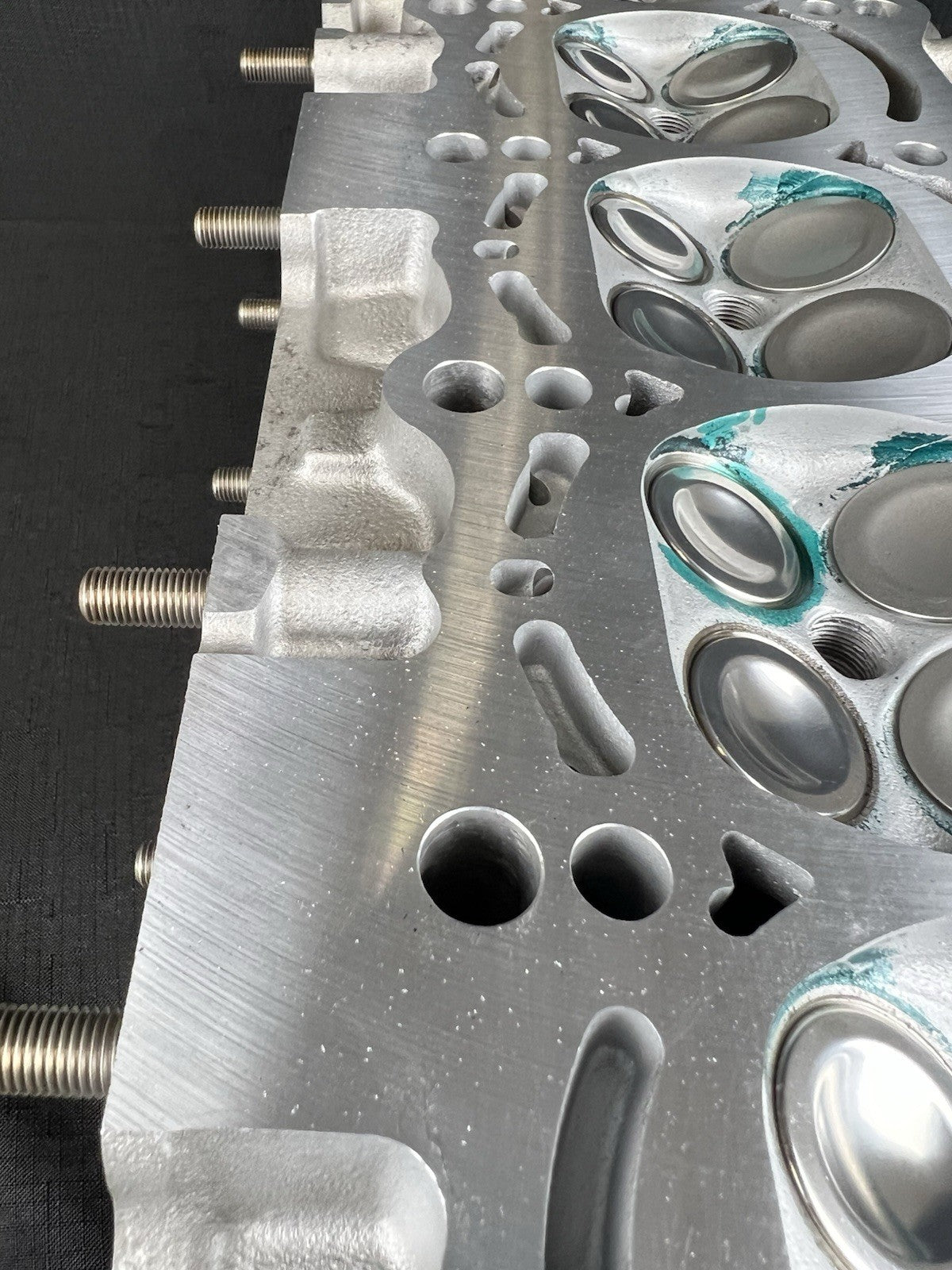

Resurfaced with a carbide cutter
Valves tip height is set to cam spec for shim over bucket
**This head needs cam gears/seals/sensors and she is ready to go**
No Core Needed !
Includes:

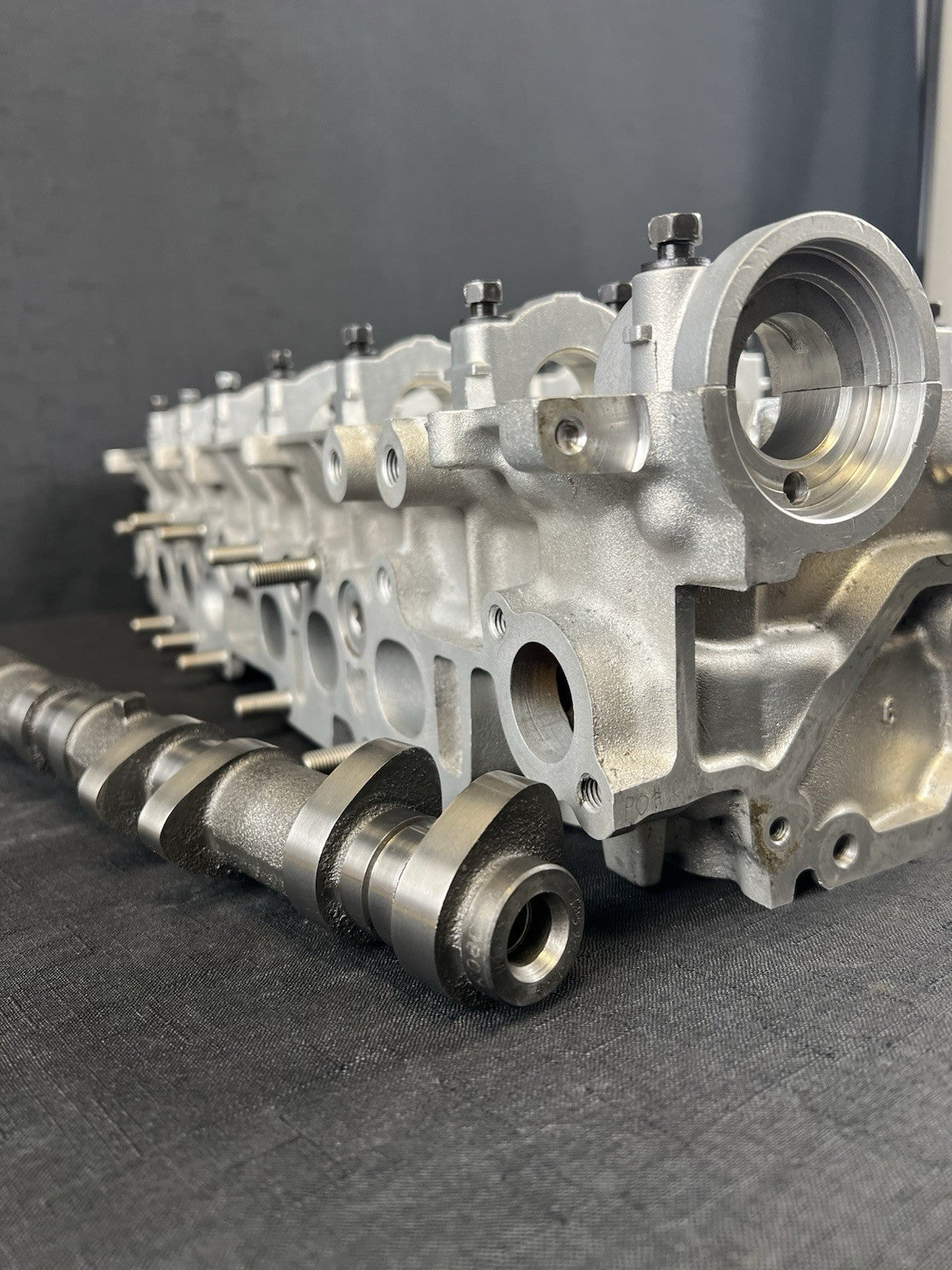

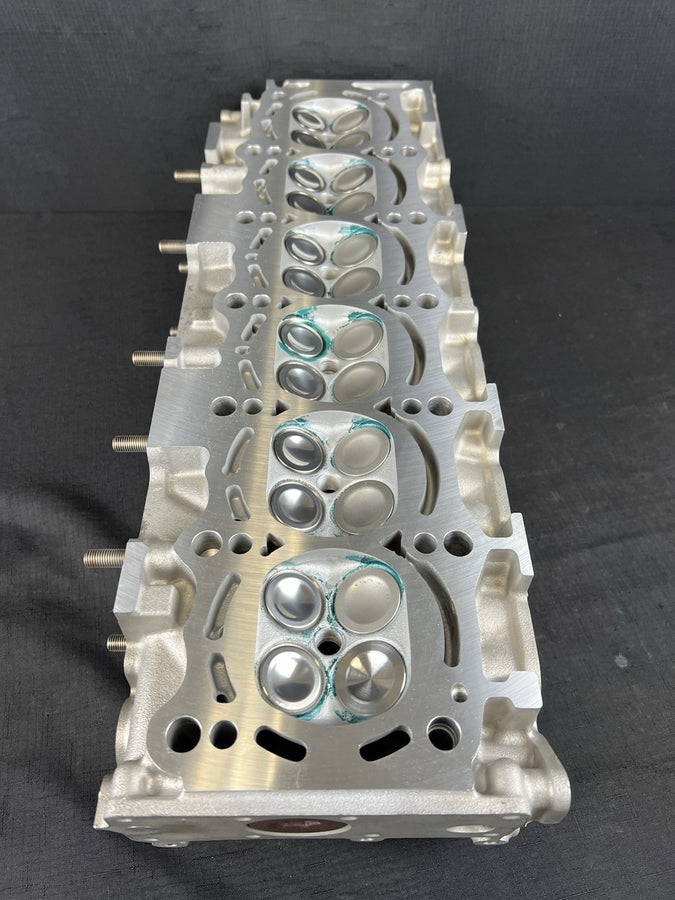

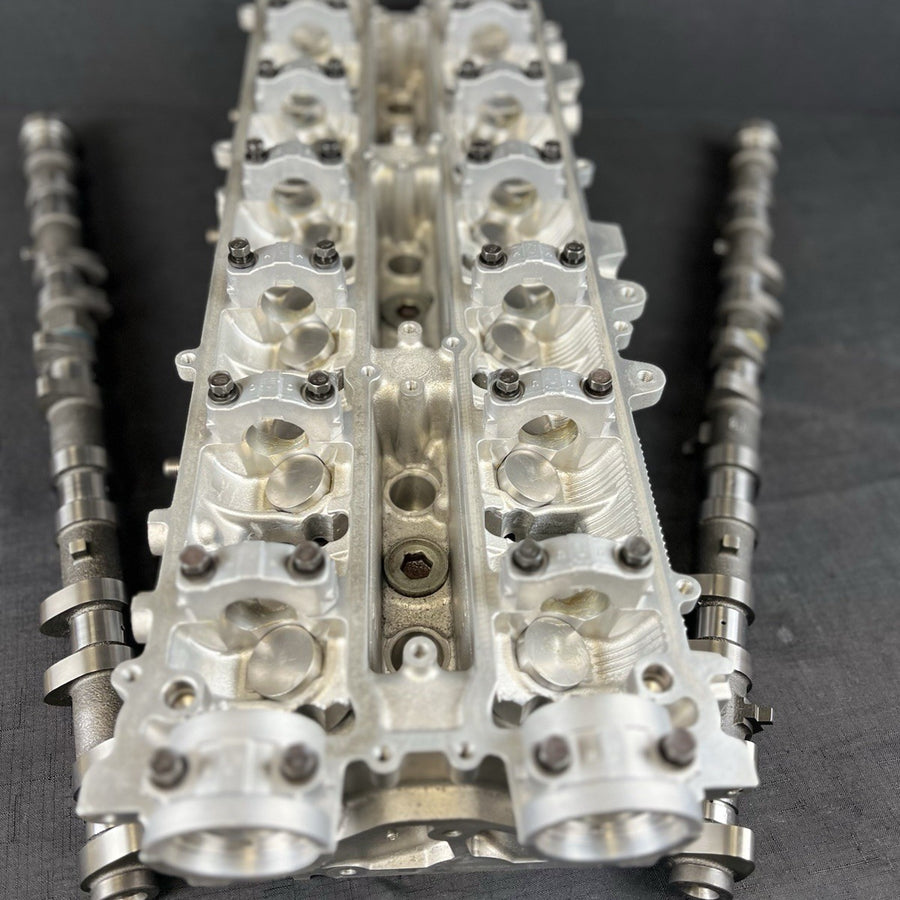

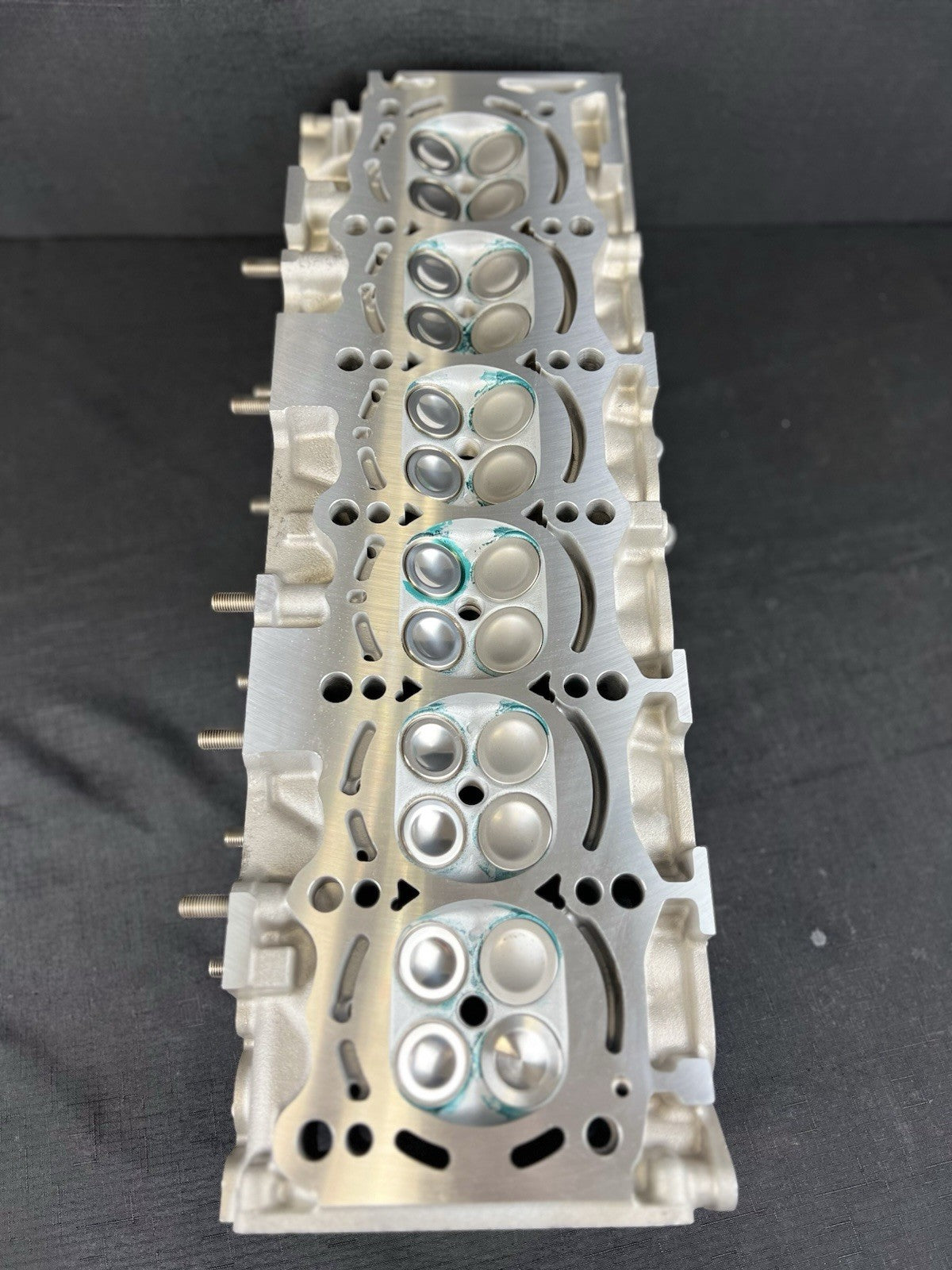

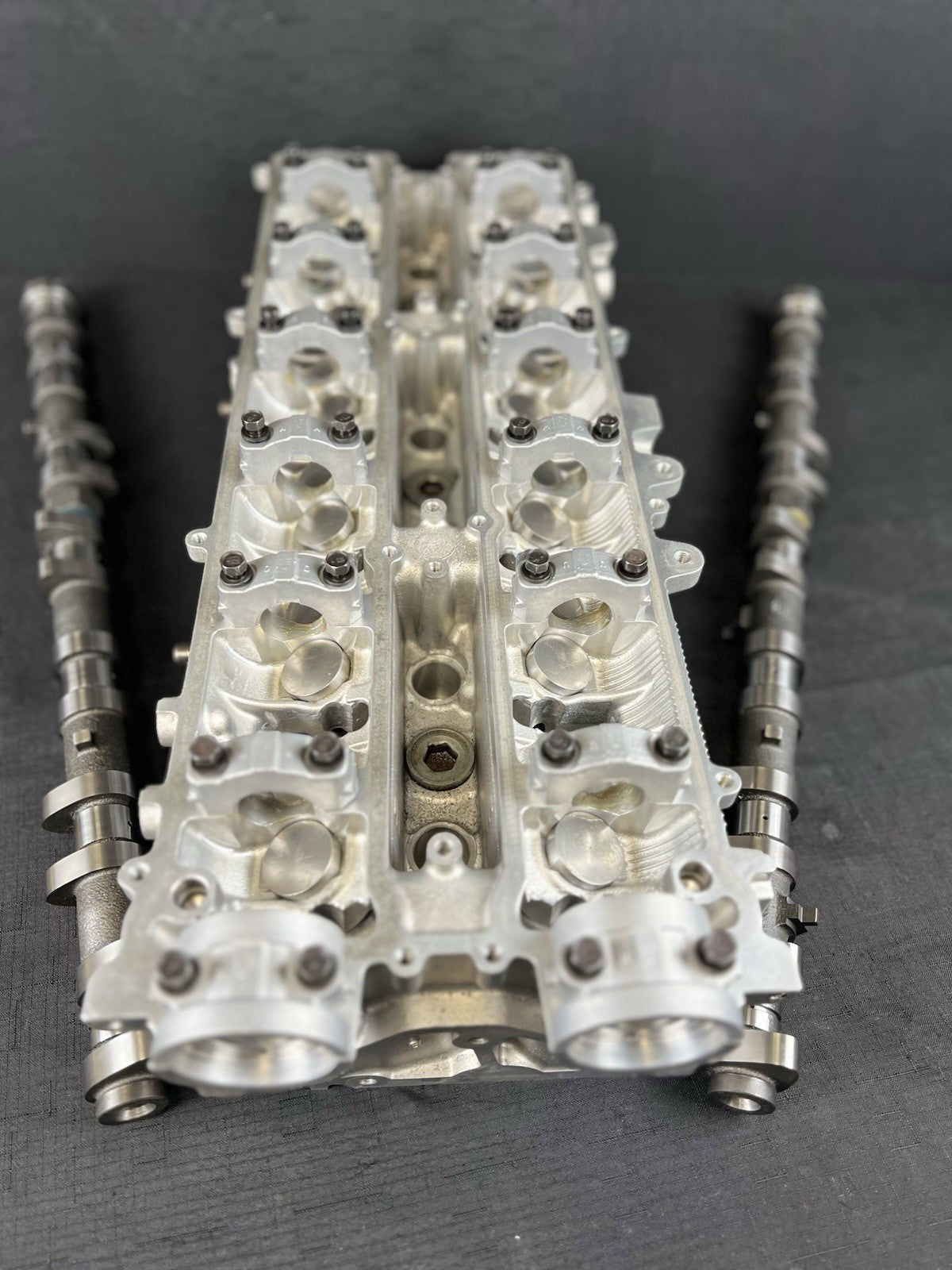

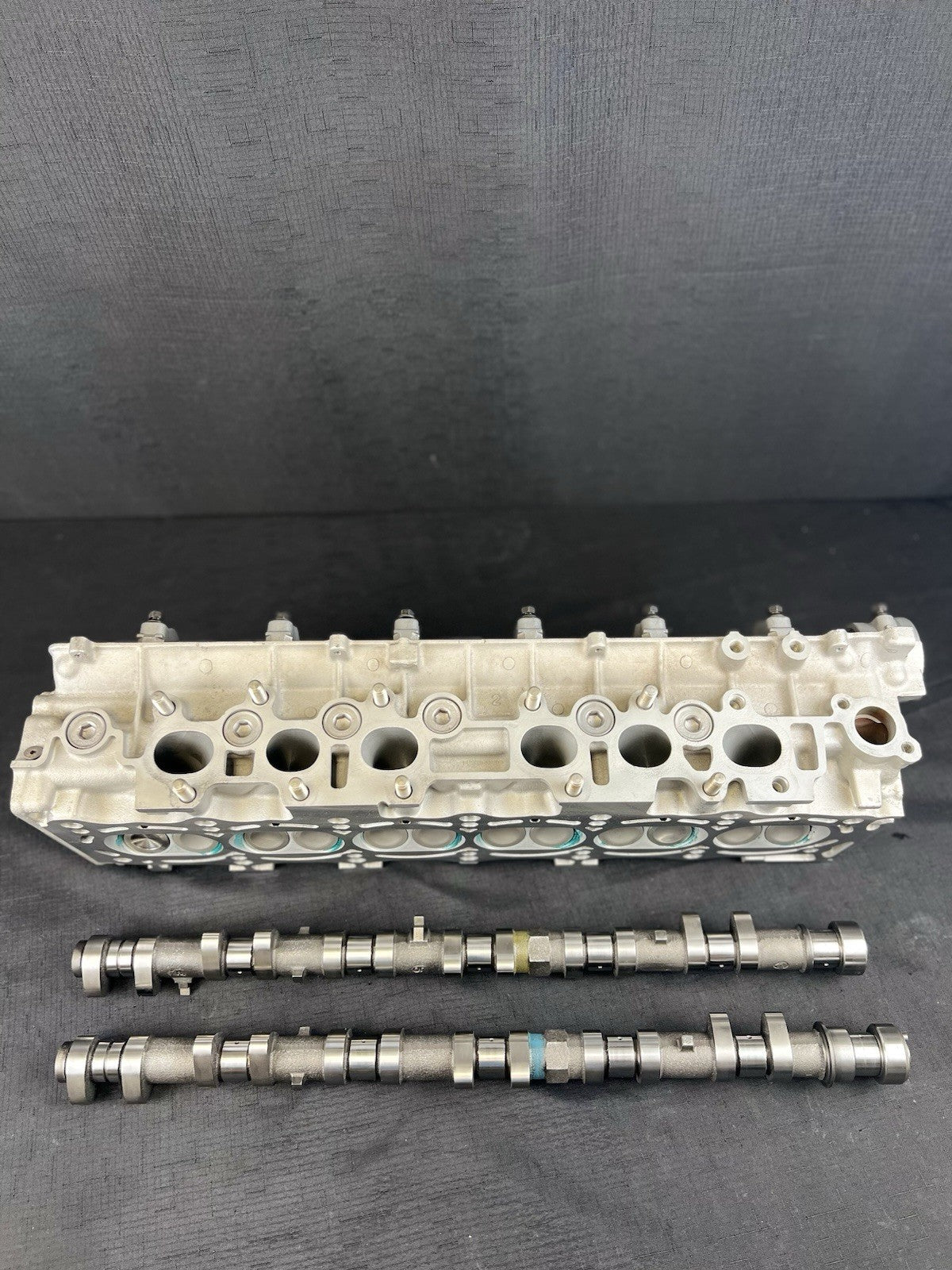

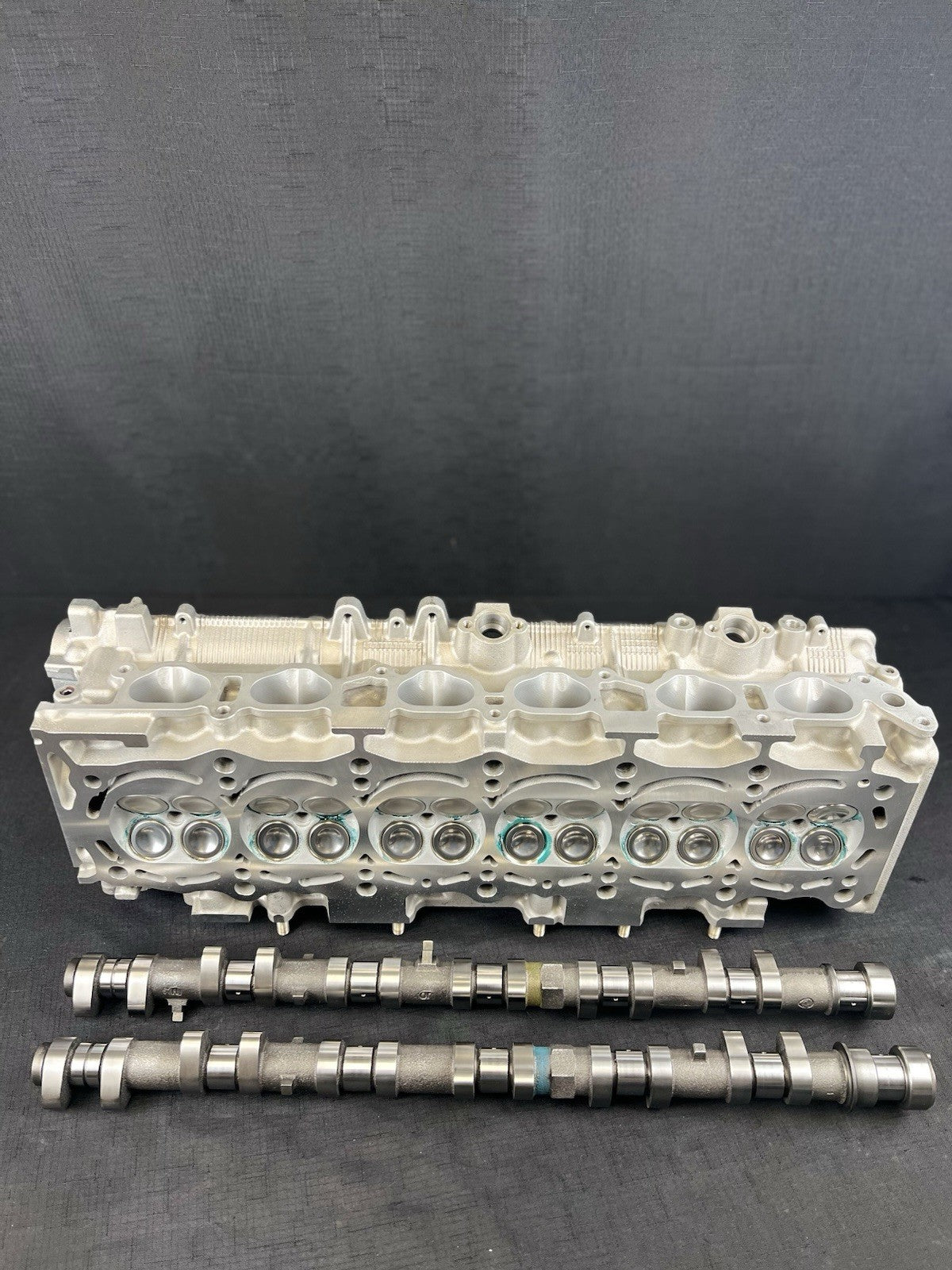

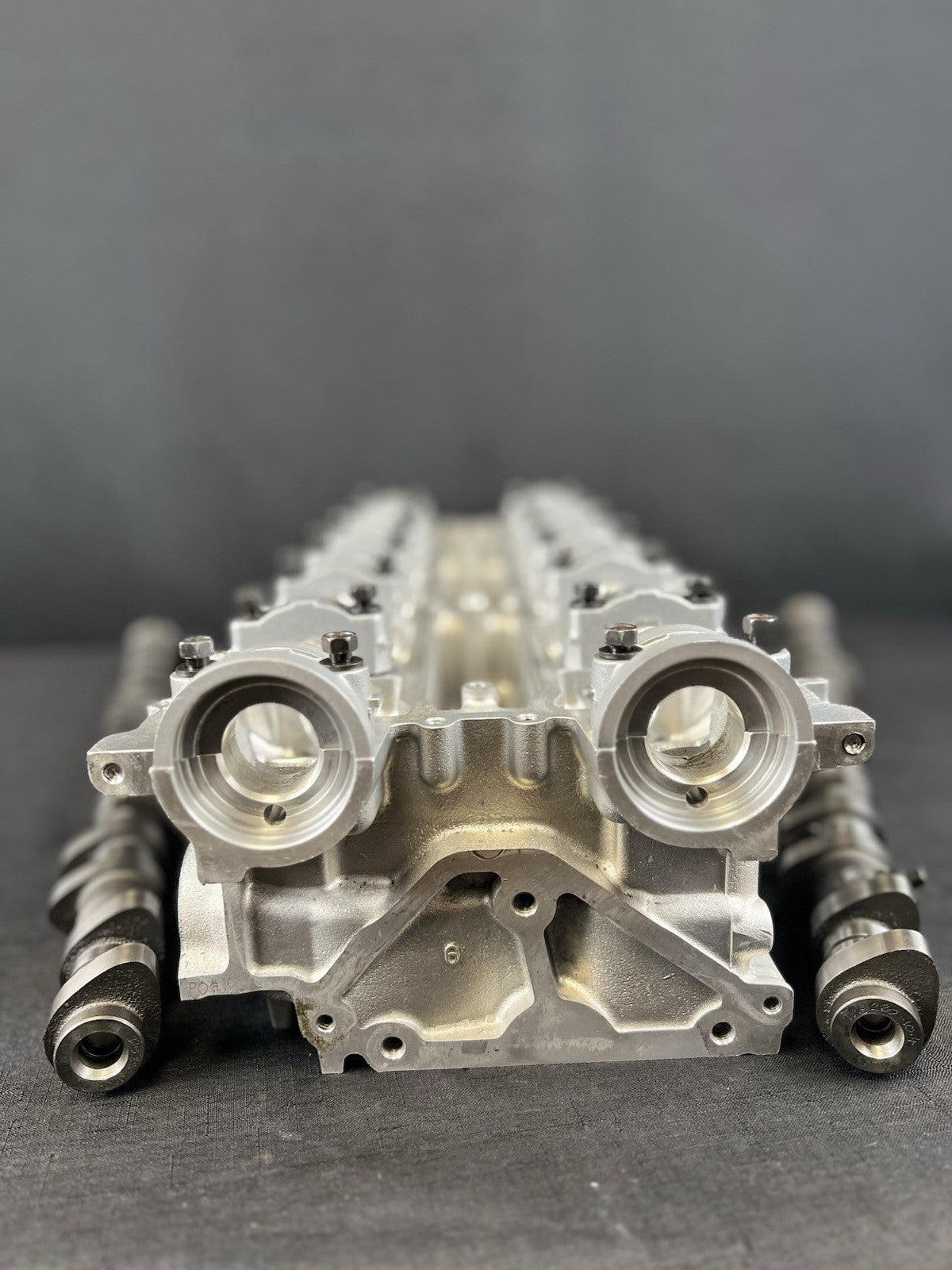

Titan CNC 2JZ-GTE NON-VVTi Cylinder Head

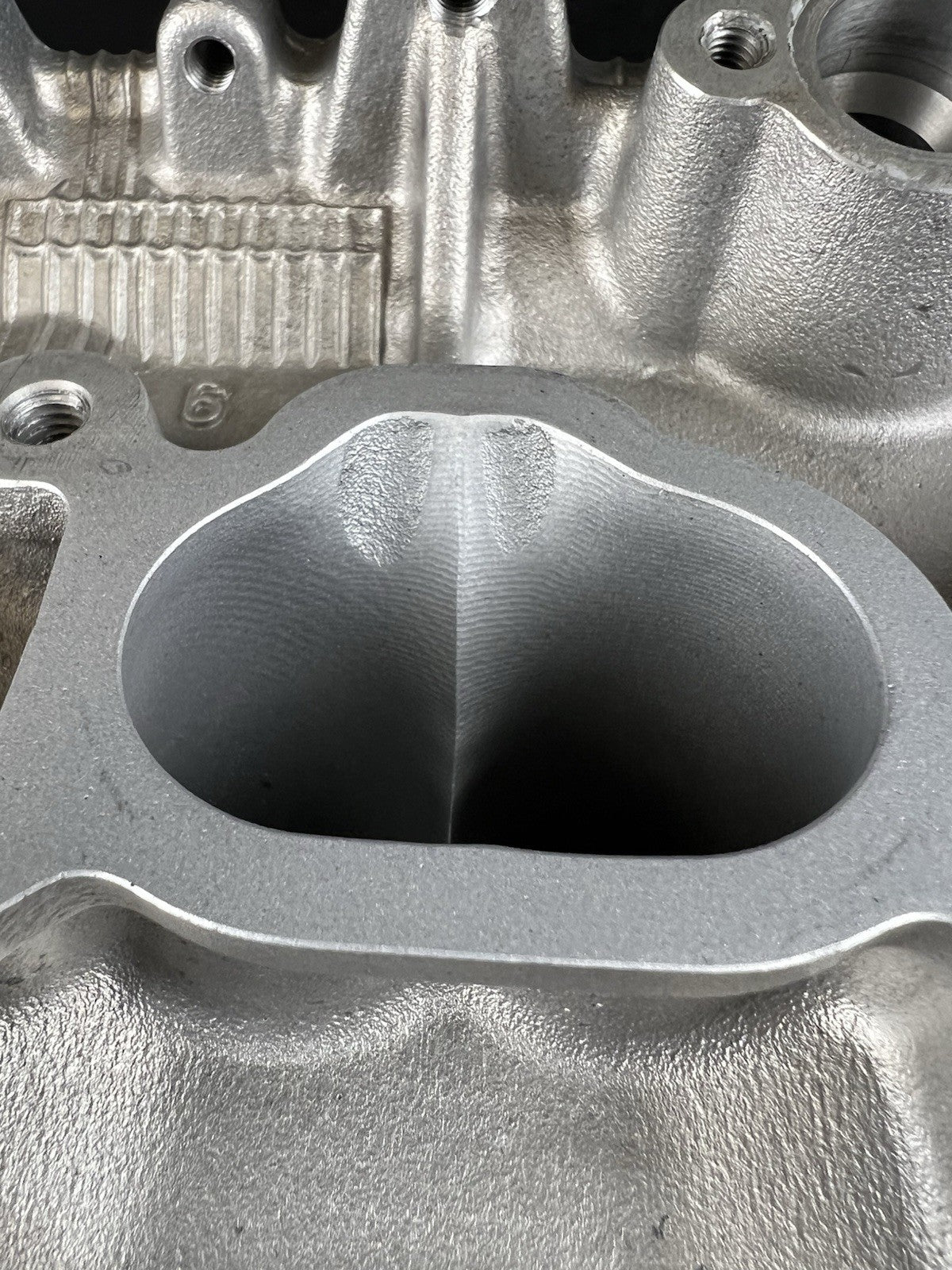

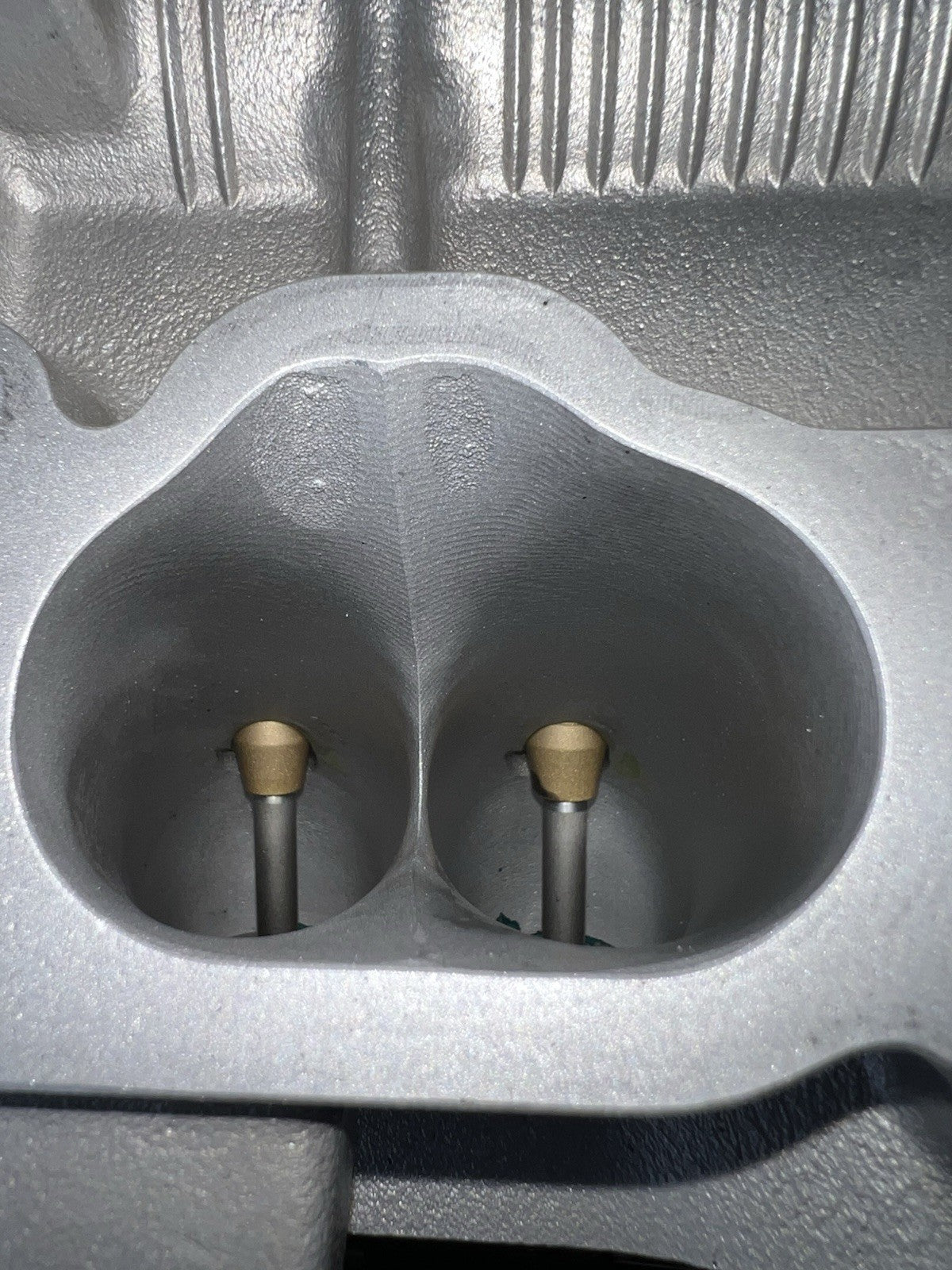

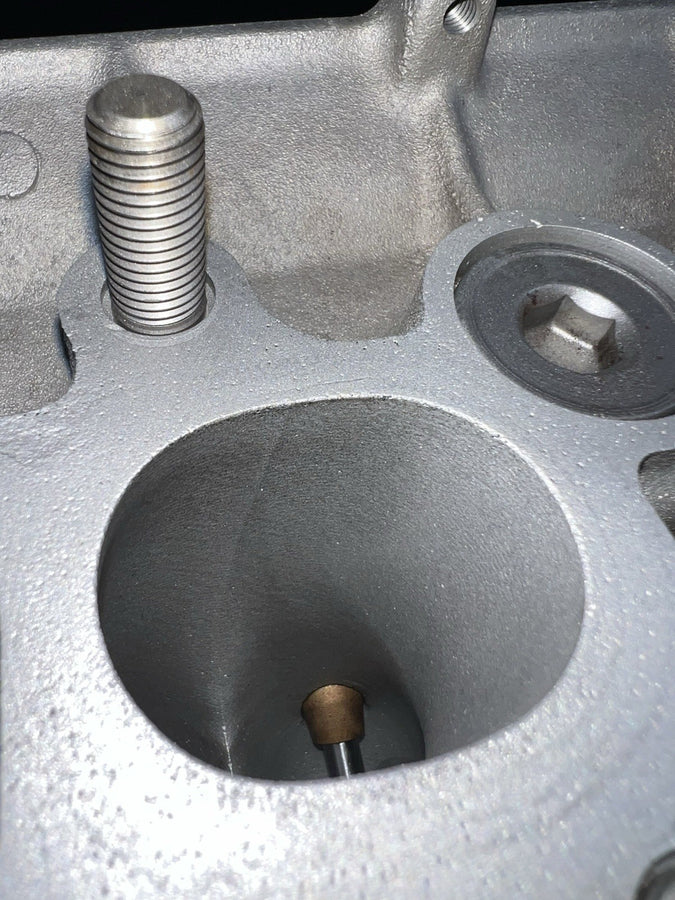

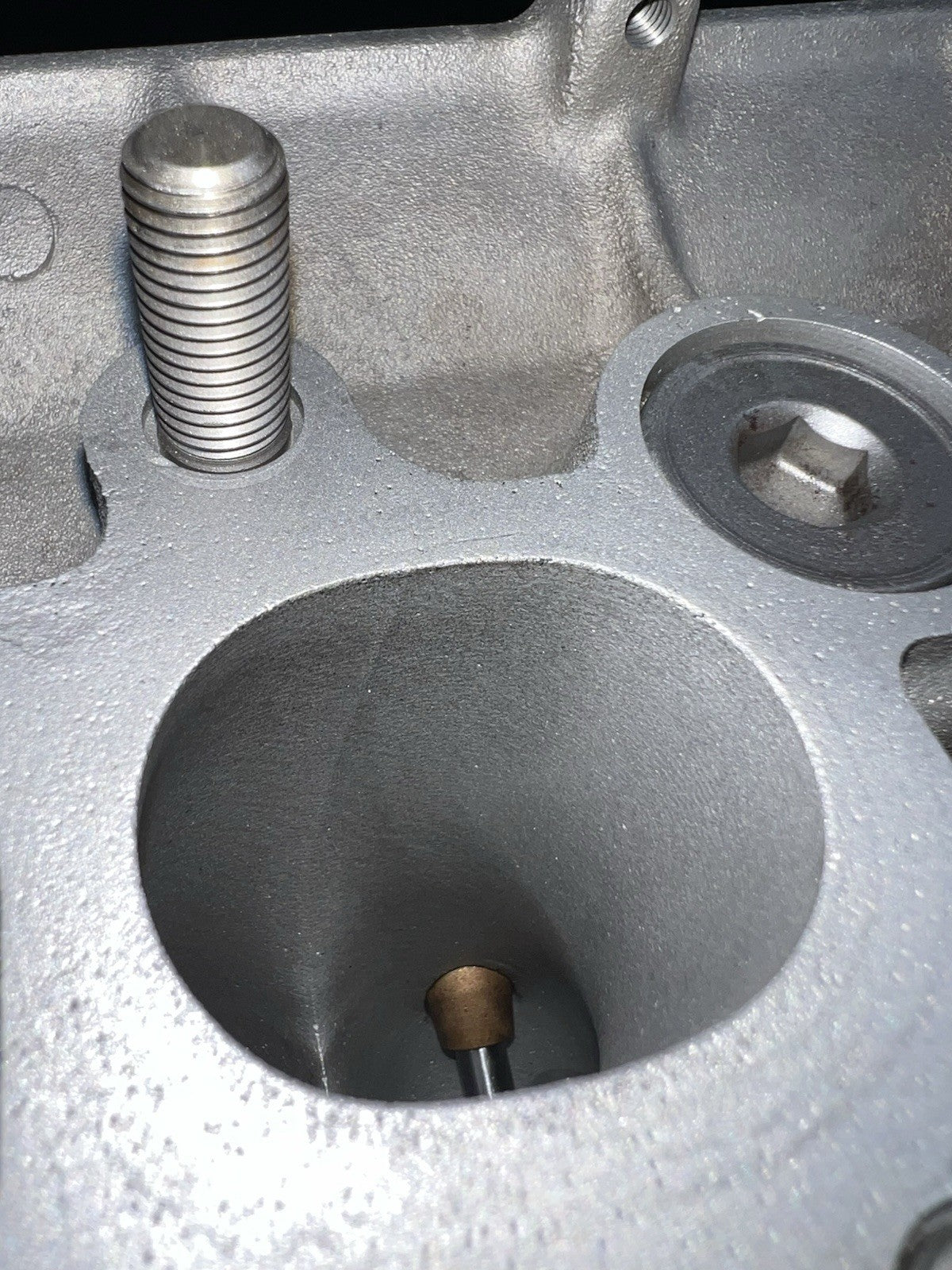

(Exhaust ports and Intake ports are CNC'd)

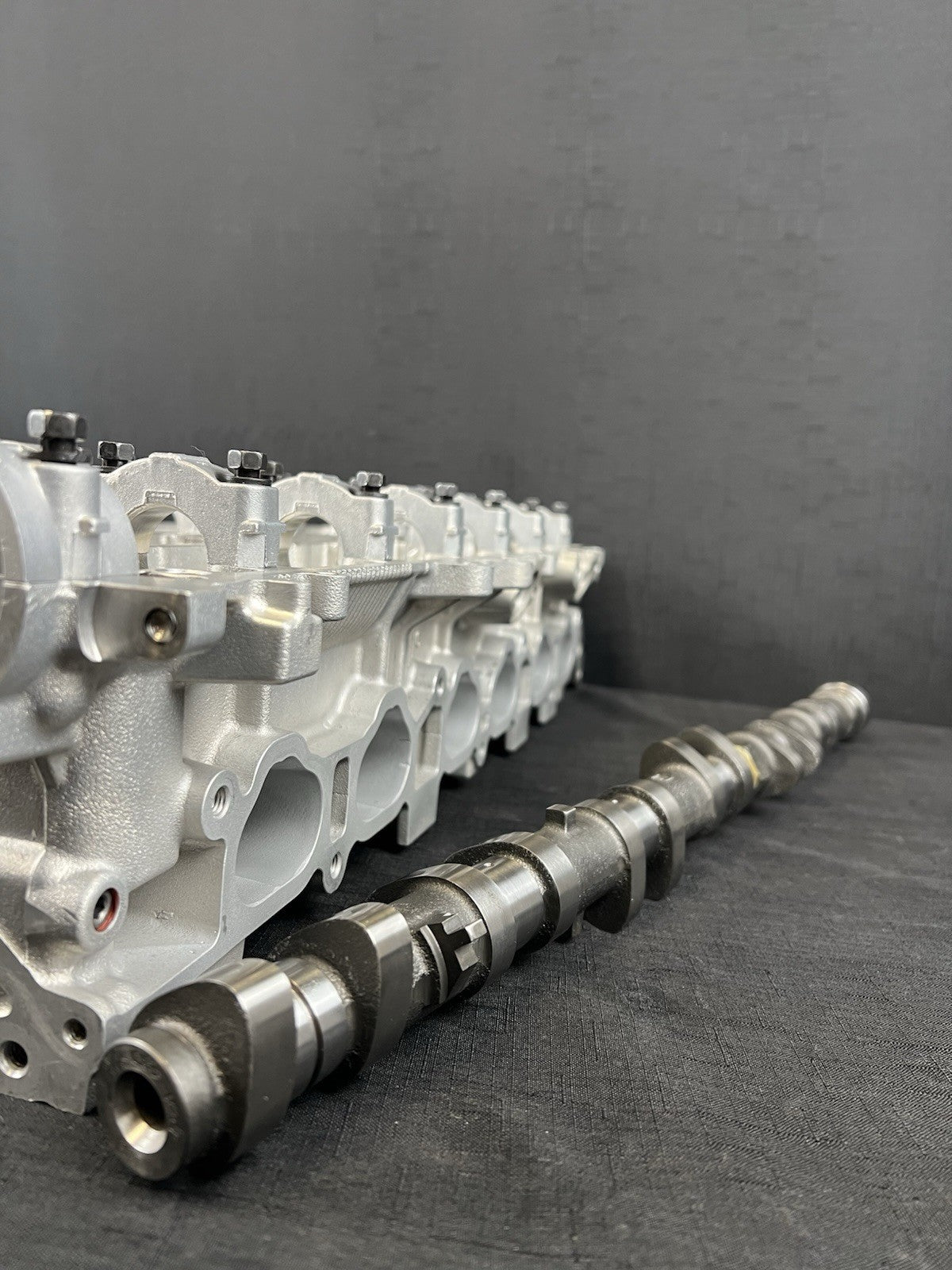

Titan VVTi 272° 9.45mm Lift Cams (TMS07)

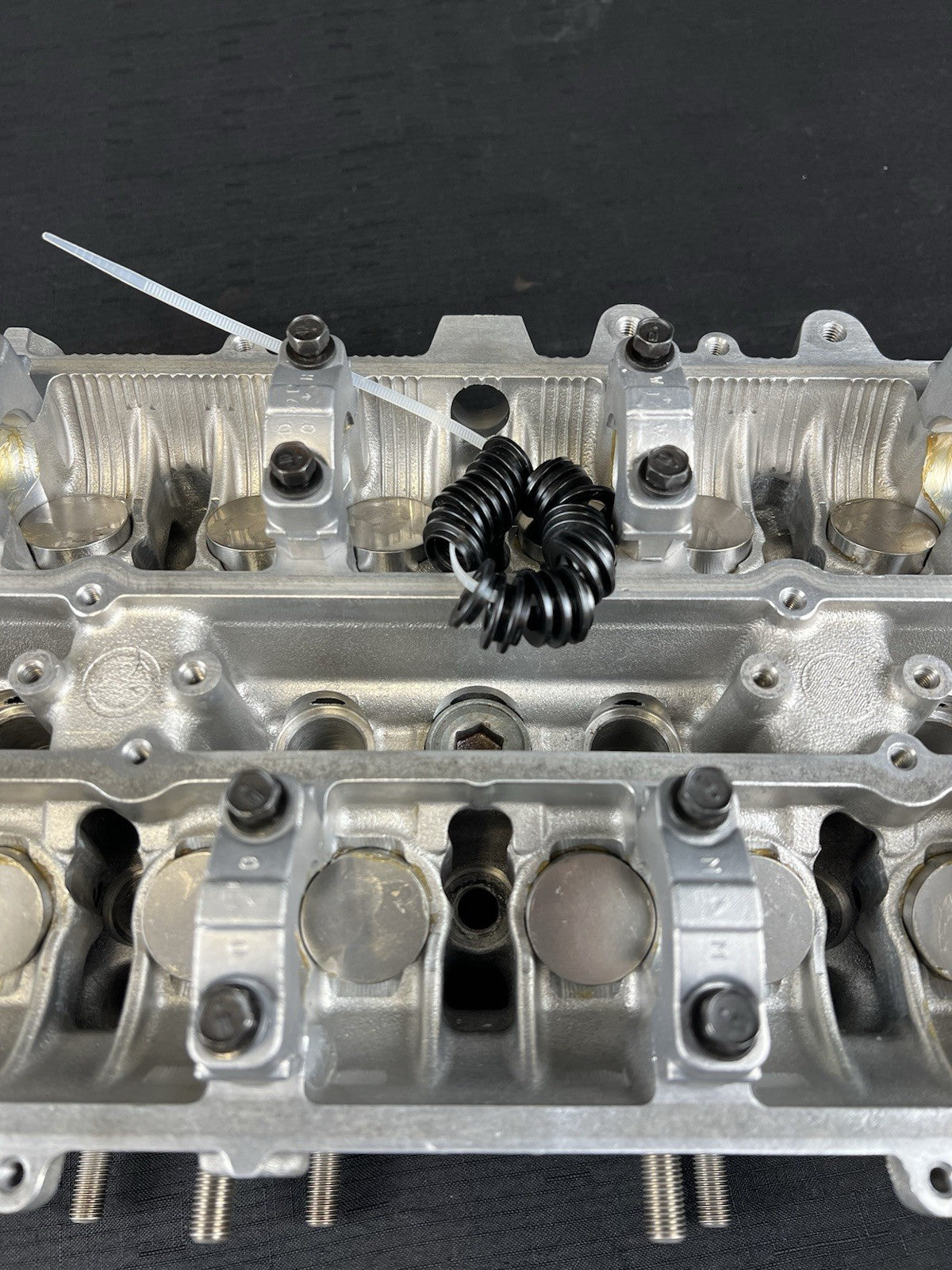

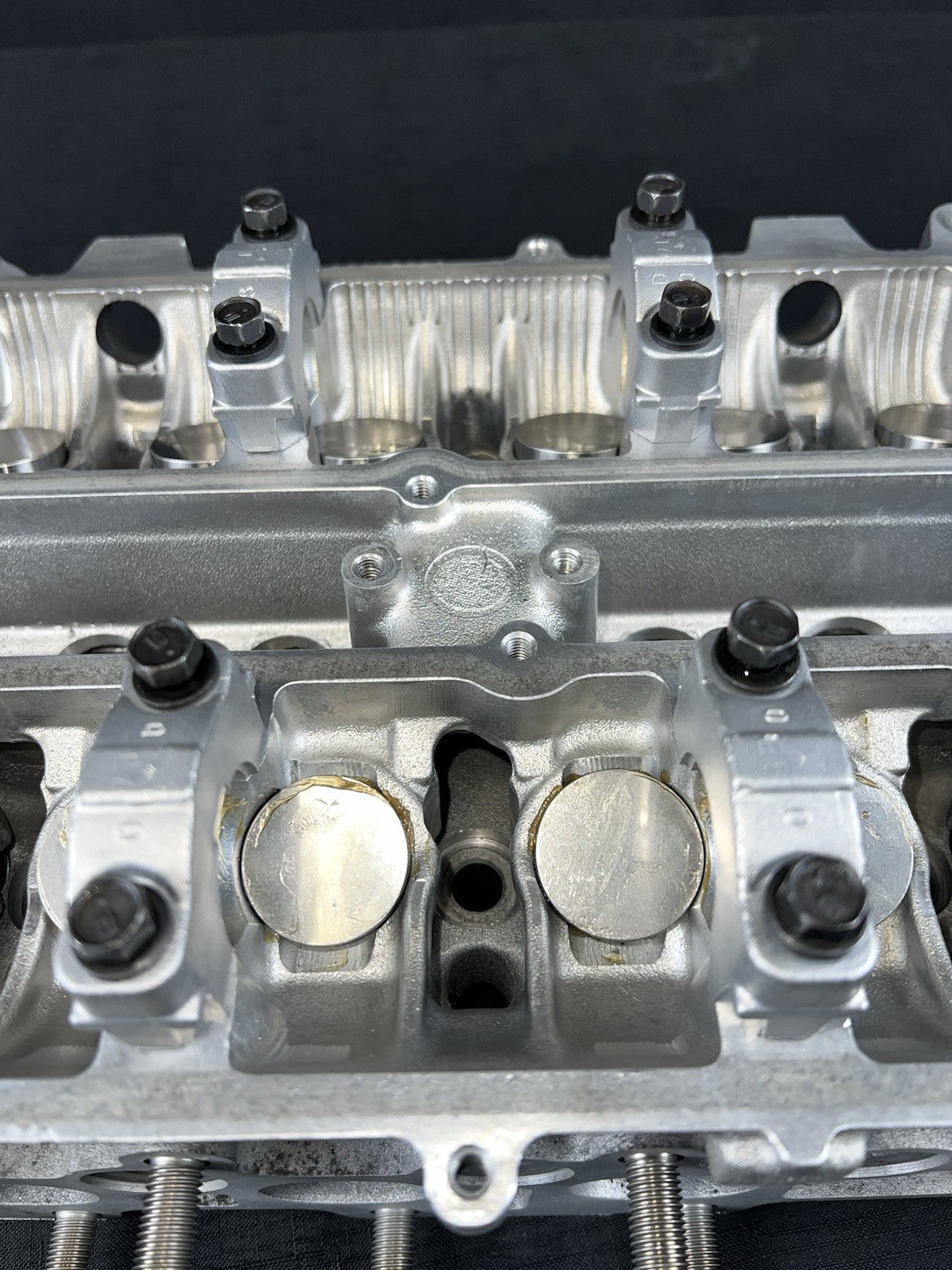

Supertech Shim Over Buckets
Ferrea Dual Valve Springs w/Titanium Retainers/Locks
Ferrea Bronze Valve Guides
ARP Insert Washers for Head Bolts
Ferrea Valve Seals Ferrea Competition Plus Exhaust Valves -+1mm Oversize - F1497P
Ferrea Competition Plus Intake Valve Set Intake -Head Diameter: 34.6 mm F1496P
Important Notes:

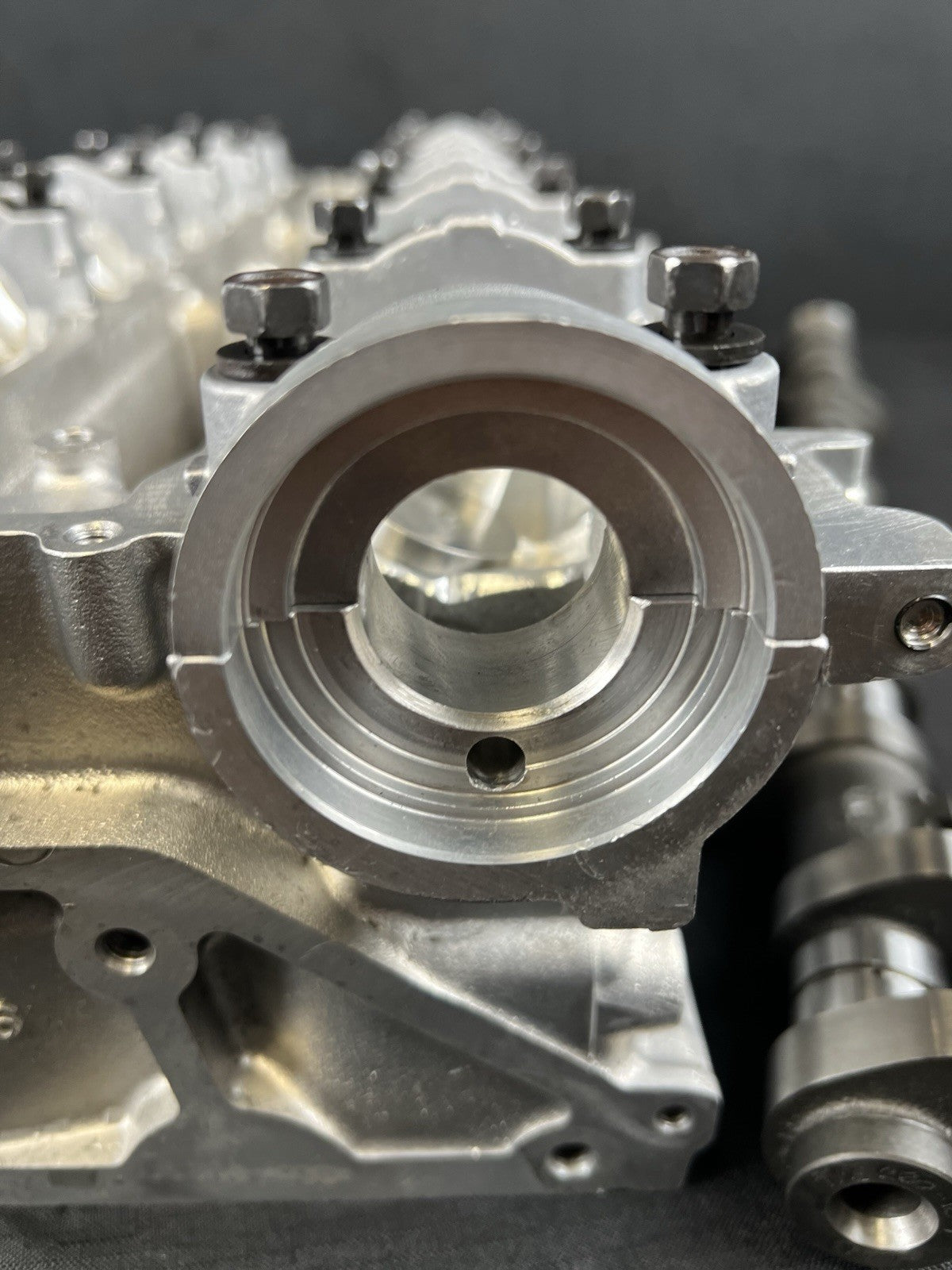

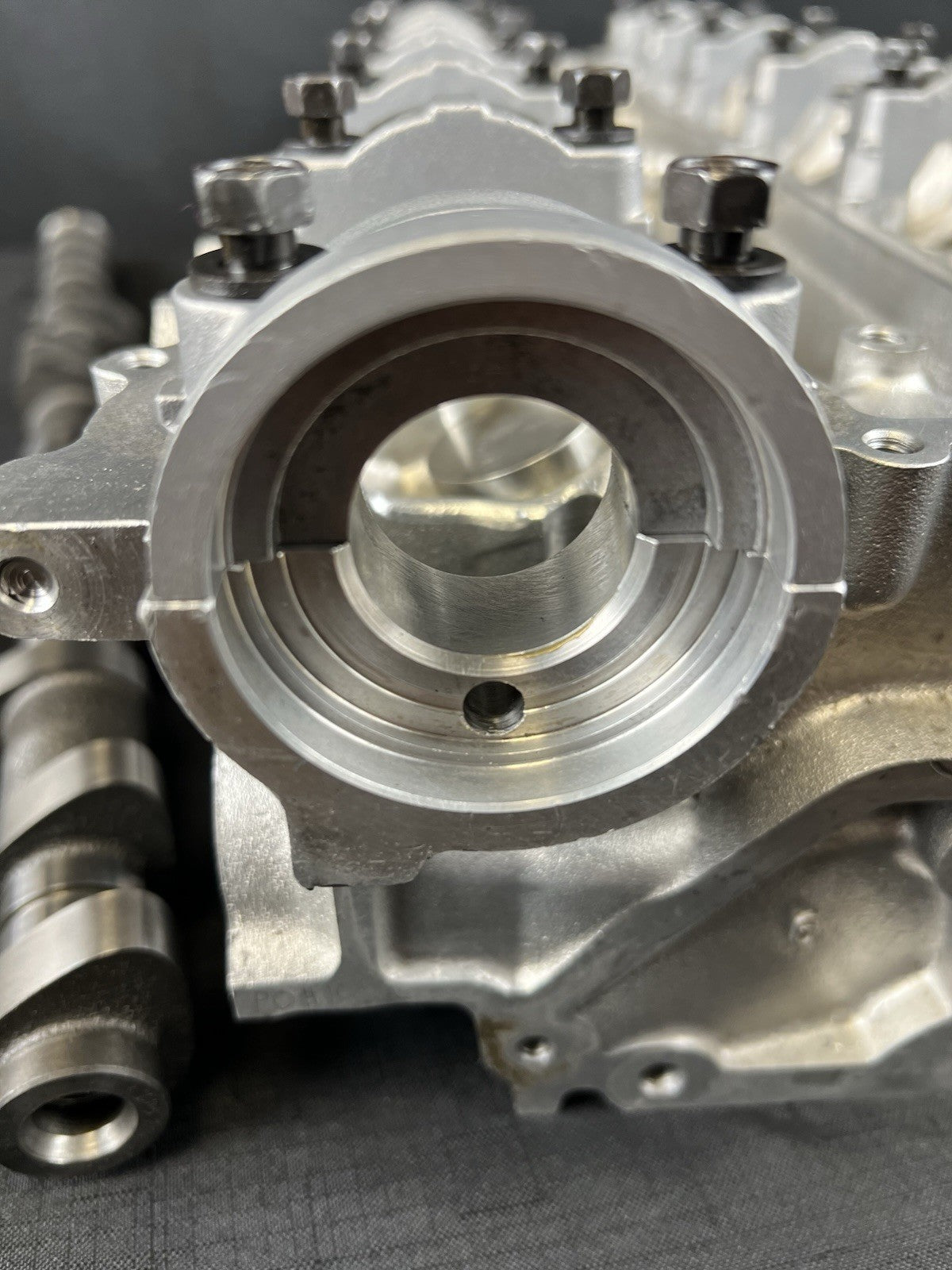

**Please be aware that NO CAM SEALS have been installed on the cylinder head**
"Kindly review the pictures to assess the condition. Please refrain from assuming the inclusion of any additional items not shown in the images. Prior to placing an order, ensure to match the part numbers, or feel free to contact us for confirmation of compatibility.
Your satisfaction is our priority!"
