Speedmaster Cylinder Head Assembly Big Block Ford Hydraulic Roller PCE281.2077

$1,229.99

  • Brand: Speedmaster
  • Availability: 1 In Stock
  • SKU: SDM-PCE281-2077
  • Barcode:

Up for sale is a set of Ford 429 460 275cc 95cc Hydraulic Roller Assembled Speedmaster Cylinder Heads for Big Block Ford engines. This unit is brand new, one of the cylinder heads is out of the original box and the second cylinder head is still in the unopened original box.- Part #:  SDM-PCE281-2077 , PCE281.2077- Brand NewFitment:Big Block Ford 429 460...

Tags:

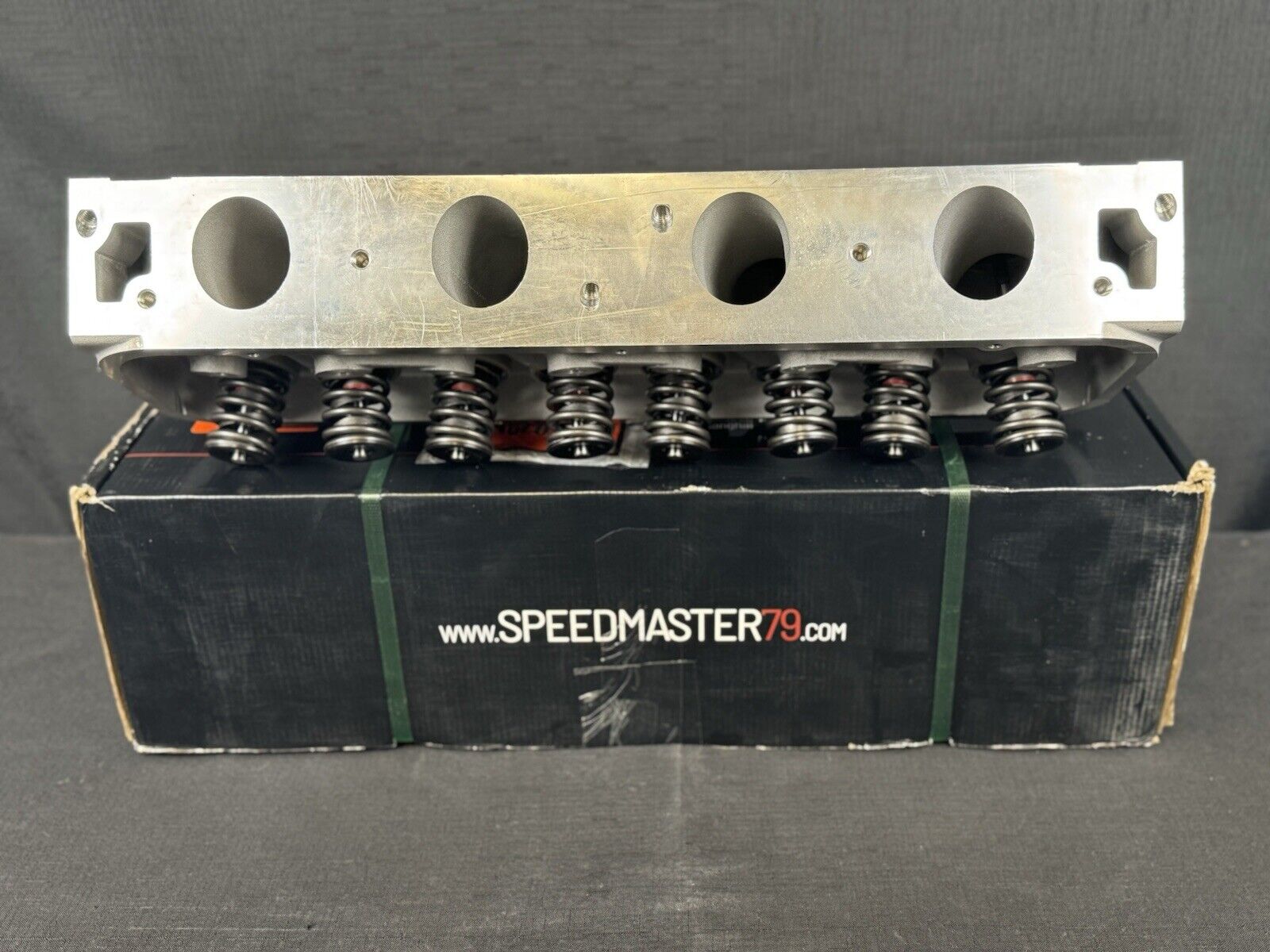

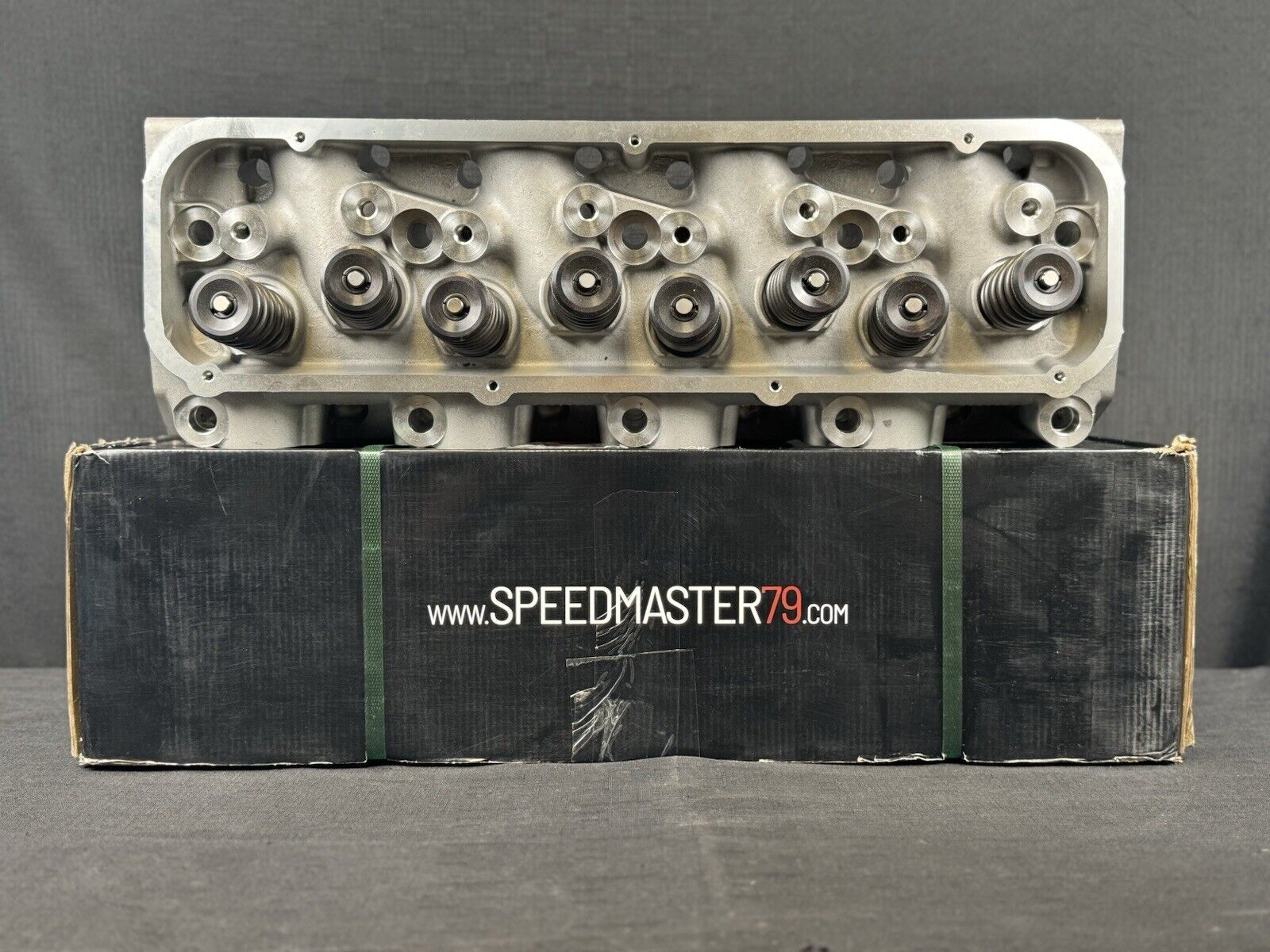

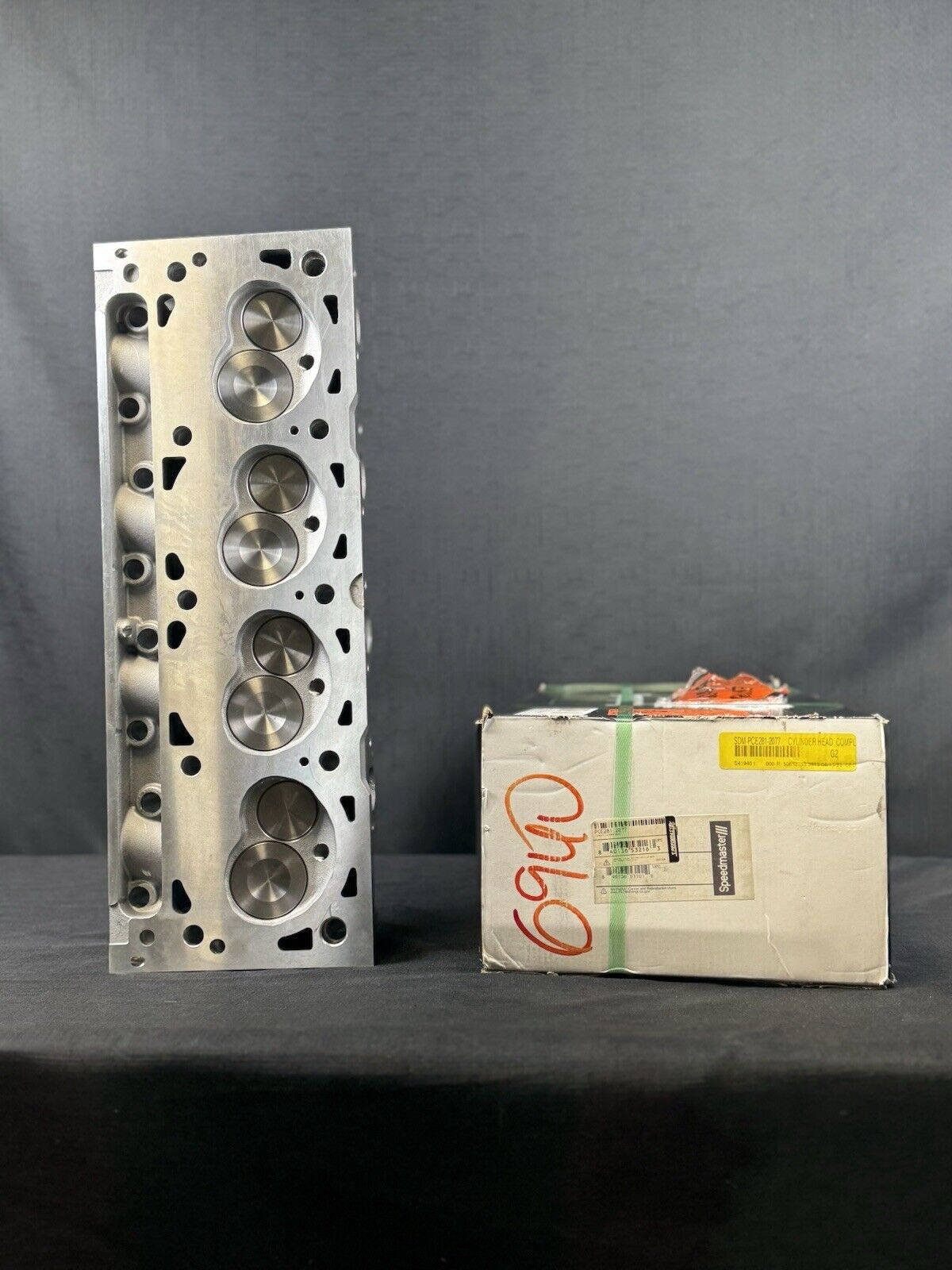

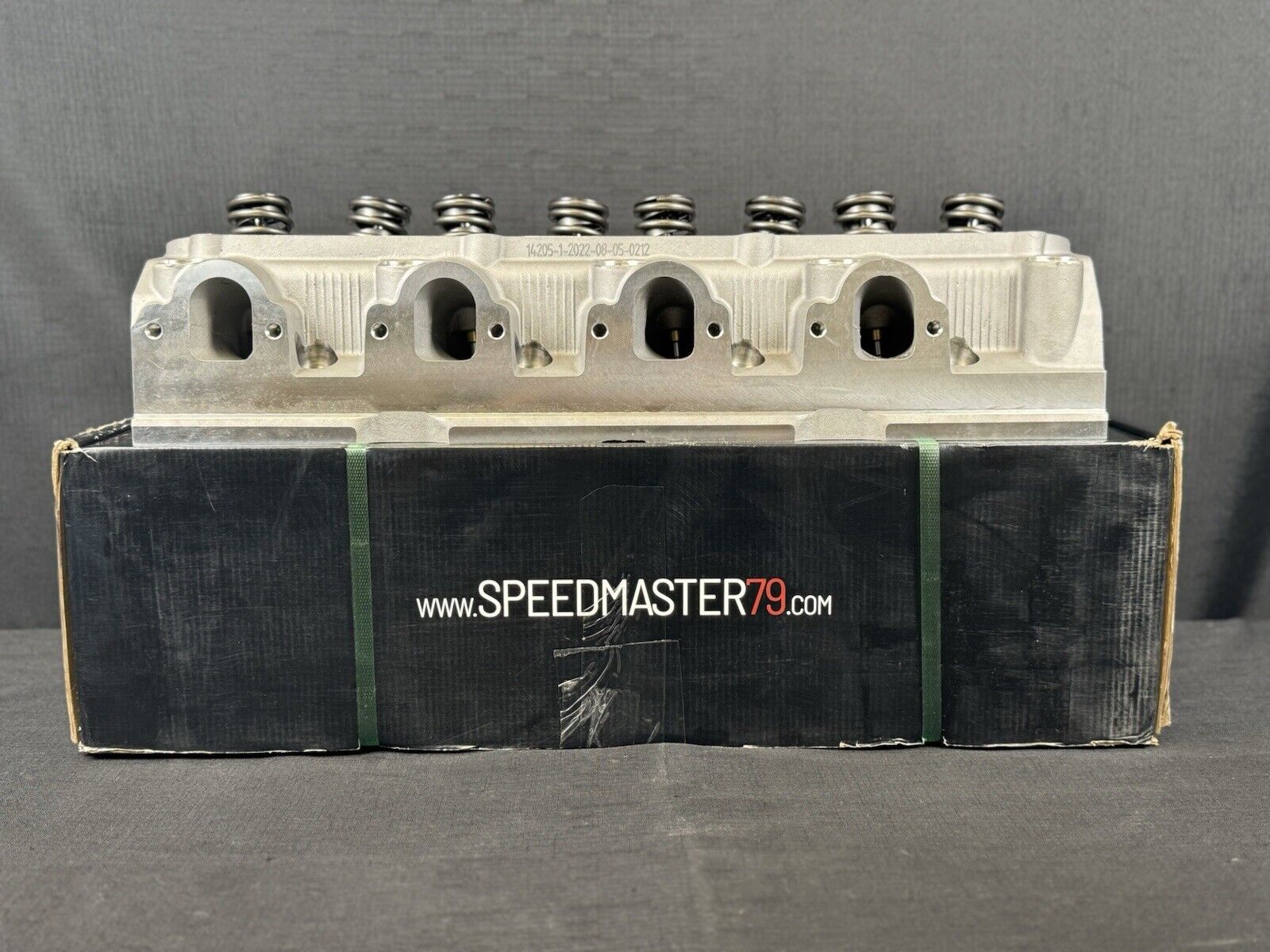

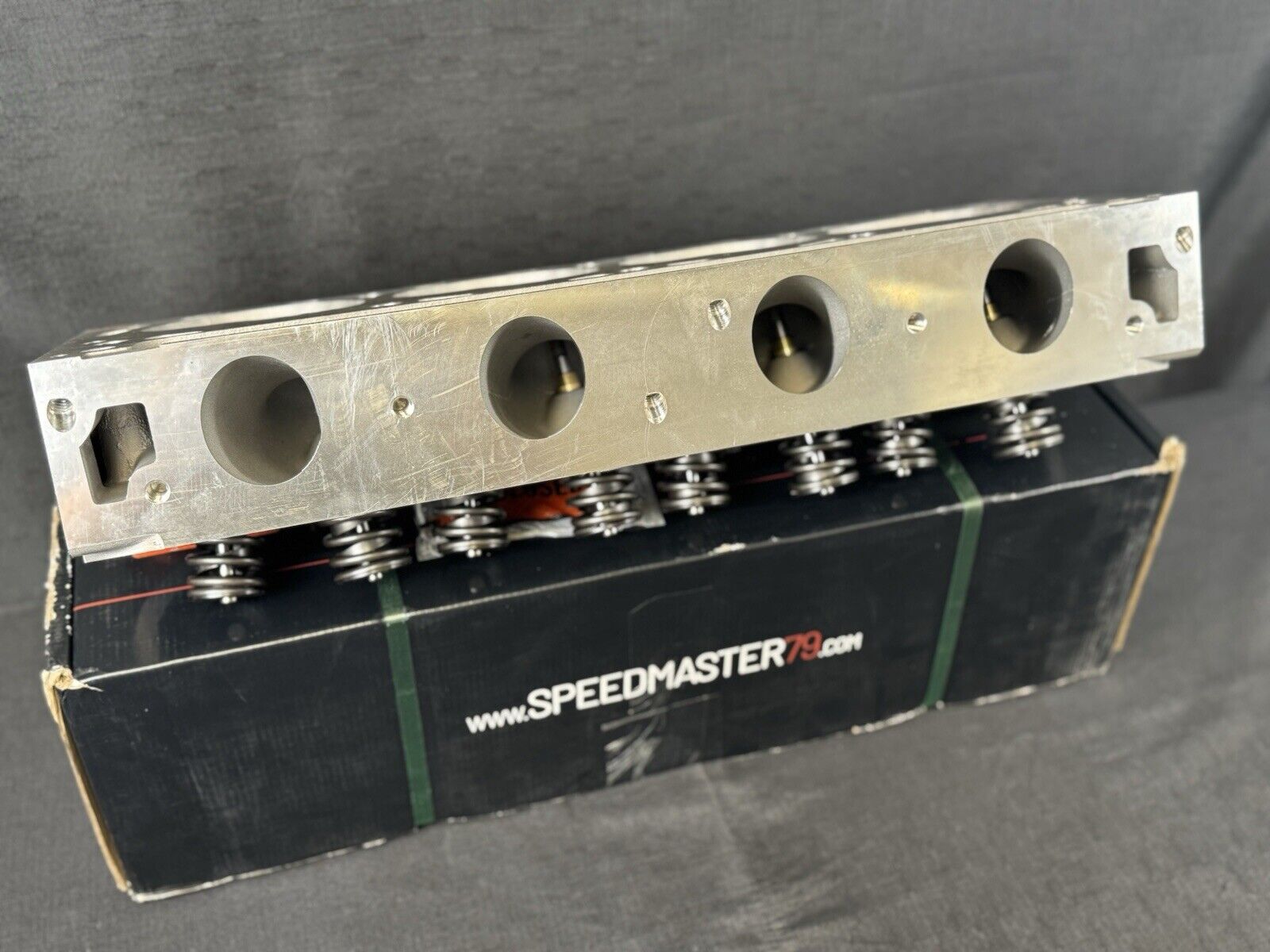

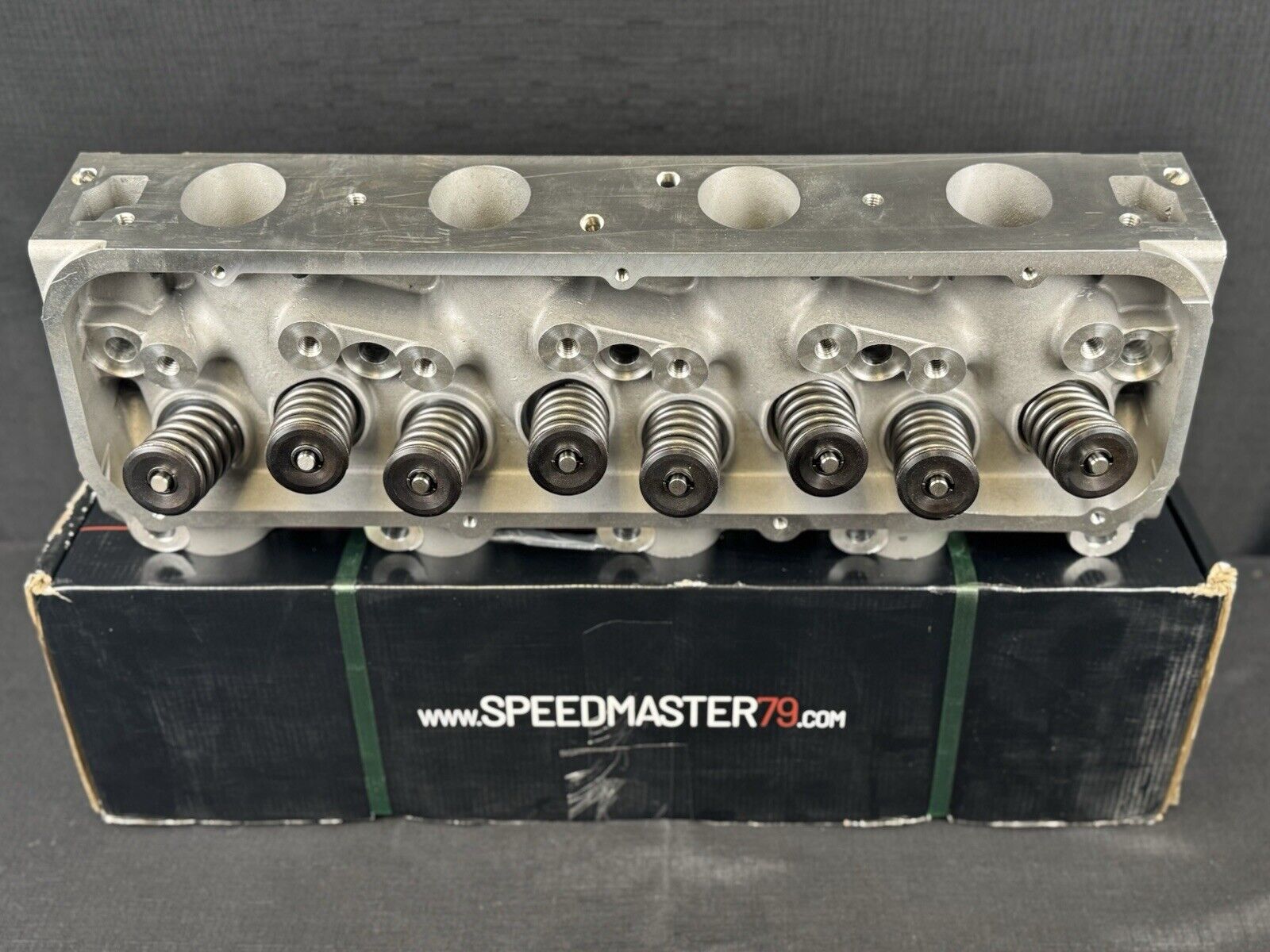

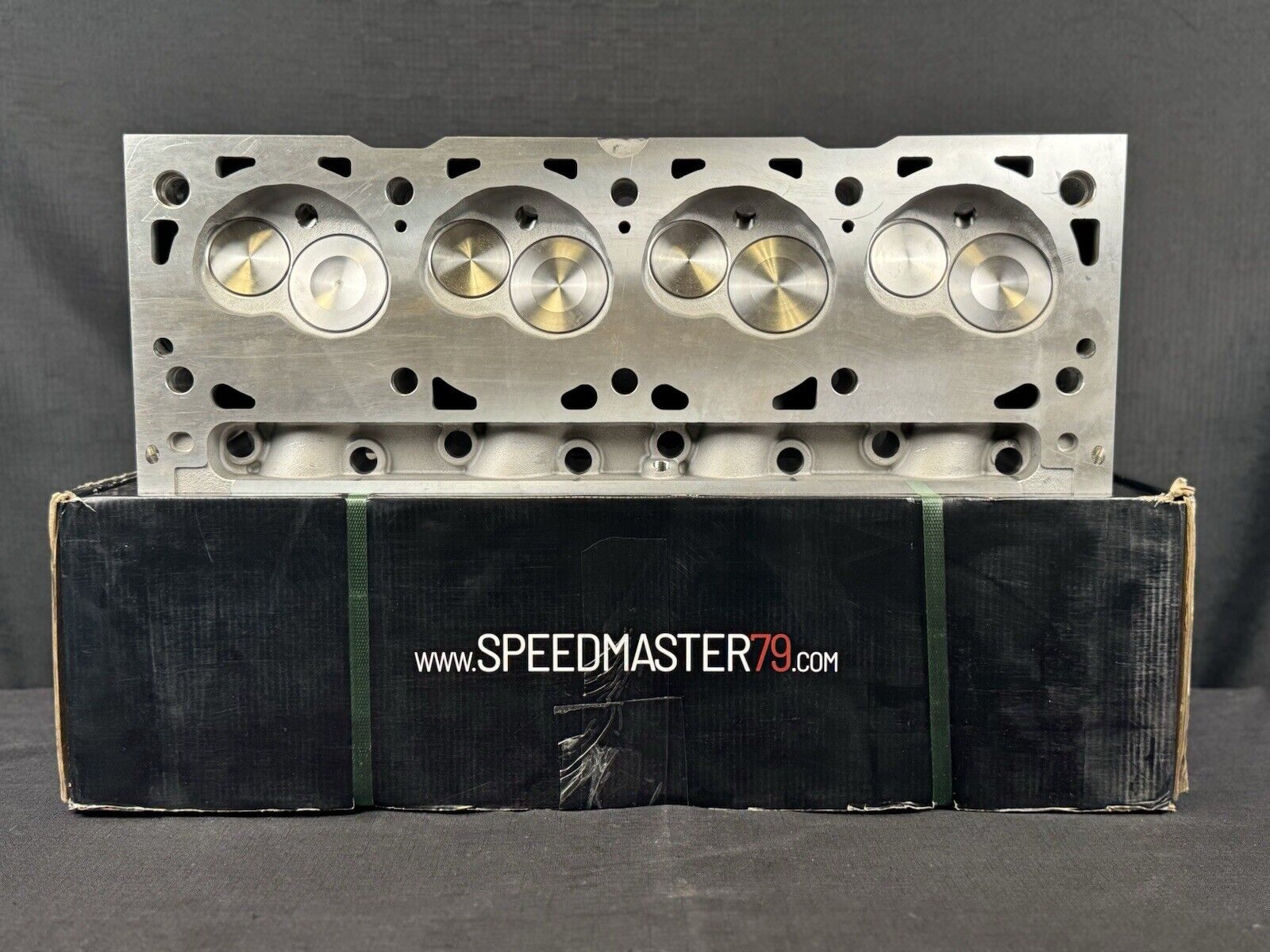

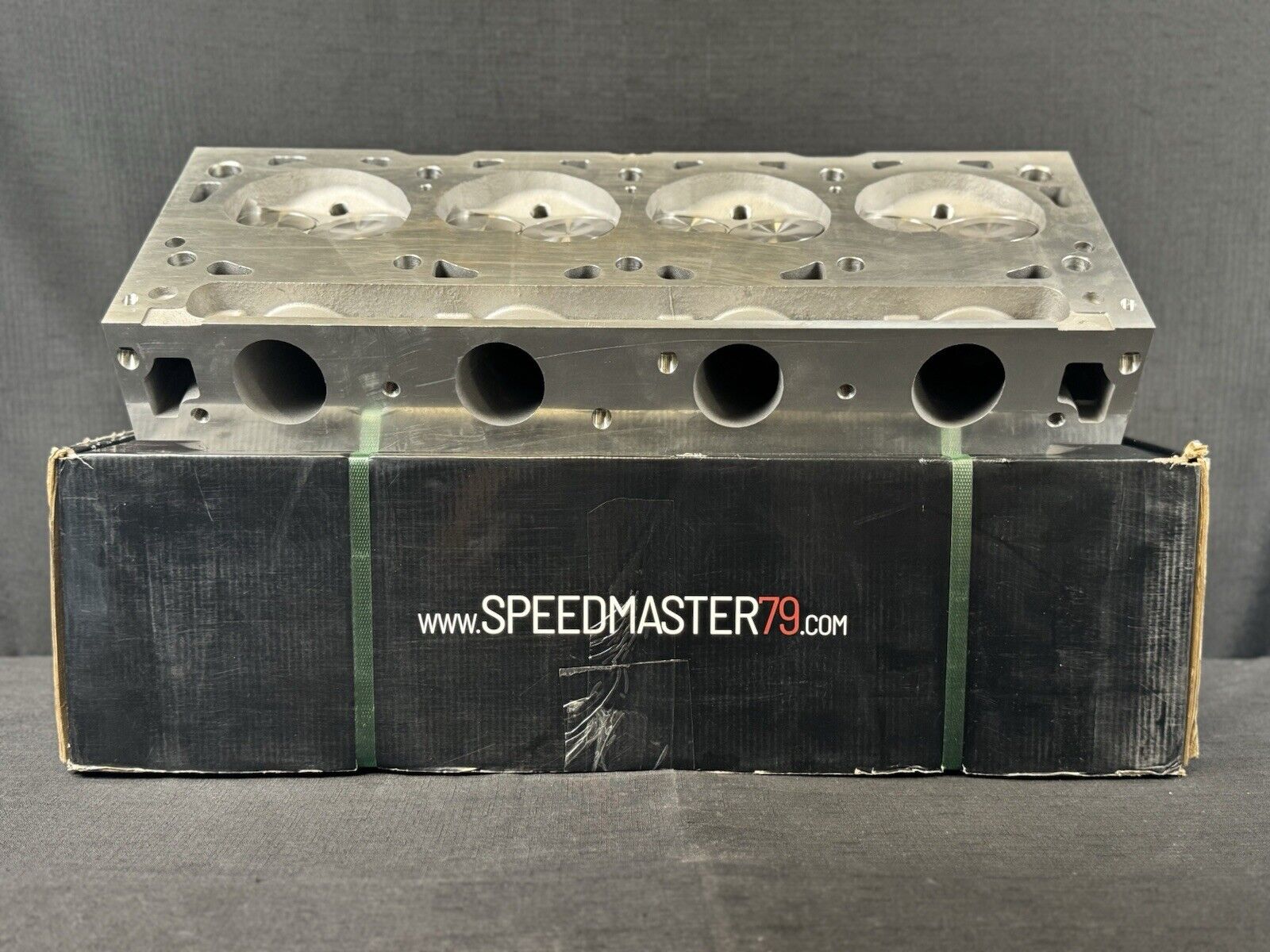

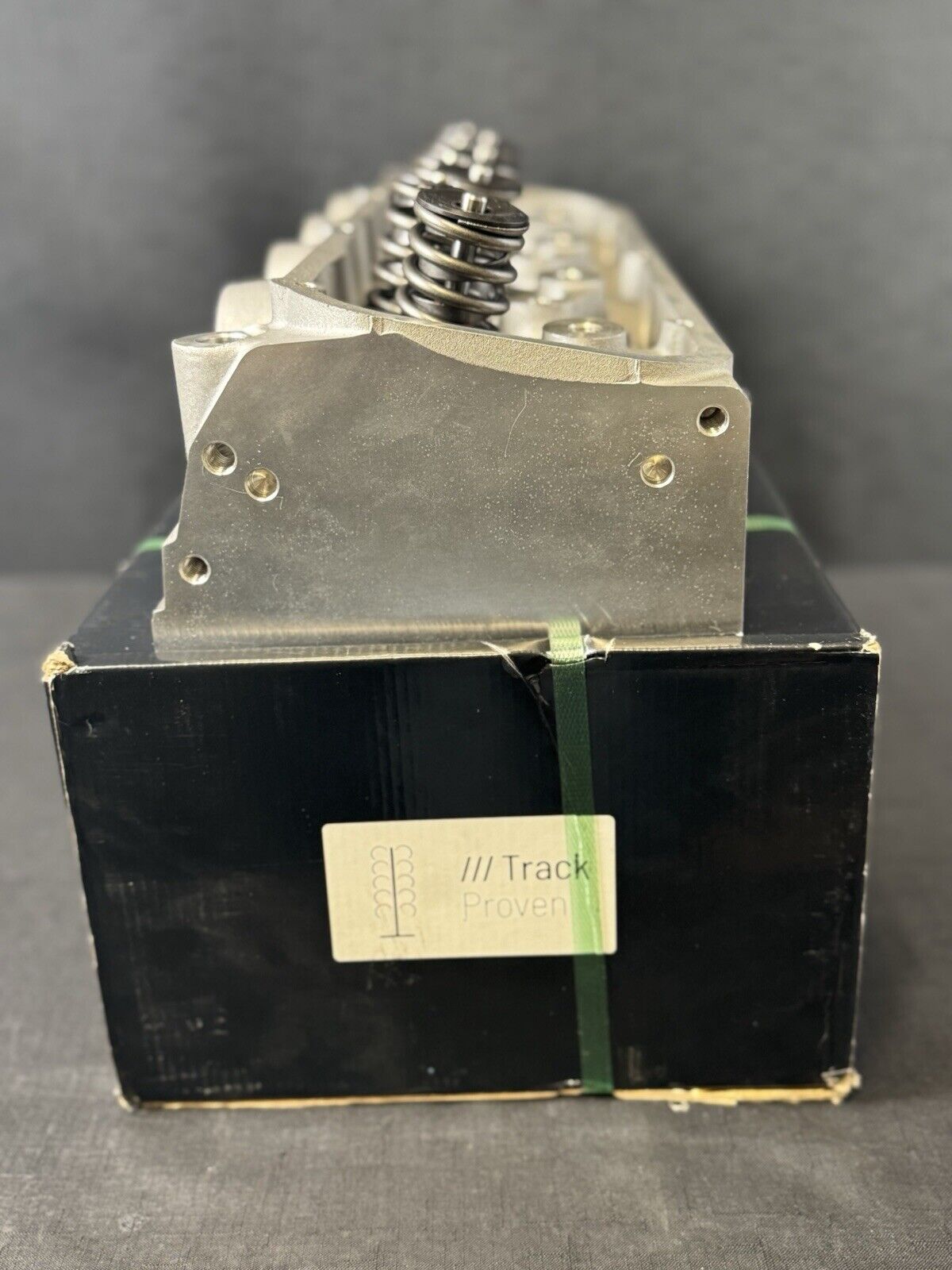

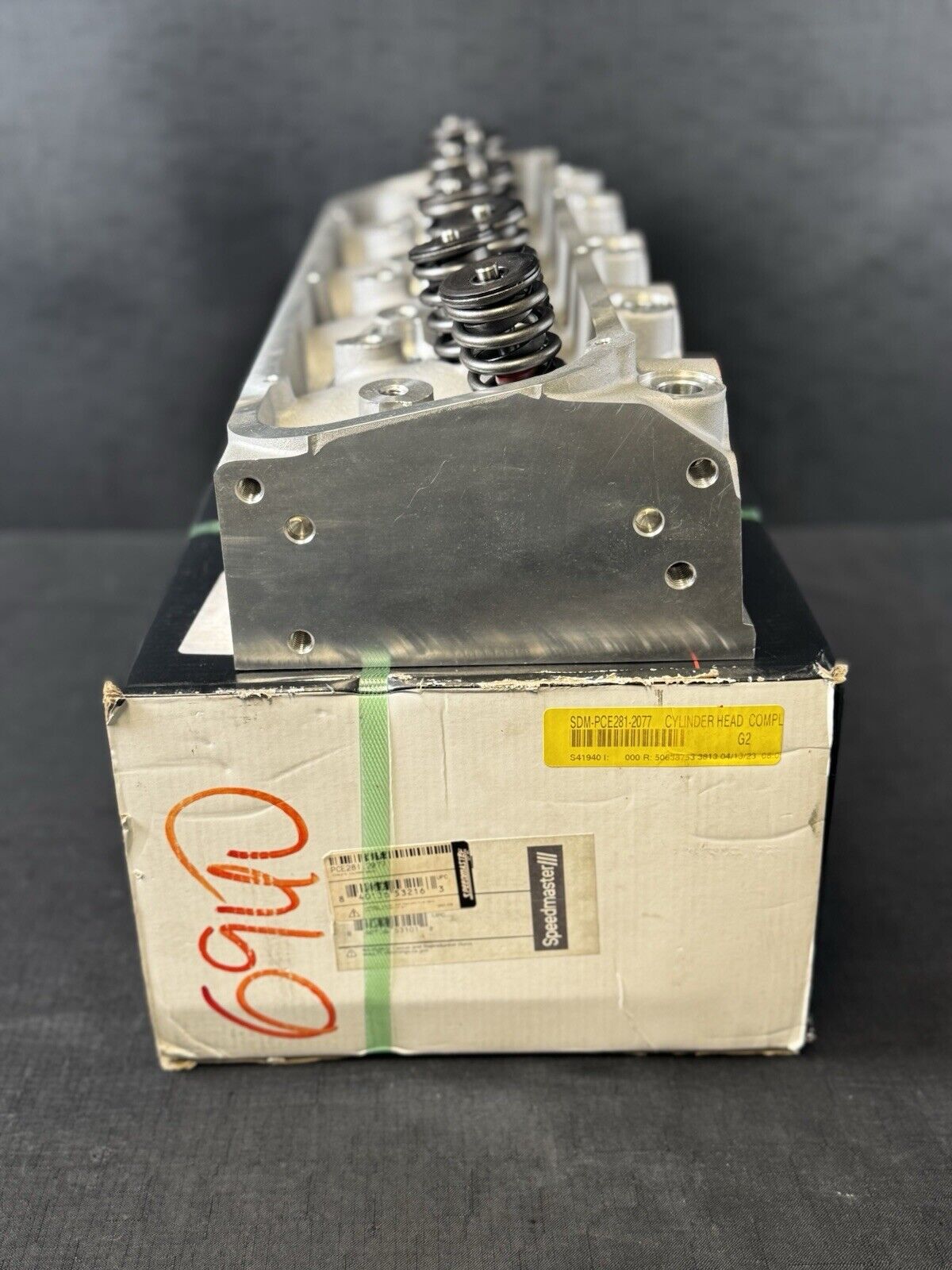

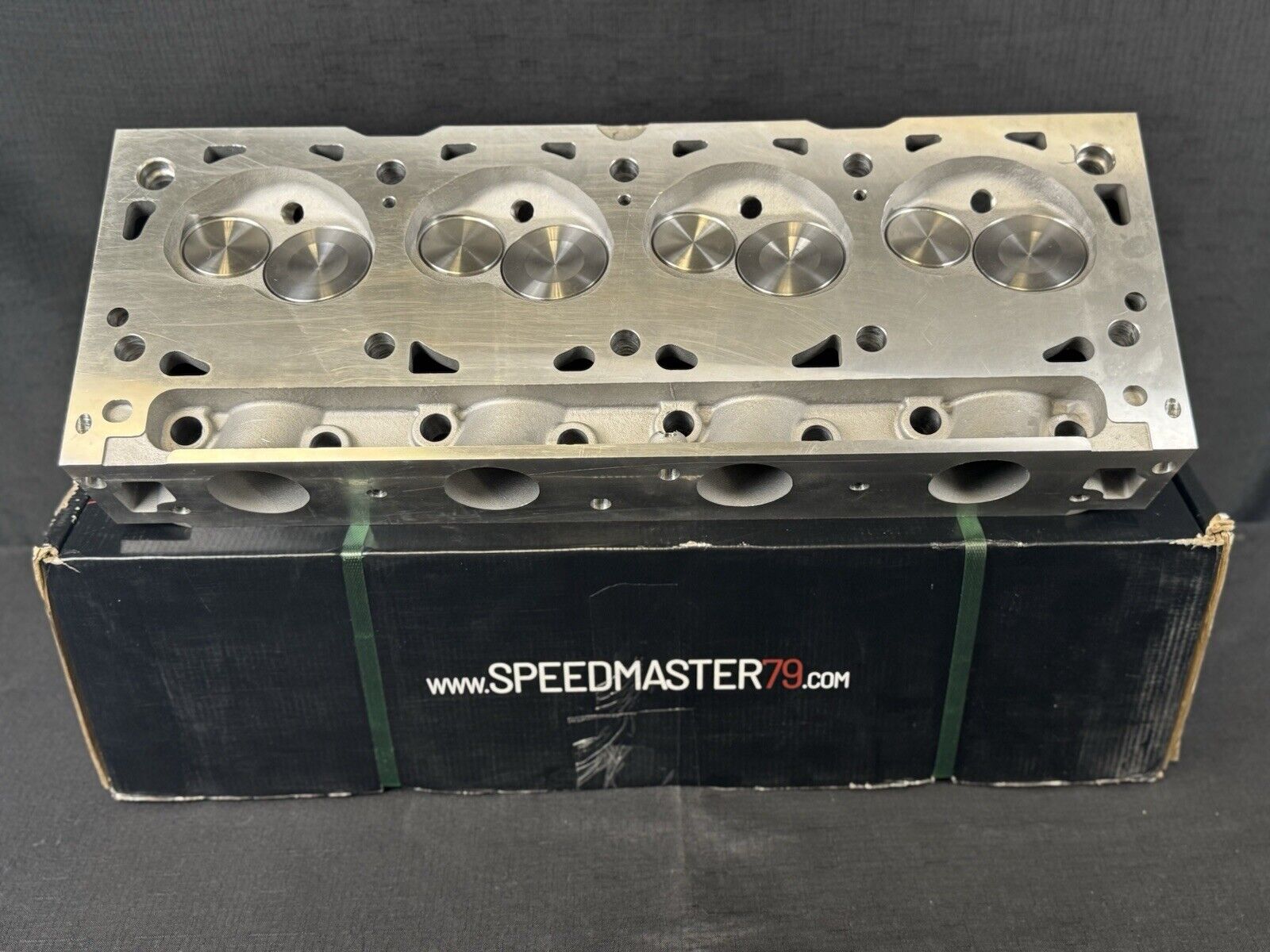

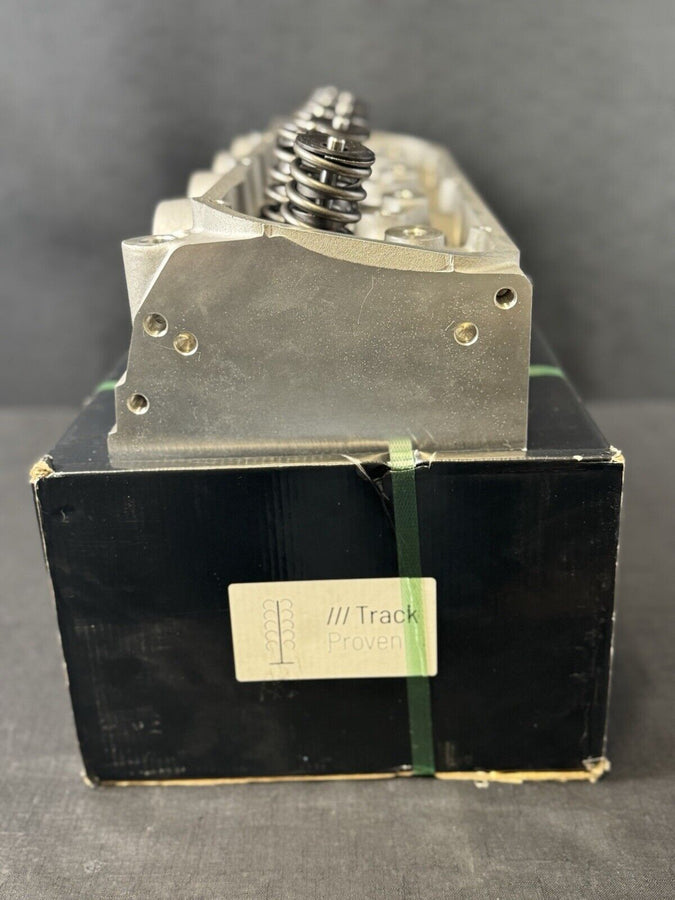

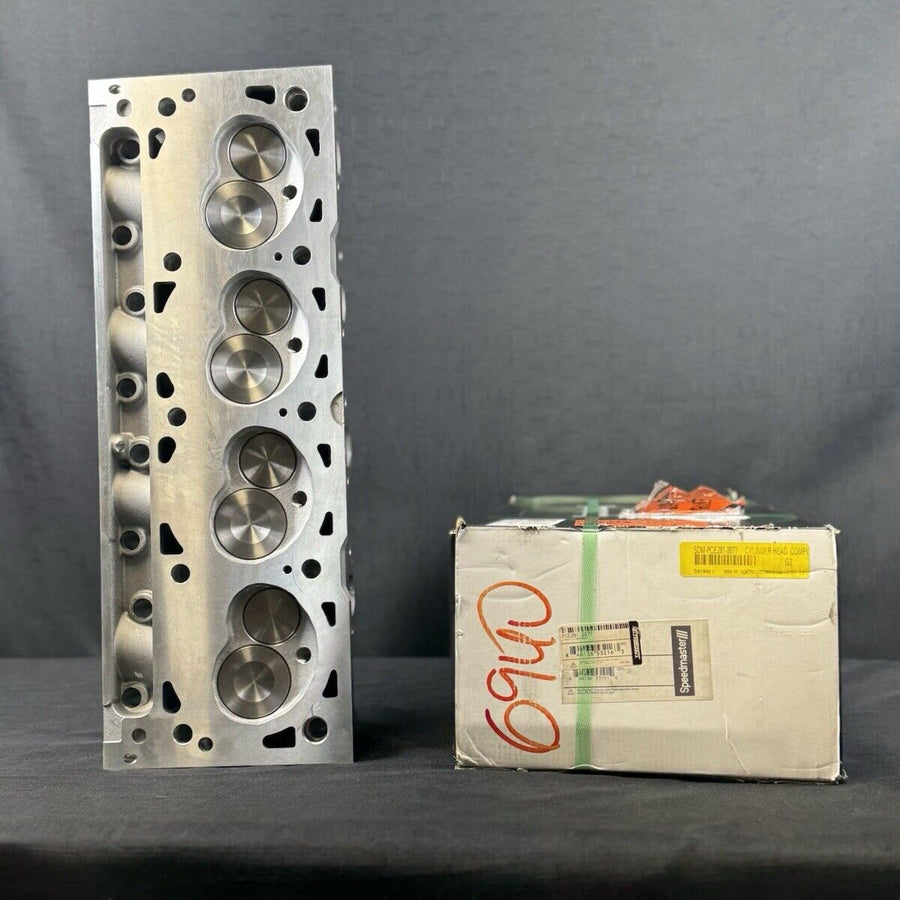

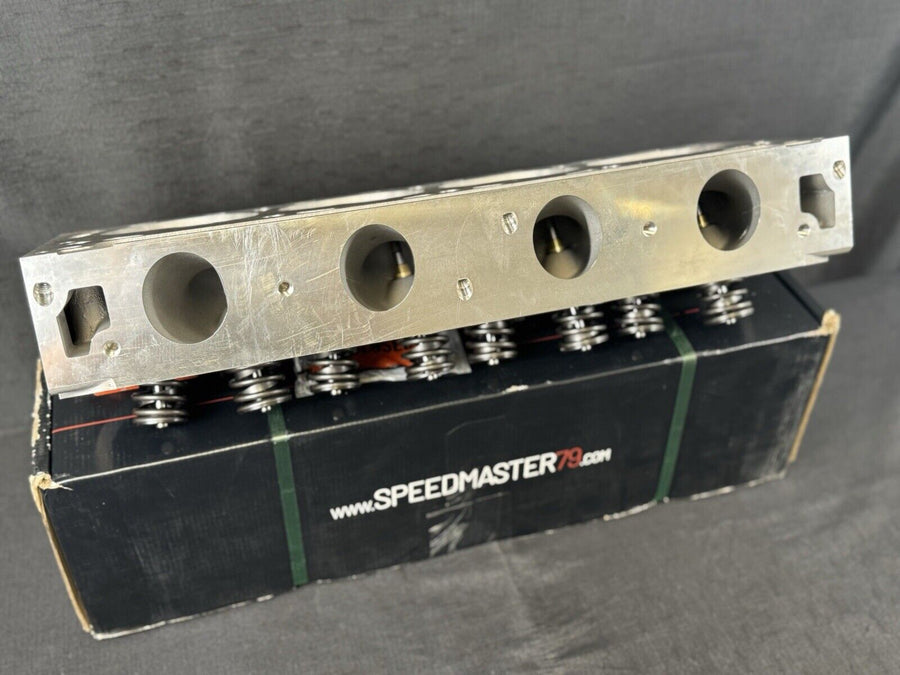

Up for sale is a set of Ford 429 460 275cc 95cc Hydraulic Roller Assembled Speedmaster Cylinder Heads for Big Block Ford engines. This unit is brand new, one of the cylinder heads is out of the original box and the second cylinder head is still in the unopened original box.

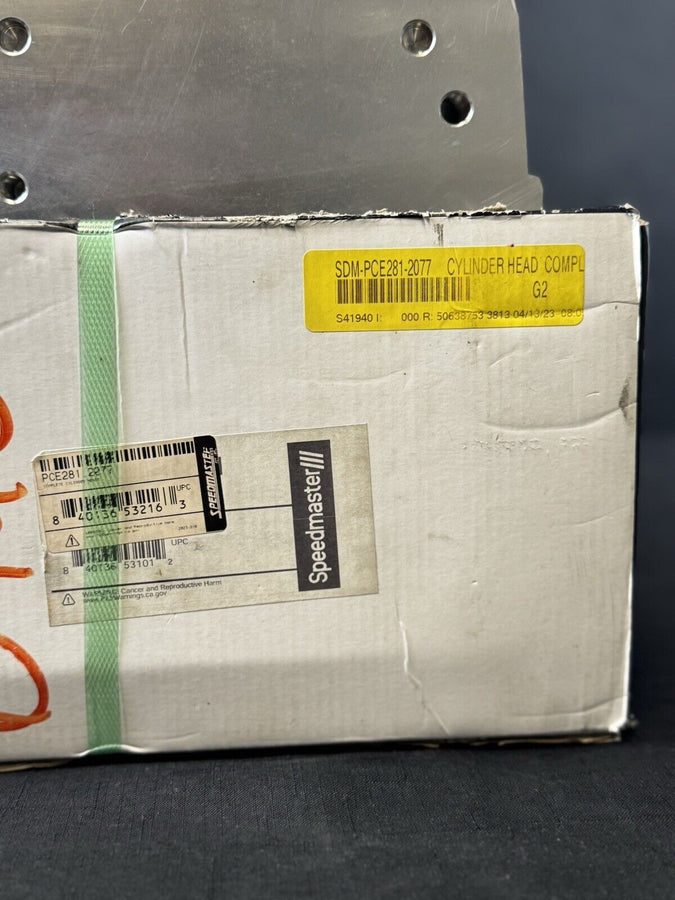

- Part #:  SDM-PCE281-2077 , PCE281.2077

- Brand New

Fitment:

Big Block Ford 429 460 500 cu. in.

Assembly Specifications
Max Lift: .600
Coil Bind: .900
Intake Install: 140lbs @ 1.9
Exhaust Install: 140lbs @ 1.9
Closed Seat Pressure: 140lbs
Open Seat Pressure: 360lbs

Upgrading from a cast iron head to a high-performing and lightweight aluminum head is one of the most effective improvements you can make to your Big Block Ford engine. The best part? It’s now more affordable than ever. Speedmaster's line of Big Block Ford performance heads has consistently delivered exceptional results on the track, in dyno testing, and in features in leading performance magazines.

They offer cylinder heads tailored to a variety of displacement applications, recognizing the growing demand for increased airflow as larger displacement engines become more common. If your goal is to build an engine with 400 to 700 horsepower, Speedmaster Aluminum cylinder heads are an excellent option. Utilizing their "Gravity Die Cast" process, these heads boast superior strength and consistency. Their optimized design also includes a smaller cross-section to enhance air velocity, leading to improved drivability, power, and fuel efficiency.

Speedmaster cylinder heads are available in two configurations: "as-cast" versions for mild street builds and fully CNC-machined versions for serious enthusiasts. The CNC-machined heads are produced using advanced 5-axis machining centers, ensuring precise and cost-effective production. Fully machined combustion chambers and intake and exhaust ports maximize airflow, while CNC-machined chambers offer improved flame control and quench properties. By eliminating human error, CNC porting ensures consistent performance across all ports.


Brand: Speedmaster

Part Number: PCE281.2077

Part Type:    Cylinder Heads



Cylinder Head Style:   Assembled

Cylinder Head Material: Aluminum

Cylinder Head Finish:   Natural

Combustion Chamber Volume (cc):  95 cc

CNC-Machined Combustion Chamber: No

Intake Runner Volume (cc):  275 cc

Exhaust Runner Volume (cc): 90cc

CNC-Machined Intake Runner:    No

CNC-Machined Exhaust Runner: No

Intake Port Shape: Round

Intake Port Location: Standard

Exhaust Port Shape: Square

Exhaust Port Location: Standard

Spark Plug Style: Standard

Comp. Valve Job: No

Intake Valves Included: Yes

Intake Valve Diameter (in): 2.19 in.

Exhaust Valves Included:   Yes

Exhaust Valve Diameter (in): 1.71 in.

Valve Springs Included: Yes

Maximum Valve Lift (in): 0.600 in.

Outside Diameter of Outer Spring (in): 1.550 in.

Damper Spring Included: Yes

Number of Springs Per Valve: Dual

Retainers Included: Yes

Retainer Material: Chromoly steel

Locks Included: Yes

Lock Style: 10 degree

Valve Stem Seals Included: Yes

Valve Stem Seal Style: Positive stop

Rocker Arm Studs Included: No

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: No

Valve Cover Mounting Style: Perimeter Bolt

Accessory Bolt Holes Drilled: Yes

Intake Valve Angle:    20 deg.

Exhaust Valve Angle: 20 deg.

Valve Guides Included: Yes

Valve Guide Material: Bronze

Valve Seats Machined: Yes

Valve Seat Machine Style: 3-angle

Valve Seat Material: Ductile iron

Steam Holes Drilled: No

Oiling Style: Through pushrod

Machined for O-Ring: No

Heat Crossover: No

Quantity: Sold as an assembled pair.

Calculator:  Compression Calculator
