Melling Performance 10295 High Pressure LS Oil Pump - Standard Volume

Melling 10295 High-Pressure Oil Pump

Compatible with: Gen III & IV LS1, LS6, LS2, LS3, 4.8L, 5.3L, 5.7L, 6.0L, and 6.2L engines

The Melling 10295 high-pressure oil pump is an upgraded version of the M295 OE replacement pump, offering a 10% increase in pressure while maintaining stock volume. Designed for high-performance applications, this pump addresses common oil flow and cavitation issues in factory LS oil pumps, which can lead to oil pressure drops and potential engine damage at high RPMs.

• Exclusive rotor design with improved strength
• Hard coat anodized aluminum housing
• Phosphate coated cast iron cover

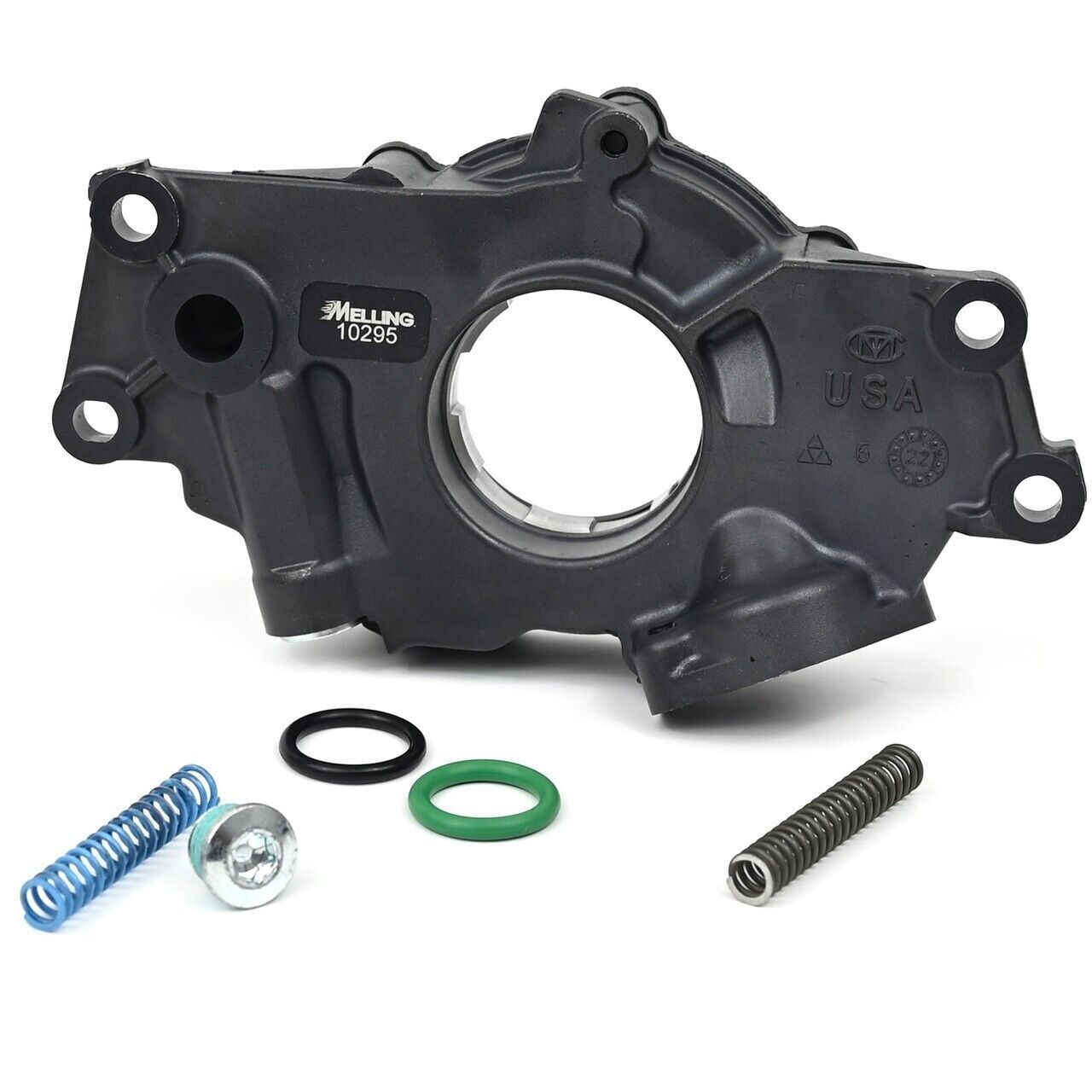

• High pressure (+10 psi) spring installed
• Includes optional standard pressure spring
• Includes optional +25 psi spring for COPO applications
• Threaded pressure relief nut

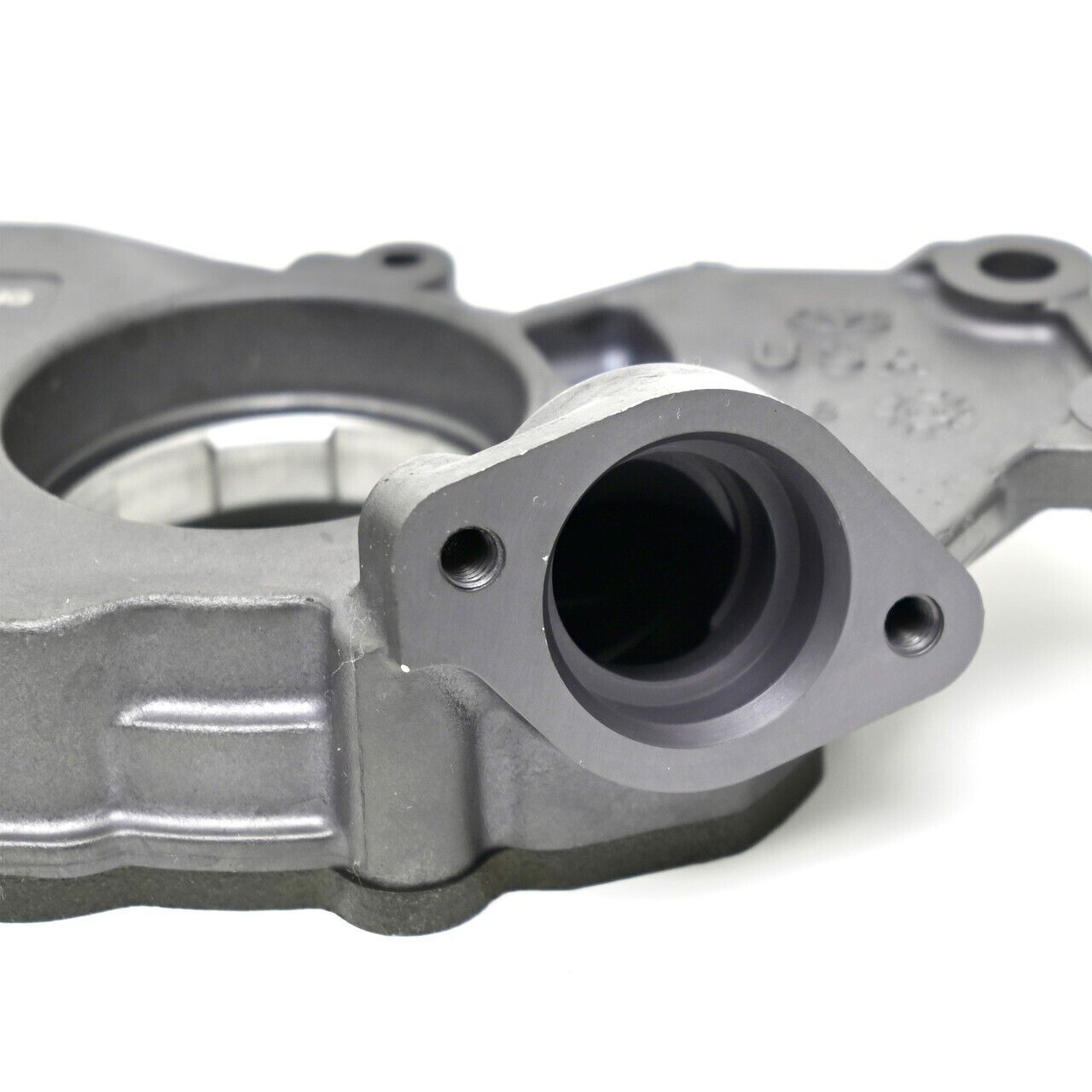

• Uses 7/8” stock bolt-on oil pickup tube assembly
• Includes O-rings for oil pickup tube assembly

Key Features:

• High-pressure performance upgrade for M295 oil pumps
• Stock volume (approx. 6.8 GPM flow rate) with 10% higher pressure
• 33 PSI pressure relief valve spring
• 0.96 cu in/rev displacement

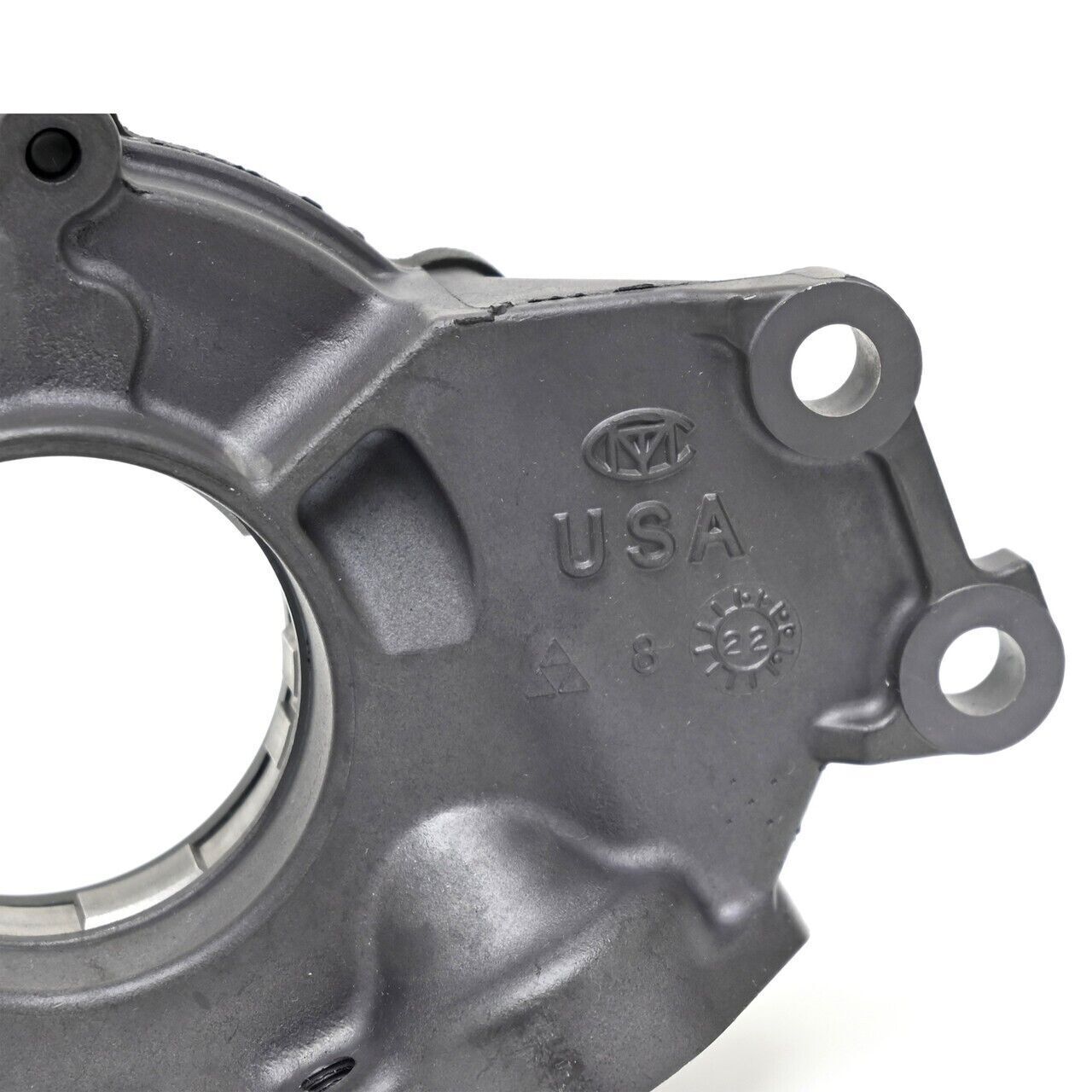

• CNC-machined, hardcoat anodized cast aluminum housing for durability

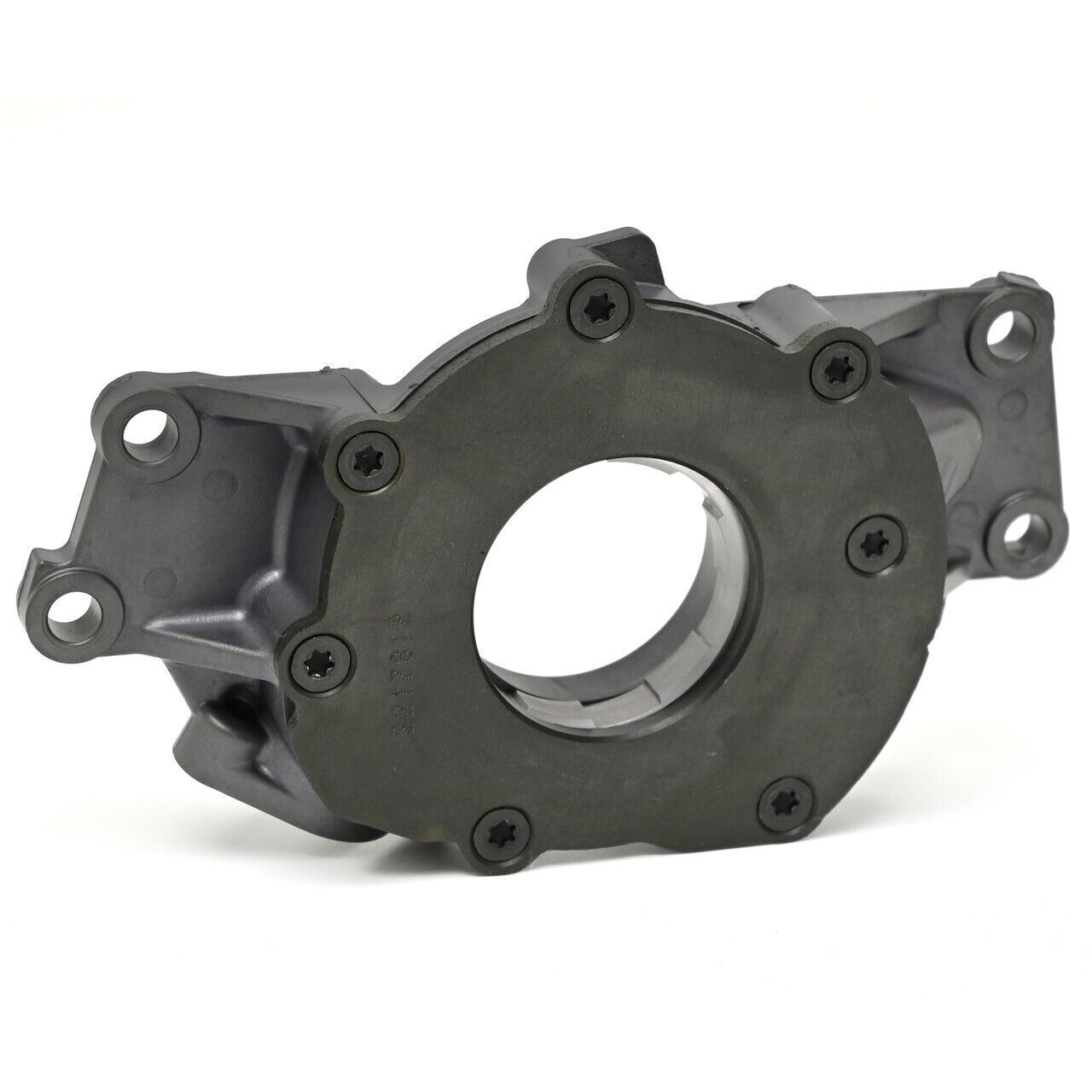

• CNC-machined, phosphate-coated cast iron cover with countersunk screws for increased timing cover clearance
• Screw-in valve plug with an optional lower stock pressure spring included
• Compatible with GM factory oil pickup tubes with 1-1/4" screens

Performance Benefits:

The stock LS oil pump experiences cavitation above 6,200 RPM, reducing oil flow by nearly 1 GPM at 7,000 RPM and aerating the oil, leading to pressure drops and potential oil starvation. This upgraded Melling pump is recommended for engines operating above 6,200 RPM to prevent these issues. It also helps maintain stable oil pressure in setups with oil coolers.

Application Compatibility:

This oil pump is designed for GM Gen III & IV LS and Vortec engines without Active Fuel Management (AFM) or Displacement on Demand (DoD). For AFM/DoD-equipped engines, see Melling part number 689-10355.

Supported Engines:

Gen III LS Blocks:

• LS1, LS6

Gen IV LS Blocks:

• LS2, LS3

Gen III Vortec Engines:

• 4.8L (LR4, LM7)
• 5.3L (LM7, L59, LM4, L33)
• 6.0L (LQ4, LQ9)

Gen IV Vortec Engines:

• 4.8L (LY2, L20)
• 5.3L (LH8, LH9)
• 6.0L (L98, L96, LY6, L9H)
• 6.2L (L92, L9H)

The Melling 10295 oil pump provides a reliable solution for maintaining high oil pressure and flow in high-performance LS and Vortec engines, ensuring durability and long-term performance under demanding conditions.

Specifications:

• Additional Pressure Over Stock Percentage: 10 PSI
• Adjustable Bypass Pressure: Yes
• Alternate Pressure Springs Included: Yes
• Drive Type: Crankshaft
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Height: 4.45 IN
• Height: 116.0 MM
• Housing Finish: Anodized Hardcoat
• Housing Material: Cast Aluminum
• Mounting Hole Diameter: 8.86 MM
• Mounting Hole Diameter: 0.34 IN
• Mounting Hole Quantity: 4
• Oil Pump Pressure Type: High Pressure
• Oil Pump Type: Rotary
• Oil Pump Volume Type: Standard Volume
• Pick Up Tube Diameter: 0.875 IN
• Pick Up Tube Diameter: 22.225 MM
• Width: 8.0 IN
• Width: 204.0 MM
