Kelford Cams 286/292 | Drag Racing Audi RS3 DAZA DNWA Camshafts | 273B

Manufacturer Part Number: 273-B

VEHICLE COMPATIBILITY:
Audi RS3 2.5 TFSI DAZA/DNWA EA855 EVO
Audi TTRS 2.5 TFSI DAZA/DNWA EA855 EVO

CAMSHAFT APPLICATION VERIFIED:

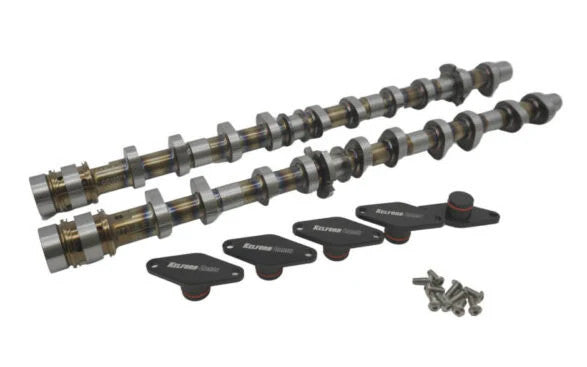

Kelford Cams Audi RS3 DAZA/DNWA EA855 EVO Performance Camshaft Set

CAMSHAFT PROFILE:
286°/292° | 11.50mm/11.50mm

Compatibility Data:
Make: Audi; Model: RS3; Engine: 2.5L TFSI DAZA/DNWA EA855 EVO
Make: Audi; Model: TTRS; Engine: 2.5L TFSI DAZA/DNWA EA855 EVO

Drag racing camshafts suited to high-rpm power. Designed for Audi RS3 DAZA/DNWA engines making 1400+hp using 75mm-83mm turbos. Requires KVS273-BT valve spring upgrade. A 7mm dowel pin is supplied to limit intake cam gear advance when using OEM piston designs. For best results, fly cut pistons for maximum stroke and check piston-to-valve clearance. Kelford Cams deletes the AVS variable exhaust lift system.
