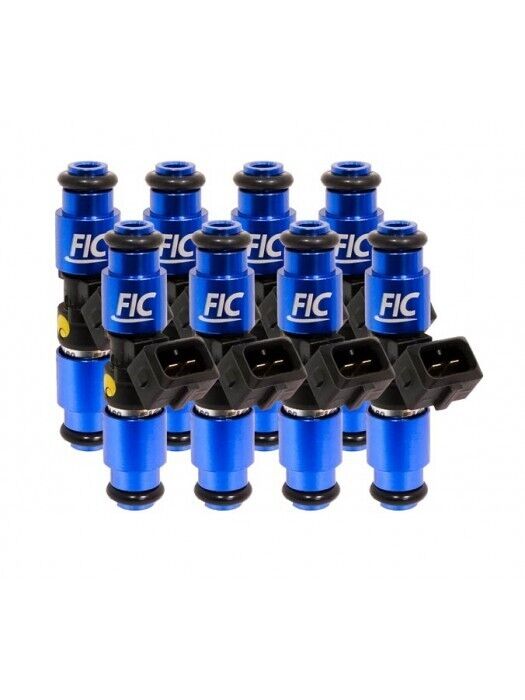

FIC Injectors Chevrolet LS1, LS6 1650cc (180 lbs/hr @58) E85 Able IS30

FIC Injectors Chevrolet LS1, LS6 1650cc (180 lbs/hr @58) E85 Able IS301-1650H

$1,599.99

Brand: Chevrolet

Availability: 1 In Stock
SKU: EB-305585396161
Barcode:

LS1 Fuel Injector Clinic Injector Set: 8x1650cc/min (160lbs/hr) at 3 bar (43.5psi) fuel pressure and 180lbs/hr (1900cc/min) at OE 58psi (4 bar) fuel pressure. Saturated / High Impedance Injectors. This injector set features easy to install, drop-in fitment with the factory style connector no plug conversion required! Utilizing the latest injector technology and featuring state of the art matching...

Tags:

Description

LS1 Fuel Injector Clinic Injector Set: 8x1650cc/min (160lbs/hr) at 3 bar (43.5psi) fuel pressure and 180lbs/hr (1900cc/min) at OE 58psi (4 bar) fuel pressure. Saturated / High Impedance Injectors. This injector set features easy to install, drop-in fitment with the factory style connector no plug conversion required! Utilizing the latest injector technology and featuring state of the art matching with Data Match Technology. Plug and Play GM ECU Data available on our website.

Fuel Injector Clinics 1650cc/min high impedance injector is the largest high impedance injector compatible with all race fuels and has excellent idle performance in street driven cars while still providing enough fuel to support higher horsepower output on both E85 and gasoline.

The 1650cc high impedance injector can be used with any fuel type based on the stainless alloy valve construction. It is compatible with pump gasoline, E85, Q16, VP Import, FTW and other MTBE oxygenated race fuels!

FITMENT SPECIFICATIONS
Bottom O-ring Outer Diameter	14mm
Cylinder Quantity	8
Height	64mm
Impedance	High-Z
Top O-ring	14mm
HORSEPOWER SUPPORTED
Engine Aspiration	naturally aspirated
Fuel Pressure	58
WHP on E85 at 43psi 90%DC NA	1479.56
WHP on E85 at 43psi 90%DC Supercharged	1345.05
WHP on E85 at 43psi 90%DC Turbo	1232.97
WHP on E85 at 58psi 90%DC NA	1708.89
WHP on E85 at 58psi 90%DC Supercharged	1553.54
WHP on E85 at 58psi 90%DC Turbo	1424.08
WHP on Gas at 43psi 90%DC NA	1923.43
WHP on Gas at 43psi 90%DC Supercharged	1748.57
WHP on Gas at 43psi 90%DC Turbo	1602.86
WHP on Gas at 58psi 90%DC NA	2221.56
WHP on Gas at 58psi 90%DC Supercharged	2019.60
WHP on Gas at 58psi 90%DC Turbo	1851.30
