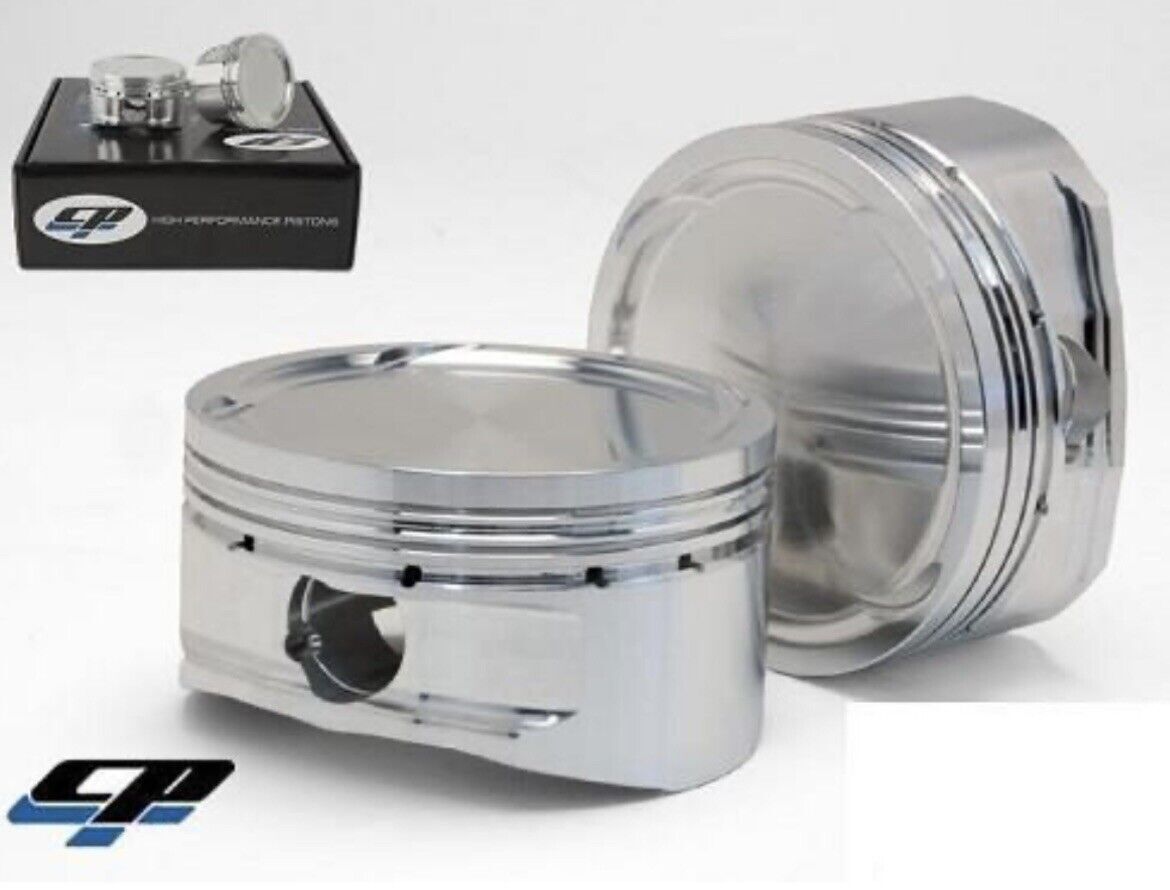

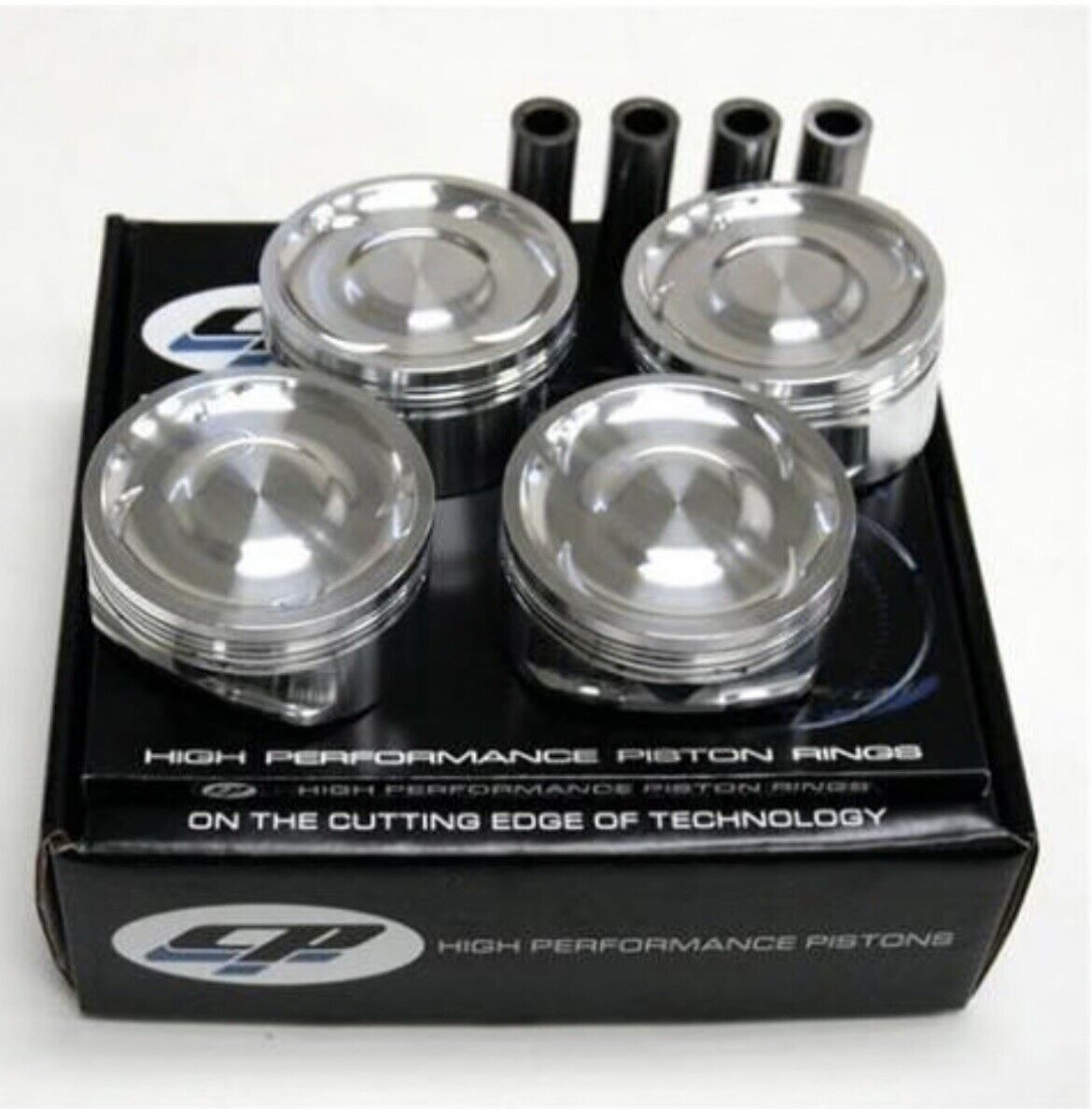

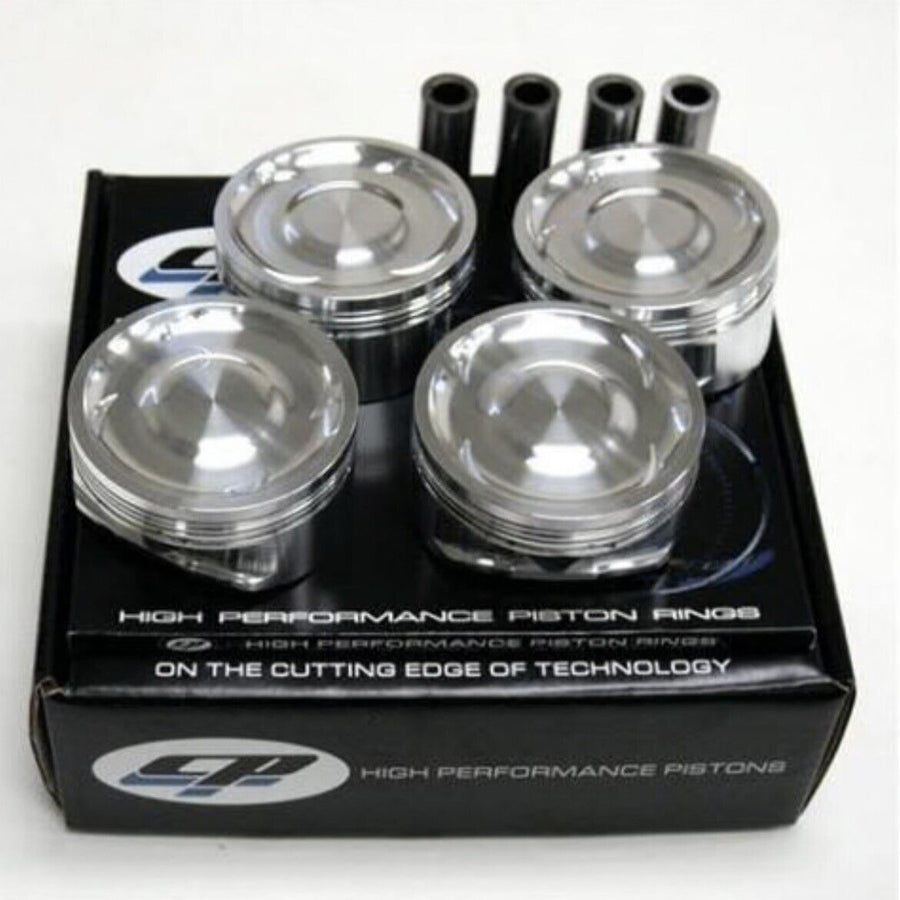

CP Pistons 2G DSM Eclipse 9.0:1 85.5mm EVO VIII 8 IX 9 9.5:1 SC7201
$845.15
CP pistons are available standard or oversized. They are compatible with oversize valves, higher lift cams and high performance rings. CP pistons represent the highest quality and are engineered for maximum power.STANDARD FEATURES INCLUDE:-Deep valve relief depth accommodates high lift camshaft-Made for +1mm valve sizes-Custom skirt cam and barrel design-Accumulator grooves-High strength aluminum forgings-High performance rings-Fully CNC machined and balanced to...
Tags:
CP pistons are available standard or oversized. They are compatible with oversize valves, higher lift cams and high performance rings. CP pistons represent the highest quality and are engineered for maximum power.
STANDARD FEATURES INCLUDE:
-Deep valve relief depth accommodates high lift camshaft
-Made for +1mm valve sizes
-Custom skirt cam and barrel design
-Accumulator grooves
-High strength aluminum forgings
-High performance rings
-Fully CNC machined and balanced to +/- 1 gram
-Wrist pins included at no additional cost
-Double pin oilers, force fed oil ring
-Pick lock grooves for easy lock removal
-Pin fitting included
STANDARD FEATURES INCLUDE:
-Deep valve relief depth accommodates high lift camshaft
-Made for +1mm valve sizes
-Custom skirt cam and barrel design
-Accumulator grooves
-High strength aluminum forgings
-High performance rings
-Fully CNC machined and balanced to +/- 1 gram
-Wrist pins included at no additional cost
-Double pin oilers, force fed oil ring
-Pick lock grooves for easy lock removal
-Pin fitting included
Car Make: Mitsubishi
Car Model: Eagle Talon / Eclipse / 2G DSM / Evo 1-9
Years: 1993-1999 DSM, 1992-2006 EVO
Engine: 4G63T 7-Bolt
Included Ring Set: RS1616-3366-0
Compression Ratio: 9.0:1 (DSM) / 9.5:1 (EVO)
Dome CC: -9.2 cc
Head CC: 47 cc (DSM) / 43 cc (EVO)
Gram Weight: 328 g
Pin Size: 22mm
Compression Height: 1.370"
Rod Length: 150mm
Stroke: 88mm
Bore: 85.5mm
Material: 2618 Alloy
Bore Size: +0.5mm
Standard Pin (Included): 866-2500-20CP1C
Upgraded Pin (Not Included): 866-2500-25CP3C
Pin Locks (Included): 866 063 SWL
Ring Part#: CPN 3366
Car Model: Eagle Talon / Eclipse / 2G DSM / Evo 1-9
Years: 1993-1999 DSM, 1992-2006 EVO
Engine: 4G63T 7-Bolt
Included Ring Set: RS1616-3366-0
Compression Ratio: 9.0:1 (DSM) / 9.5:1 (EVO)
Dome CC: -9.2 cc
Head CC: 47 cc (DSM) / 43 cc (EVO)
Gram Weight: 328 g
Pin Size: 22mm
Compression Height: 1.370"
Rod Length: 150mm
Stroke: 88mm
Bore: 85.5mm
Material: 2618 Alloy
Bore Size: +0.5mm
Standard Pin (Included): 866-2500-20CP1C
Upgraded Pin (Not Included): 866-2500-25CP3C
Pin Locks (Included): 866 063 SWL
Ring Part#: CPN 3366
