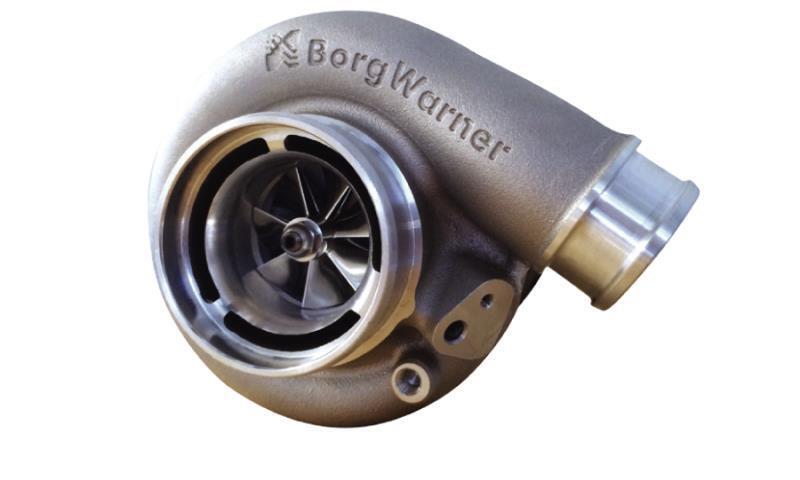

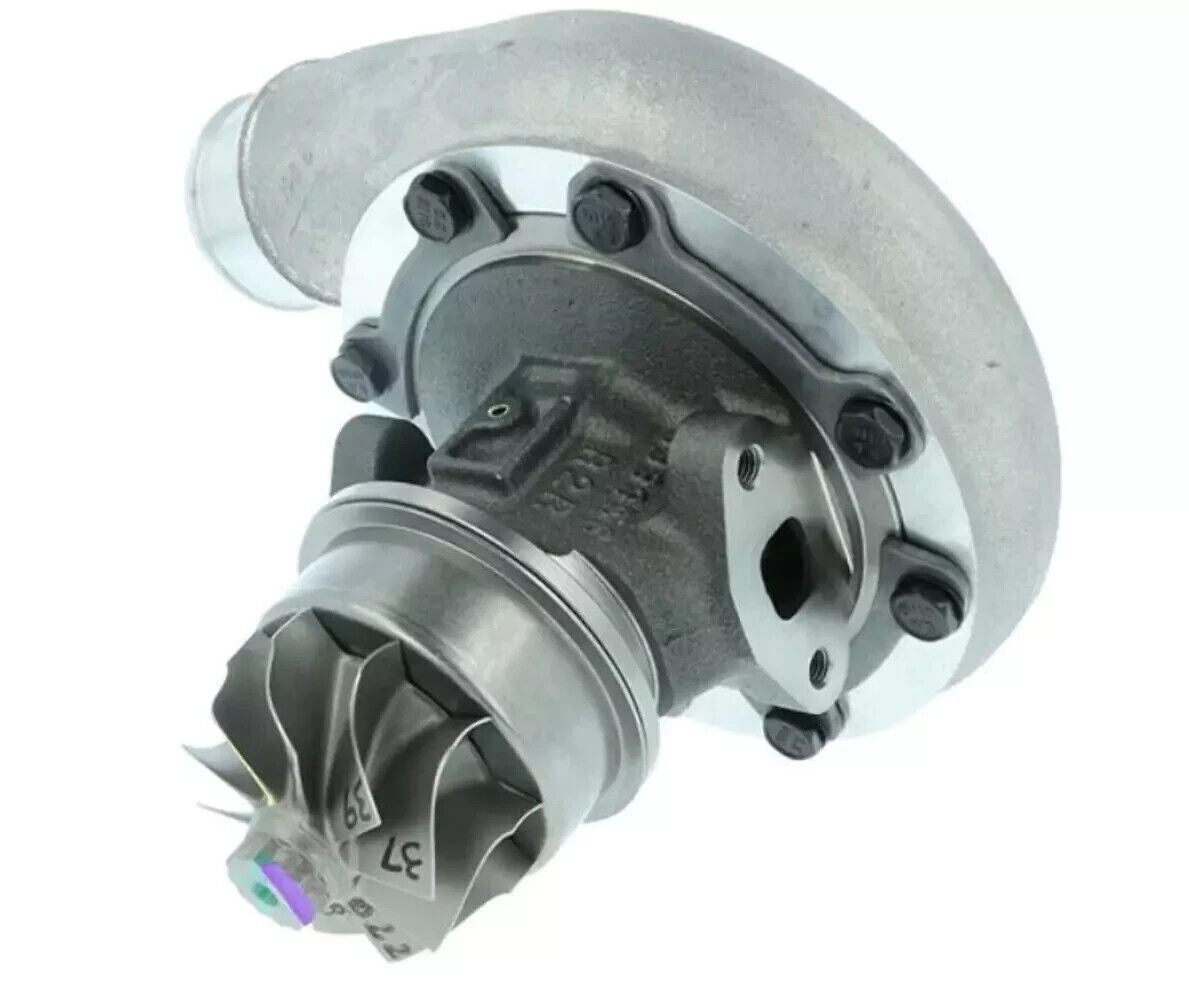

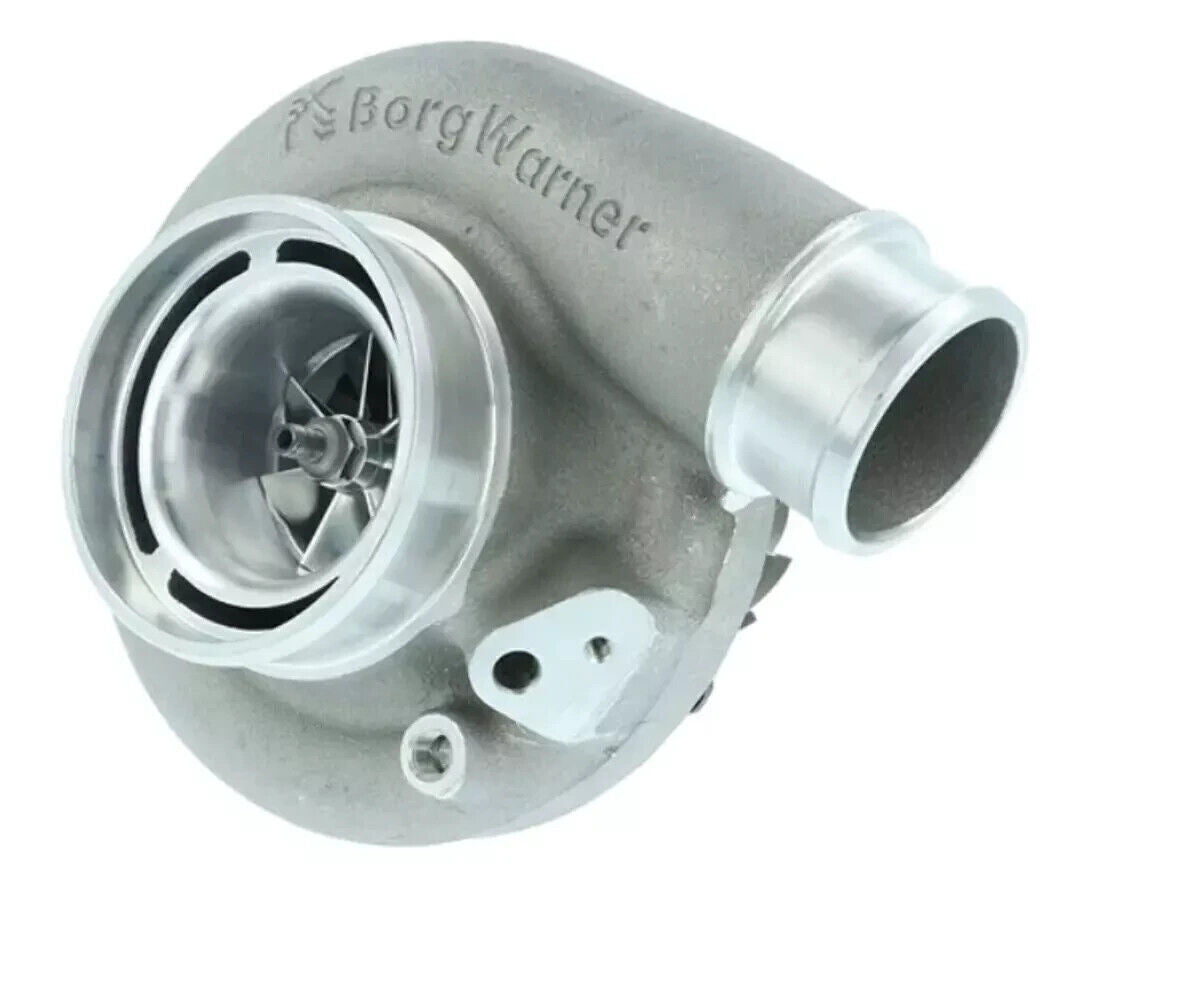

Up for sale is a BorgWarner Turbo Super Core Assembly S364.5 SX-E 8780 S300SX-E 64.5/74
which includes the Super Core & Compressor Cover
Specifications:
Compressor Wheel Inducer 64.47mm
Center Cartridge Journal Bearing
Compressor Housings 4.0" / 2.5"
Compressor Wheel OD (Exducer) 87.37mm
We can include the Turbine Housing of your choice at an additional cost, just message us after you have placed the order.
Turbine A/R Options:
0.88 A/R T4 Single Scroll
0.91 A/R T4 Twin Scroll
1.00 A/R T4 Twin Scroll
Please review BorgWarner's turbo systems warranty, they offer a 12 month limited warranty.
AirWerks Turbochargers Overview
AirWerks turbochargers are expertly crafted for motorsport enthusiasts, engine retrofits, and drivers seeking enhanced performance from factory turbocharged vehicles. Designed with a focus on drag racing, pulling, and road racing, they have earned a solid reputation for durability and high-performance capabilities. Whether you need a straightforward replacement, a turbocharger upgrade, or a compact solution for tight spaces, BorgWarner’s AirWerks series offers a reliable choice for various applications.
Performance and Design
Built with twin hydrodynamic journal bearings, AirWerks turbochargers deliver exceptional responsiveness, achieving over 70 PSI of boost. They feature a high-pressure compressor stage, extended-tip technology, and a highly efficient turbine stage, ensuring robust performance and reliability.
Borg Warner S364.5SX-E – 64.5mm Enhanced S300SX-E 8780 - 13009097055
Compressor Specifications:
Compressor Type: Forged-Milled Wheel (FMW) with Extended Tip
Compressor Wheel OD (Exducer): 87.37mm
Compressor Wheel Inducer: 64.47mm
Compressor Housing Connections:
Inlet: 4.0″ Hose Coupler
Outlet: 2.5″ Hose Coupler
Turbine Specifications:
Turbine Type: Inconel S300SX Turbine Wheel
Turbine Wheel OD: 73.37mm
Housing Material: D5S Sandcast
Housing Size and A/R ratio: The S300SX-E 8780 (S364.5) is offered in three turbine housing configurations:
- 0.88 A/R T4 Single Scroll
- 0.91 A/R T4 Twin Scroll
- 1.00 A/R T4 Twin Scroll
Turbine Outlet: 3″ Marmon or an optional 3″ V-Band
BorgWarner SX-E Turbo Features:
- Available as a complete turbocharger or as a Supercore (without turbine housing) for seamless retrofitting into existing Airwerks systems.
- Forged milled compressor wheels with optimized blade aerodynamics.
- Equipped with a new heavy-duty 360-degree thrust bearing.
- The compressor cover includes an integrated speed sensor port and pre-machined boost port.
- Compressor cover outlets provide flexible options – choose between coupler or v-band connections.
- Fully interchangeable with current Airwerks turbine housings for simple plug-and-play upgrades.
